Straightening apparatus for vehicle
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 1, 2021
Grant Date -
Jul 25, 2019
app pub date -
Sep 12, 2017
filing date -
Sep 12, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

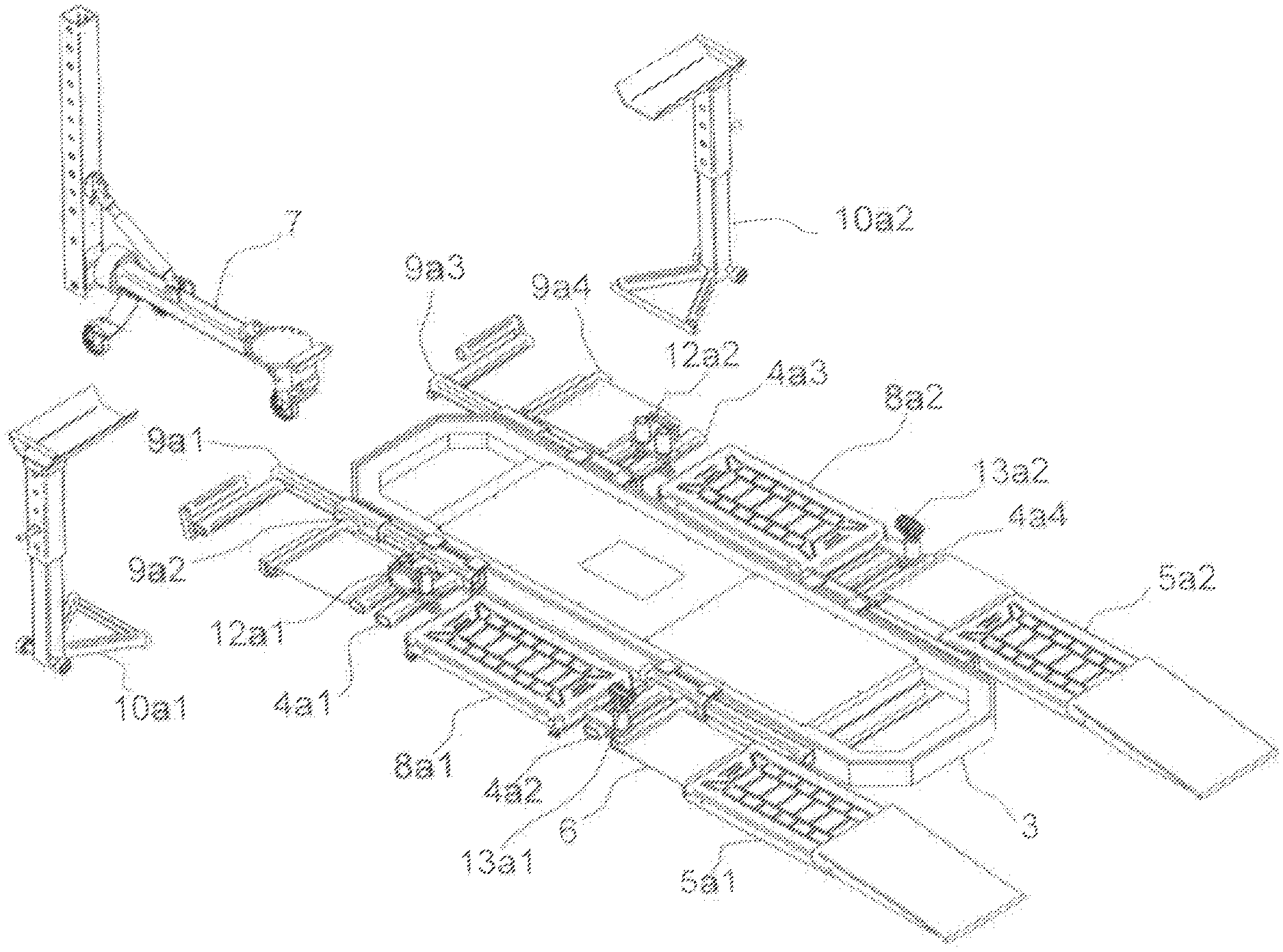

The invention relates to a straightening apparatus for a vehicle, including a frame (1), a lifting device (2) fastened to the frame, a straightening table (3) which is fastened to the lifting device and which has, on its sides, platforms (5a1, 5a2, 6, 8a1, 8a2, 5, 8) onto which the vehicle may be moved for the straightening work, and anchor beams (4a1, 4a2, 4a3, 4a4; 4) and fasteners (12a1, 12a2, 13a1, 13a2; 11, 12, 13) fastened to the anchor beams for fastening the vehicle to the straightening table for the straightening work, the anchor beams (4a1, 4a2, 4a3, 4a4; 4) being fixedly fastened to the gaps between the platforms (5a1, 5a2, 8a1, 8a2, 5, 6, 8) on the sides of the straightening table (3). The inventive straightening apparatus for a vehicle includes support devices (10a1, 10a2, 10) which are settable at vehicle wheels that are between the beams (9a1, 9a2 ja 9a3, 9a4) at the front pan of the straightening table, below them, when the straightening table is lifted to the working height and arranged to support the wheels as the straightening table and vehicle are lowered.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B21D Class
- 0 % this patent is cited more than
- 4 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Dec 1, 2024 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 1, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 1, 2032 |
