Method and apparatus for controlling milling roll machine
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 1, 2021
Grant Date -
Jun 13, 2019
app pub date -
Aug 8, 2017
filing date -
Aug 10, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

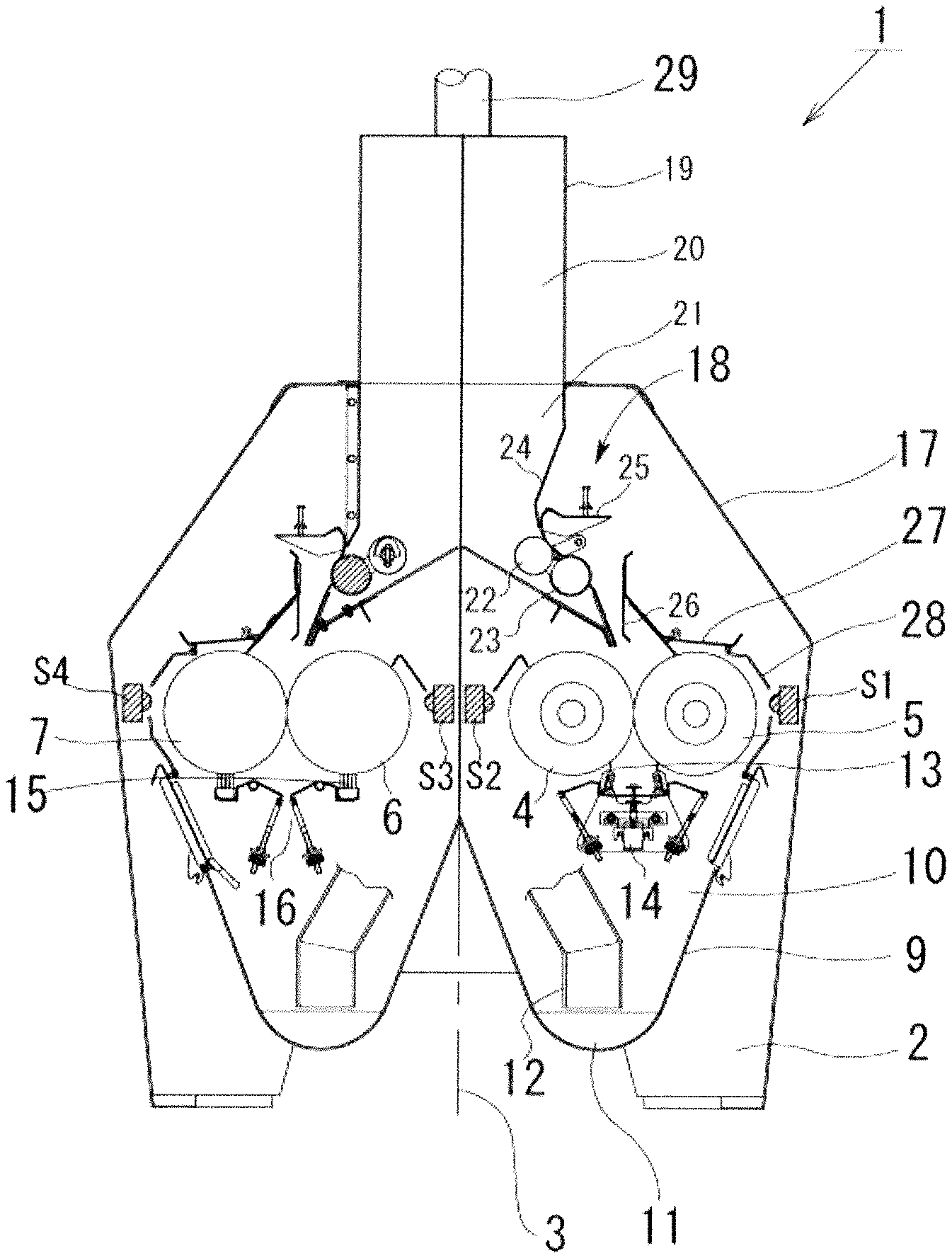

A method and an apparatus for controlling a milling roll machine capable of accurately monitoring a surface temperature of a roll and preventing a high temperature abnormality occurring on a roll surface from being overlooked are provided A temperature sensor S that monitors surface temperatures of a pair of rolls 4 and 5 and a temperature of a milled product after passing through the rolls is provided in the vicinity of the pair of rolls 4 and 5, and opening/closing control of the gap between the rolls 4 and 5 or flow rate control of the raw material stock is performed according to the surface temperatures of the rolls and the temperature of the milled product after passing through the rolls detected by the temperature sensor S.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- B02B Class
- 14 Applications Filed
- 8 Patents Issued To-Date
- 57.15 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B02B Class
- 81.48 % this patent is cited more than
- 4 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Dec 1, 2024 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 1, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 1, 2032 |
