Ice maker with three-branch pipe assembly
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 25, 2021
Grant Date -
Jul 11, 2019
app pub date -
Mar 18, 2019
filing date -
Sep 27, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

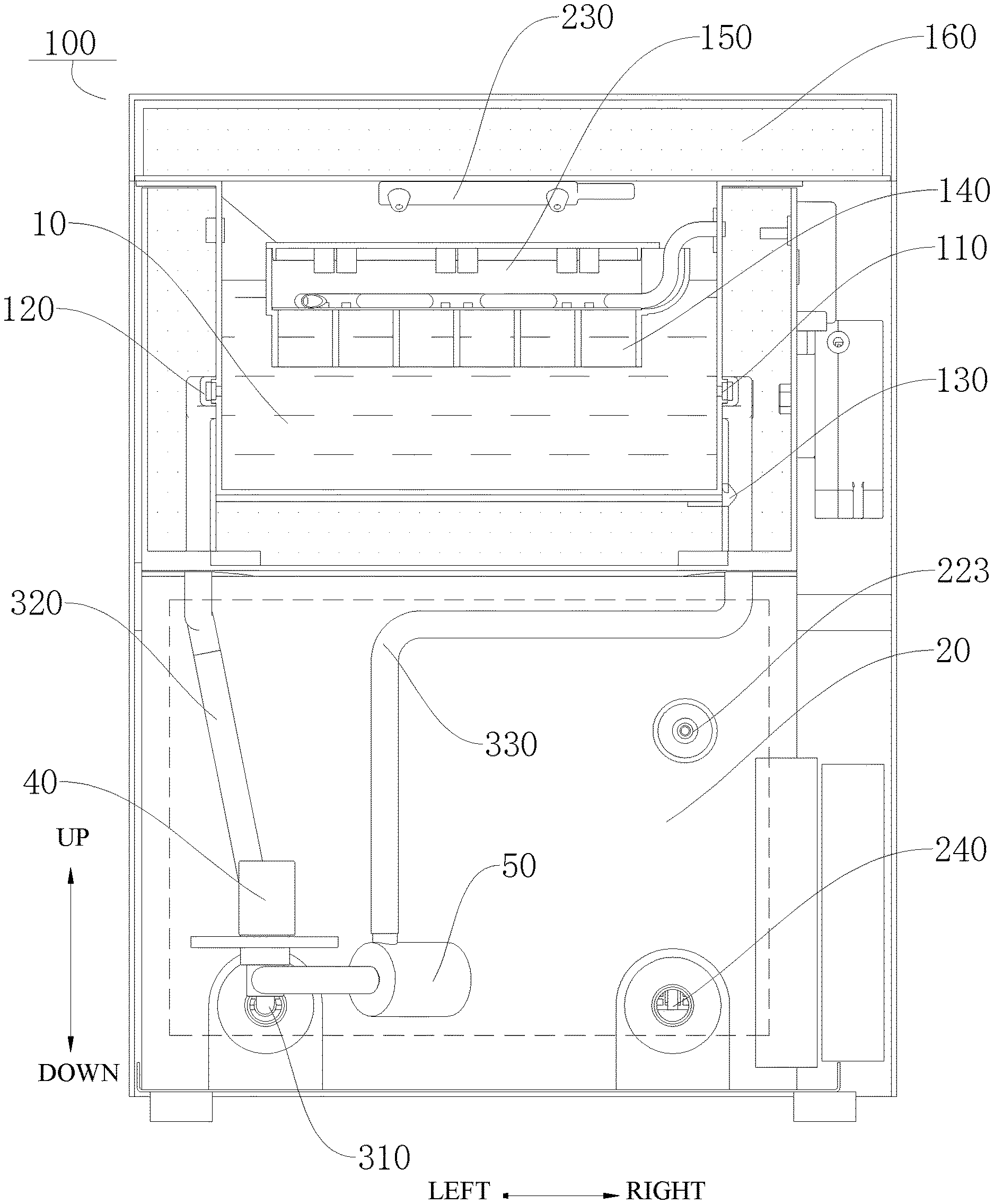

An ice maker (100) includes an ice-making water tank (10), a water storage tank (20), a pipe assembly, a reversing member (40), and a driving member (50). The pipe assembly comprises a first branch pipe (310), a second branch pipe (320), and a third branch pipe (330). The first branch pipe (310) is connected to the water storage tank (20). The second branch pipe (320) and the third branch pipe (330) are separately connected to the ice-making water tank (10). The reversing member (40) is separately connected to the three branch pipes to control two of the branch pipes to be communicated and the rest one of the branch pipes to disconnected. The driving member (50) is connected to the third branch pipe in series. During ice making, the reversing member (40) controls the second branch pipe (320) and the third branch pipe (330) to be communicated and controls the first branch pipe (310) to be disconnected. The driving member (50) operates to drive the water to circulate among the ice-making water tank (10), the second branch pipe (320) and the third branch pipe (330).
First Claim
Other Claims data not available
Family
International Classification(s)
- 2019 Application Filing Year
- F25C Class
- 243 Applications Filed
- 187 Patents Issued To-Date
- 76.96 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F25C Class
- 0 % this patent is cited more than
- 4 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Nov 25, 2024 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 25, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 25, 2032 |
