Polymer coatings with embedded hollow spheres for armor for blast and ballistic mitigation
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 18, 2021
Grant Date -
Apr 25, 2019
app pub date -
Dec 21, 2018
filing date -
Jun 26, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

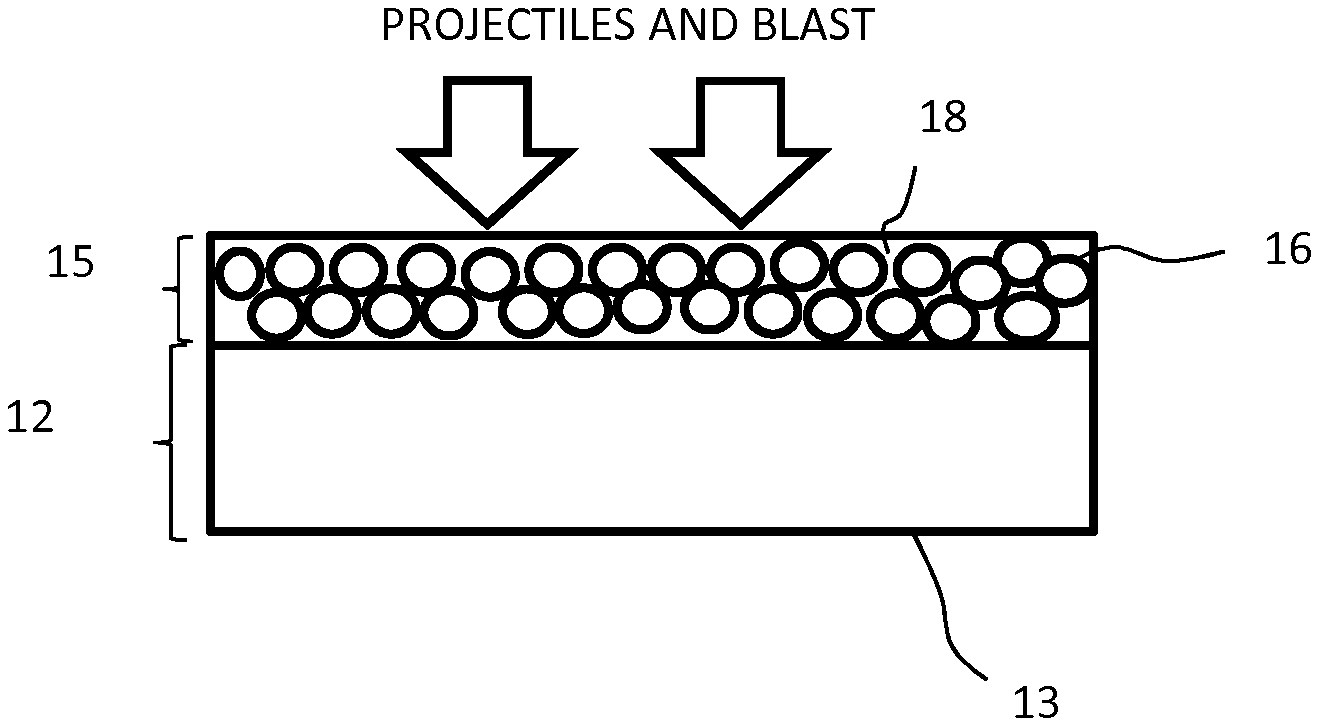

A lightweight armor system providing blast protection and ballistic protection against small arms fire, suitable for use in helmets, personnel or vehicle protection, and other armor systems. A hard substrate is coated on the front surface with a thin elastomeric polymer layer, in which hollow ceramic or metal spheres are encapsulated. The coating layer having a thin elastomeric polymer layer with encapsulated metal or ceramic hollow spheres can be stand-alone blast protection, or can be added to an underlying structure. The glass transition temperature of the polymer is preferably between negative fifty Celsius and zero Celsius.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2018 Application Filing Year
- F41H Class
- 324 Applications Filed
- 221 Patents Issued To-Date
- 68.21 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- F41H Class
- 40.95 % this patent is cited more than
- 4 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Nov 18, 2024 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 18, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 18, 2032 |
