Vehicular static eliminating device and vehicle
Number of patents in Portfolio can not be more than 2000
United States of America
Stats
-
Apr 27, 2021
Grant Date -
Jan 9, 2020
app pub date -
Jul 8, 2019
filing date -
Jul 8, 2019
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

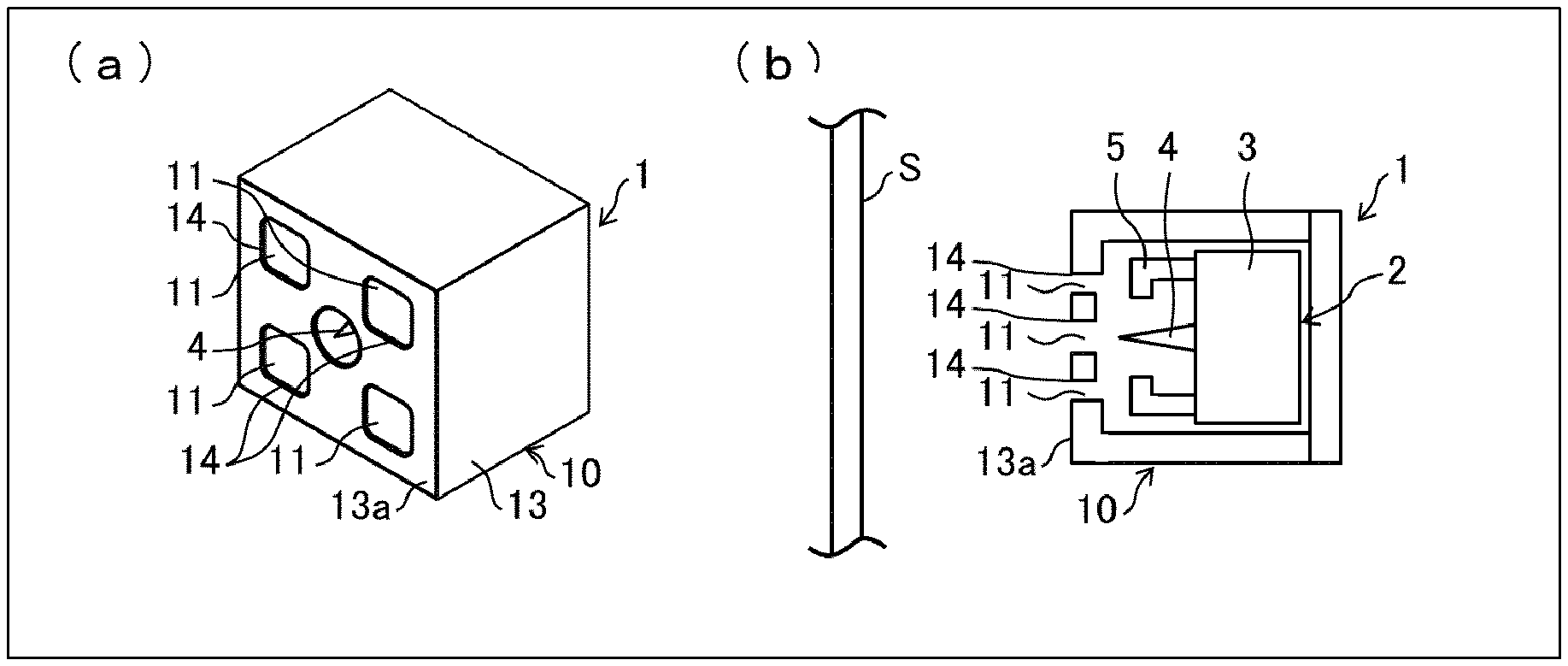

A vehicular static eliminating device includes: a negative ion generating device; and a guide device configured to guide negative ions and release the negative ions from an emission port to a static elimination target spot which is positively charged, the guide device including: a guide member defining a passage through which to guide the negative ions, the guide member being made of a resin which is easily negatively charged in a triboelectric series; and a tip-shaped part configured to discharge, by corona discharge, negative electric charges, which have accumulated on the guide member, to the static elimination target spot, the tip-shaped part being provided in a part defining the emission port and in proximity to the static elimination target spot.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2019 Application Filing Year
- B60K Class
- 2933 Applications Filed
- 2084 Patents Issued To-Date
- 71.06 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B60K Class
- 0 % this patent is cited more than
- 4 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Oct 27, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 27, 2032 |
