Non-stop tying-in process
Number of patents in Portfolio can not be more than 2000
United States of America
Stats
-
Apr 20, 2021
Grant Date -
Aug 2, 2018
app pub date -
Jan 29, 2018
filing date -
Jan 29, 2018
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

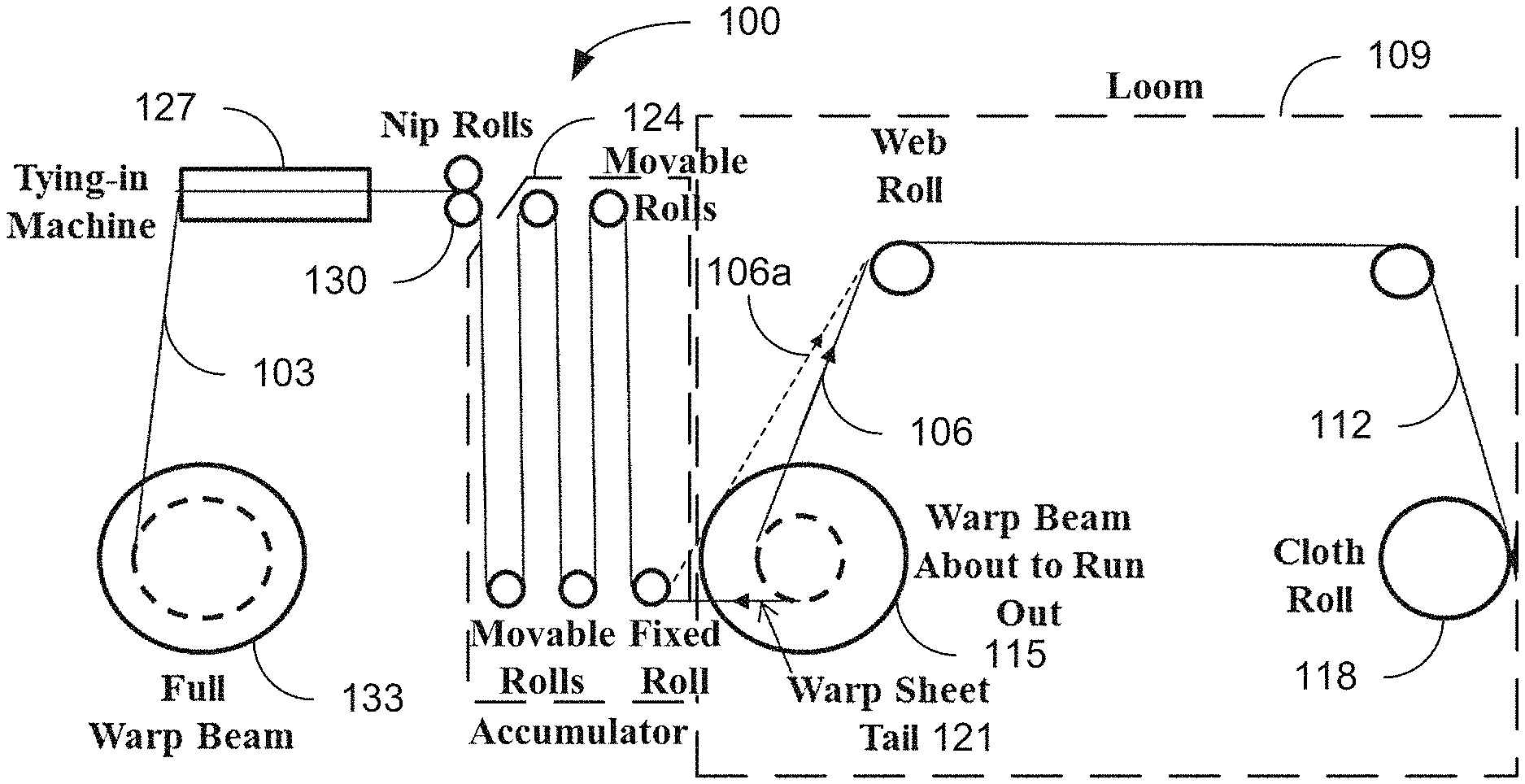

Various examples are provided for non-stop tying-in process for weaving of textiles. In one example, a method for non-stop tying-in of loom warps during operation of a loom includes providing free ends of a replacement warp sheet and a warp sheet tail to the tying-in machine during the operation of the loom, where the warp sheet tail is provided through a warp accumulator; accumulating the warp sheet tail in the warp accumulator during tying-in of the free ends; supplying at least a portion of the warp sheet tail accumulated by the warp accumulator to the loom after being released from a warp beam; removing the tied-in warp sheet tail and replacement warp sheet from the warp accumulator; and supplying the replacement warp sheet to the loom during its operation.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2018 Application Filing Year
- D03D Class
- 314 Applications Filed
- 195 Patents Issued To-Date
- 62.11 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- D03D Class
- 0 % this patent is cited more than
- 4 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Oct 20, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 20, 2032 |
