Apparatus and method for continuous production of materials
Number of patents in Portfolio can not be more than 2000
United States of America
Stats
-
N/A
Issued Date -
N/A
app pub date -
May 11, 2016
filing date -
May 11, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

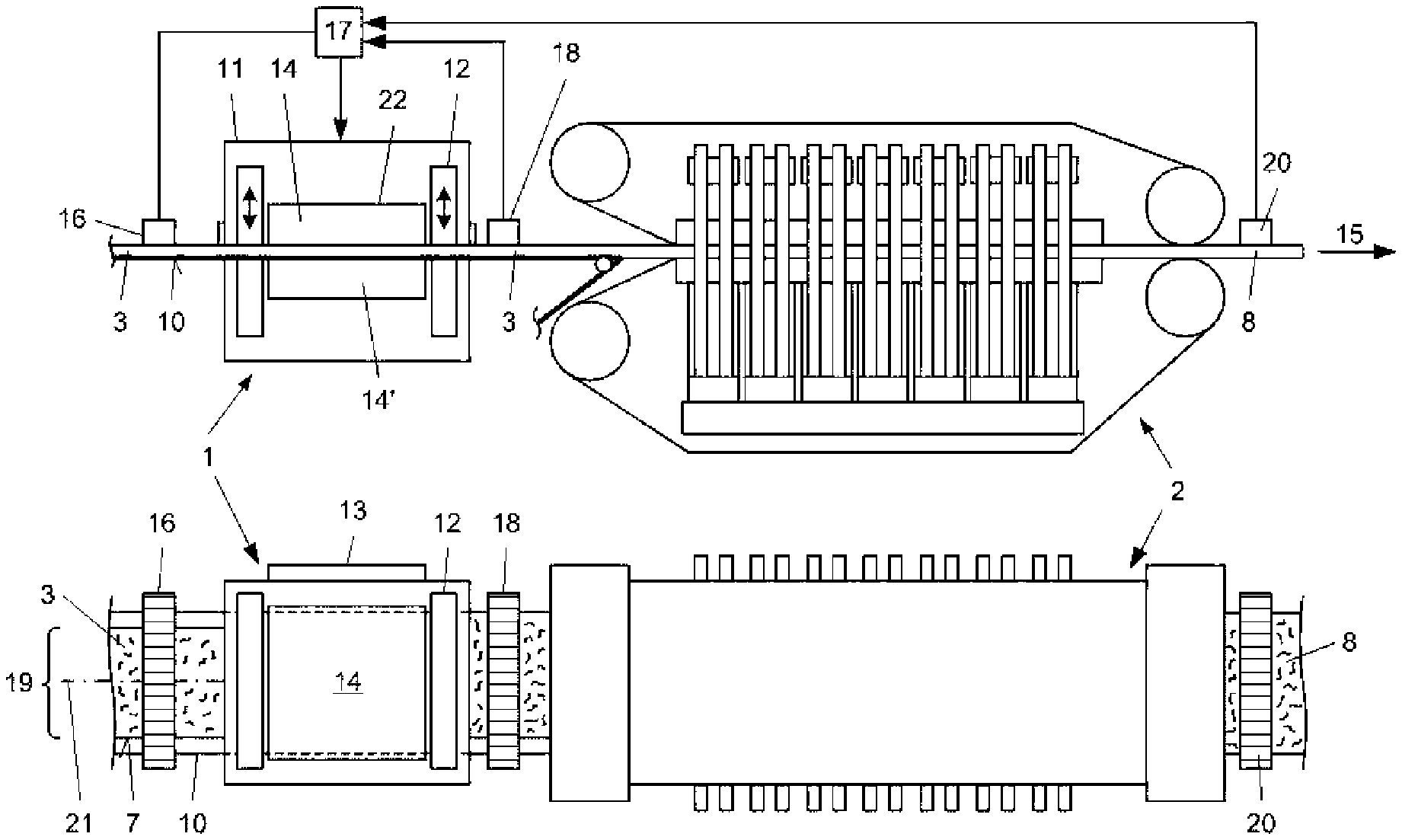

An apparatus and method for the continuous production of materials, preferably for producing material boards made of essentially non-metallic material, comprising
- a continuous furnace (1) for continuously heating material (3) on an endlessly circulating conveyor belt (10) anda press (2) provided downstream in the production direction (15),wherein the continuous furnace (1) comprises a plurality of magnetrons (4) for generating electromagnetic waves and hollow conductors (5) with outlet openings (6) for feeding the waves into a radiation chamber (14). The invention is intended to solve the problem of reacting to various operating modes for the continuous furnace and, in particular, to heat up the material used in the best possible manner for later pressing. The invention is characterized in that a control or regulating apparatus (17) is arranged for controlling individual or grouped magnetrons (4) in order to provide them with different powers (L) for producing a differentiated power profile (9), preferably in and/or transversely to the production direction (15). (1491)
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
- 2016 Application Filing Year
- H05B Class
- 3665 Applications Filed
- 2767 Patents Issued To-Date
- 75.50 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H05B Class
- 0 % this patent is cited more than
- 4 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Oct 6, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 6, 2032 |
