Enhanced virtual stereo reproduction for unmatched transaural loudspeaker systems
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 16, 2021
Grant Date -
N/A
app pub date -
Oct 1, 2019
filing date -
Nov 29, 2017
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

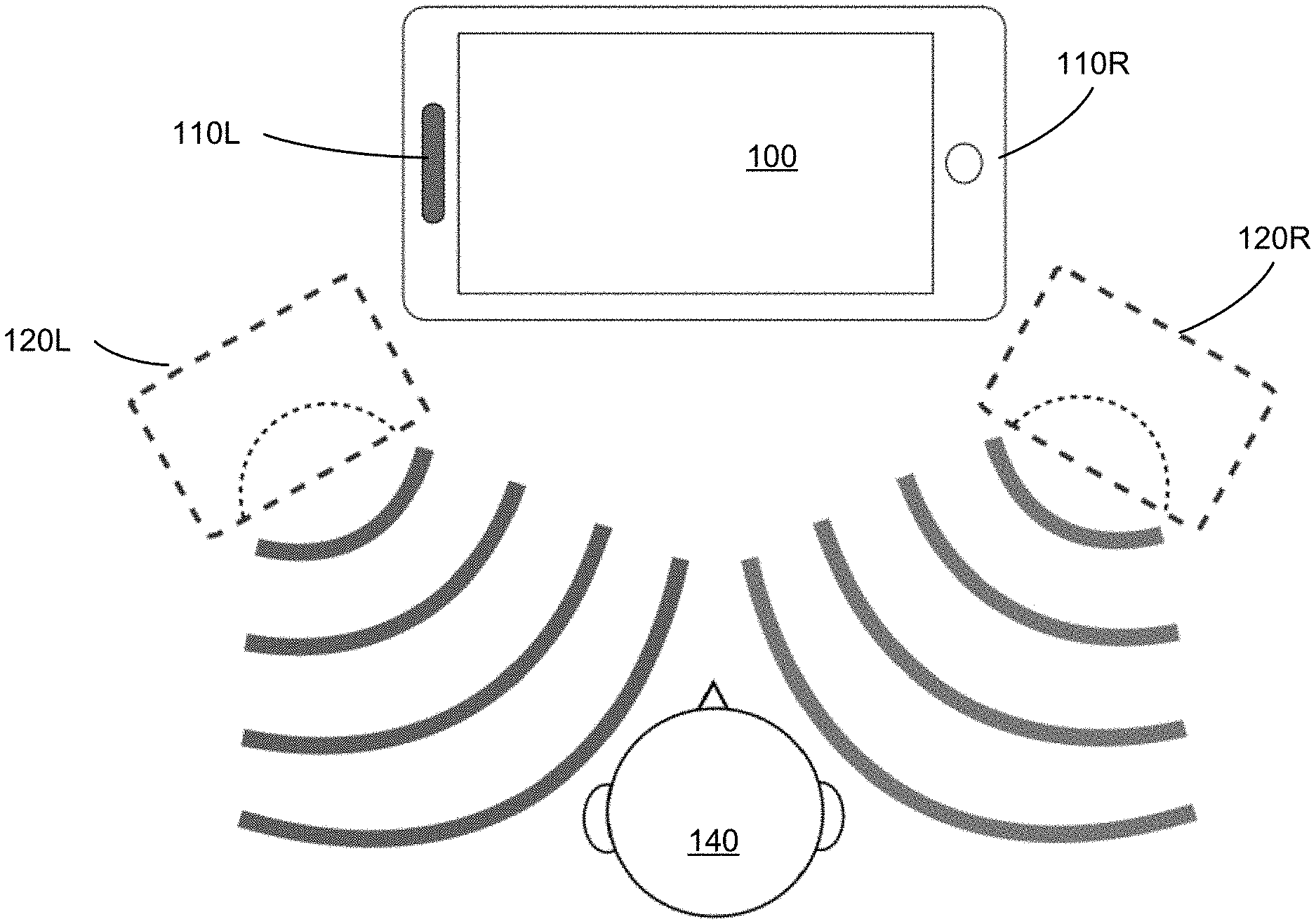

Embodiments relate to an audio processing system that adjusts for unmatched speakers, such as by frequency response, output power, directionality, etc. For example, a mobile device may include an earpiece speaker and a micro-loudspeaker. The audio processing system may include a crossover network that separates an input audio signal into a low frequency signal and a high frequency signal. Subband spatial processing and b-chain processing are applied to the high frequency signal to spatially enhance the input signal, and adjust the input signal for the unmatched speakers. The low frequency signal is processed using a parametric band-pass filter and a first gain to generate a low frequency resonator signal, and a second gain to generate a low frequency passthrough signal. The processed low frequency signals are provided to the micro-loudspeaker by combination with one of a left channel or a right channel of the processed high frequency signal.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2019 Application Filing Year
- H04S Class
- 789 Applications Filed
- 581 Patents Issued To-Date
- 73.64 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H04S Class
- 0 % this patent is cited more than
- 4 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 16, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 16, 2032 |
