Ignition apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 16, 2021
Grant Date -
May 2, 2019
app pub date -
Mar 30, 2018
filing date -
Oct 26, 2017
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

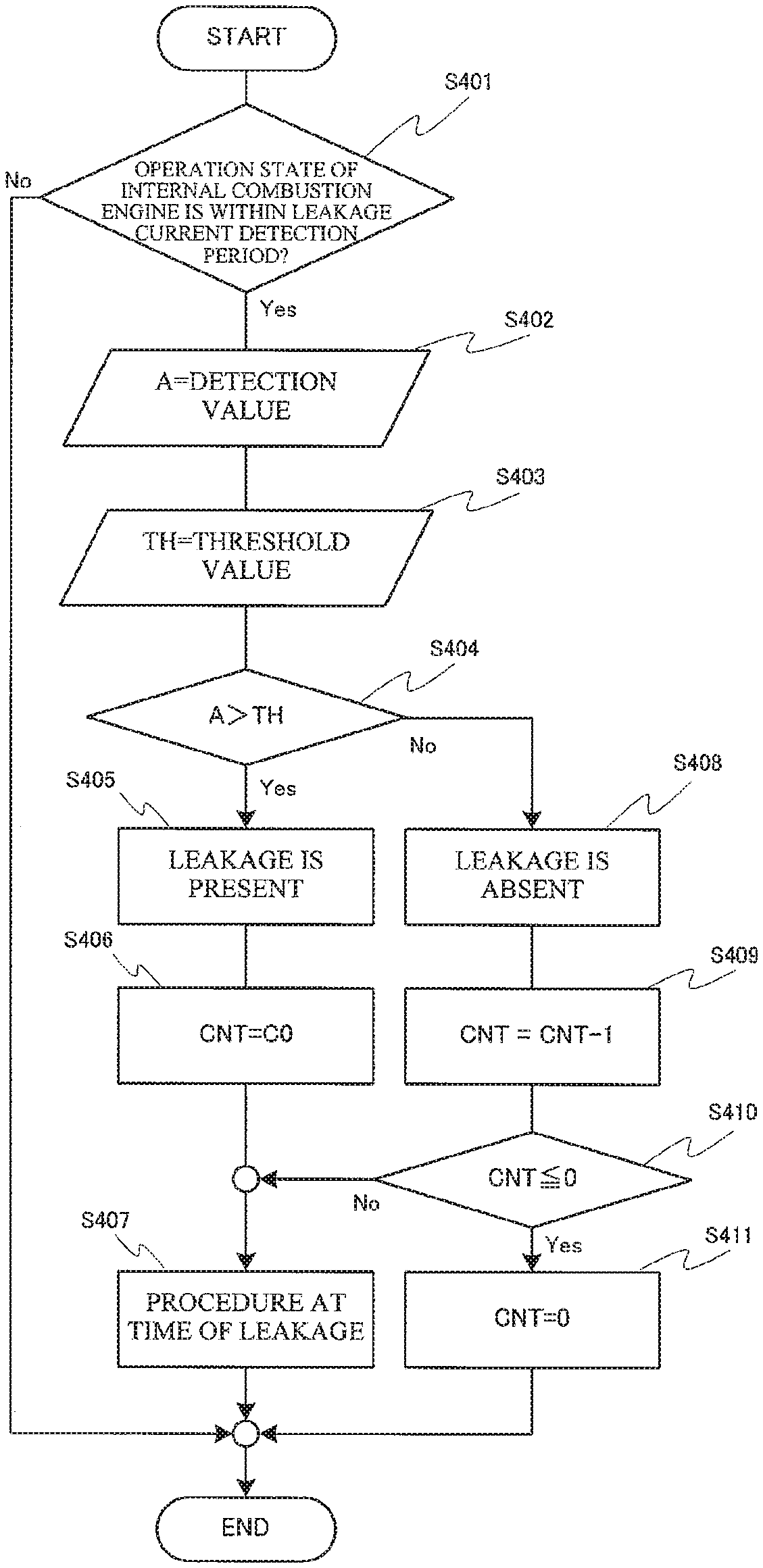

The ignition apparatus includes: an ignition plug; a plurality of high voltage devices each configured to generate the high voltage and apply the high voltage between the first electrode and the second electrode; a leakage current detection device configured to detect a leakage current flowing between the first electrode and the second electrode; and a control device configured to control respective operations of the plurality of high voltage devices and the leakage current detection device. When the control device determines that leakage is present between the first electrode and the second electrode based on the leakage current detected by the leakage current detection device, the control device causes each of the plurality of high voltage devices to apply the high voltage between the first electrode and the second electrode at the same period.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2018 Application Filing Year
- F02P Class
- 240 Applications Filed
- 177 Patents Issued To-Date
- 73.75 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- F02P Class
- 64.29 % this patent is cited more than
- 4 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 16, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 16, 2032 |
