Precision gun Smith platform
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 9, 2021
Grant Date -
Jun 6, 2019
app pub date -
Feb 1, 2019
filing date -
Jun 28, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

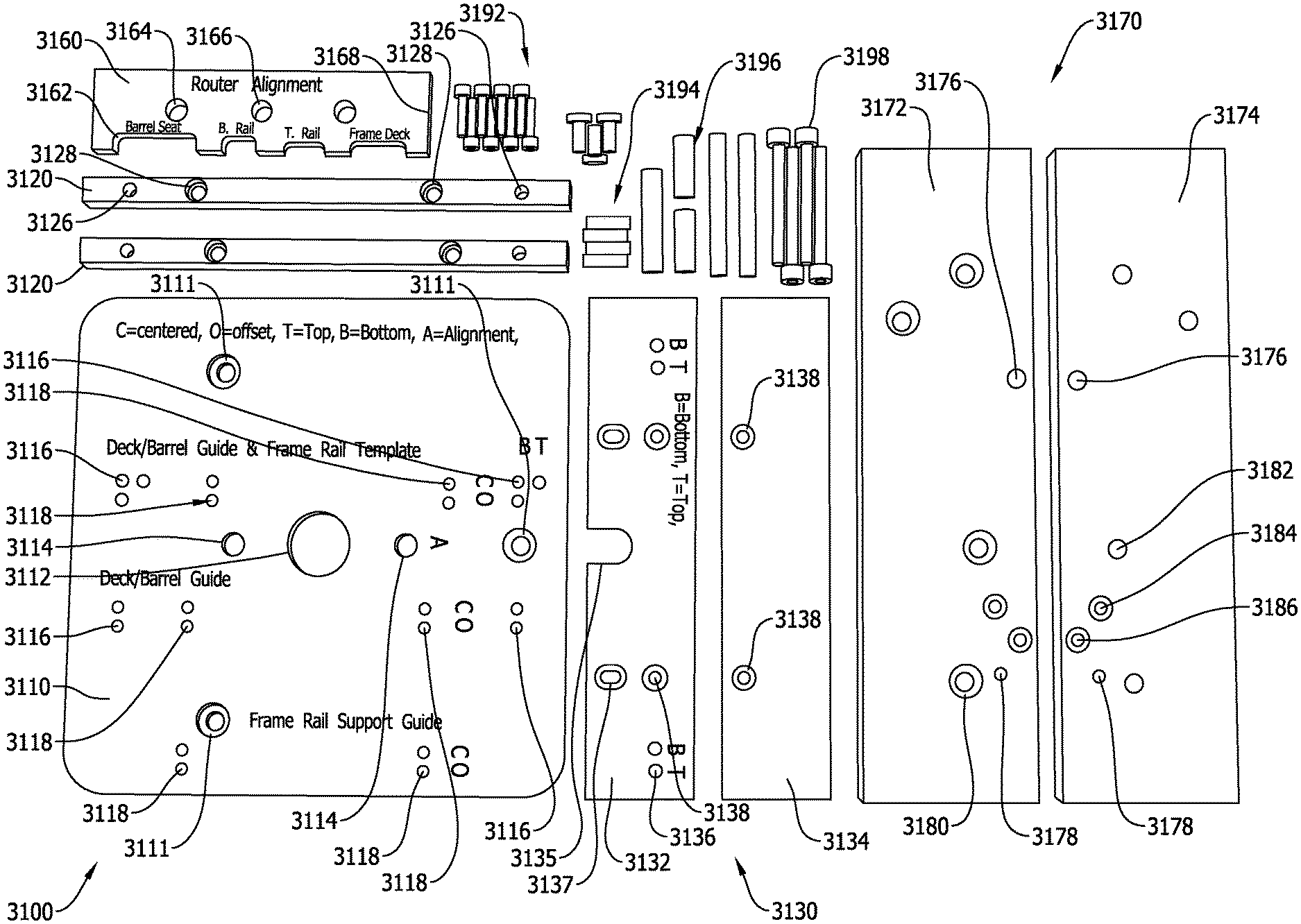

A jig for finishing a workpiece with a handheld router or other handheld motor-driven rotational tool assembly is provided. The jig includes a baseplate that is precisely aligned and attached to a router. Guides, including a main guide and a support guide, are provided. The main guide is configured to precisely align with and fasten to the base plate in several different jig configurations. Right-angle adaptors attach to the guides and precisely align with and attach to the guides and the base plate to form several different jig configurations. Side plates secure the workpiece therebetween and provide a surface along which the main guide may slide to facilitate finishing operations on the workpiece.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2019 Application Filing Year
- B23Q Class
- 660 Applications Filed
- 454 Patents Issued To-Date
- 68.79 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B23Q Class
- 69.00 % this patent is cited more than
- 4 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 9, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 9, 2032 |
