Multi-bar linkage electric drive system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 2, 2021
Grant Date -
N/A
app pub date -
Sep 19, 2019
filing date -
Sep 13, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

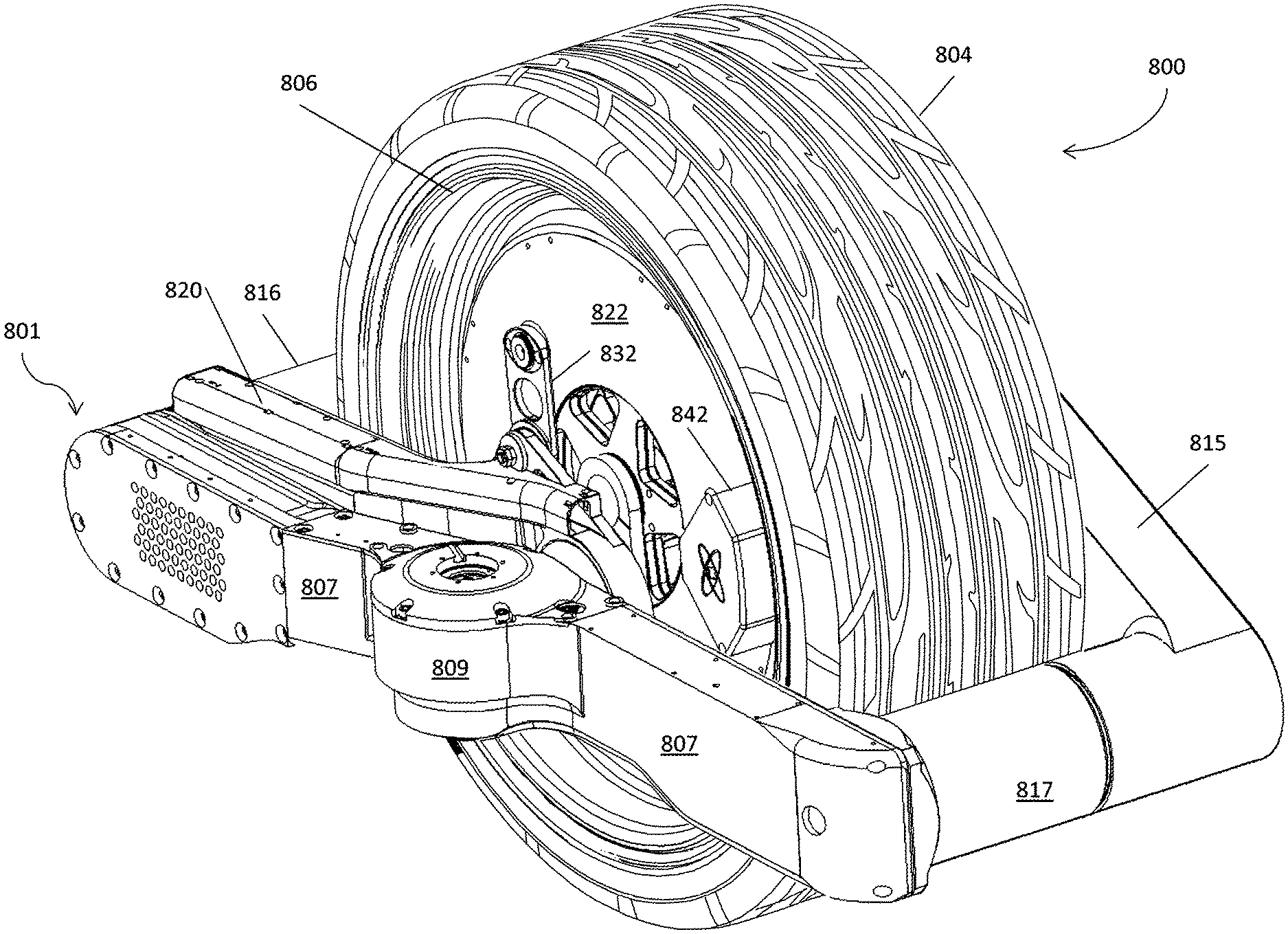

An electric drive system including: a rotary motor system including a hub assembly, a first rotating assembly, a second rotating assembly, and a third rotating assembly, wherein the hub assembly defines a rotational axis about which the first rotating assembly, the second rotating assembly, and the third rotating assembly are coaxially aligned and are capable of independent rotational movement independent of each other; a multi-bar linkage mechanism connected to each of the first and third rotating assemblies and connected to the hub assembly and constraining movement of the hub assembly so that the rotational axis of the hub assembly moves along a defined path that is in a transverse direction relative to the rotational axis and wherein the multi-bar linkage mechanism causes the rotational axis of the hub assembly to translate along the defined path in response to relative rotation of the first rotating assembly and the third rotating assembly with respect to each other.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2019 Application Filing Year
- H02K Class
- 3215 Applications Filed
- 2232 Patents Issued To-Date
- 69.43 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 5 Citation Count
- H02K Class
- 59.08 % this patent is cited more than
- 4 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 2, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 2, 2032 |
