Unmanned aerial vehicle charging station with centering mechanism
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 2, 2021
Grant Date -
May 31, 2018
app pub date -
Nov 28, 2017
filing date -
Nov 29, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

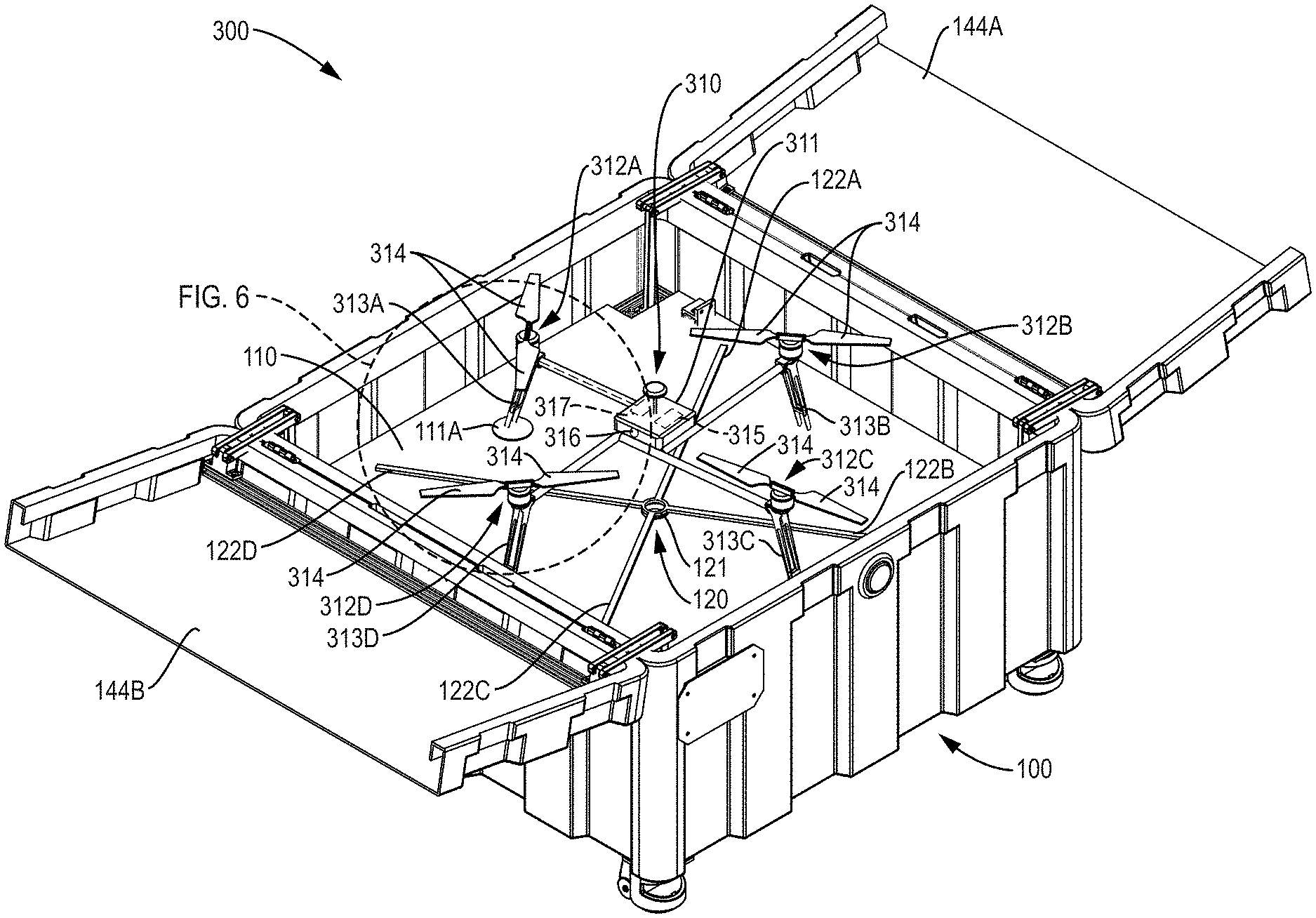

A charging station for an unmanned aerial vehicle includes a landing surface having a first charging terminal formed of a first electrically conductive material, a second charging terminal formed of a second electrically conductive material and spaced apart from the first charging terminal, and an electrically insulating material disposed between the first charging terminal and the second charging terminal. A centering wheel is rotatably associated with the landing surface and has a center hub and spokes extending from the center hub. A rotator coupled to the centering wheel can rotate the centering wheel to align the unmanned aerial vehicle with the first charging terminal and the second charging terminal.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- B64F Class
- 607 Applications Filed
- 421 Patents Issued To-Date
- 69.36 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 7 Citation Count
- B64F Class
- 63.83 % this patent is cited more than
- 4 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 2, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 2, 2032 |
