Bicycle with compliant seat post interface
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 16, 2021
Grant Date -
Oct 10, 2019
app pub date -
Apr 6, 2018
filing date -
Apr 6, 2018
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

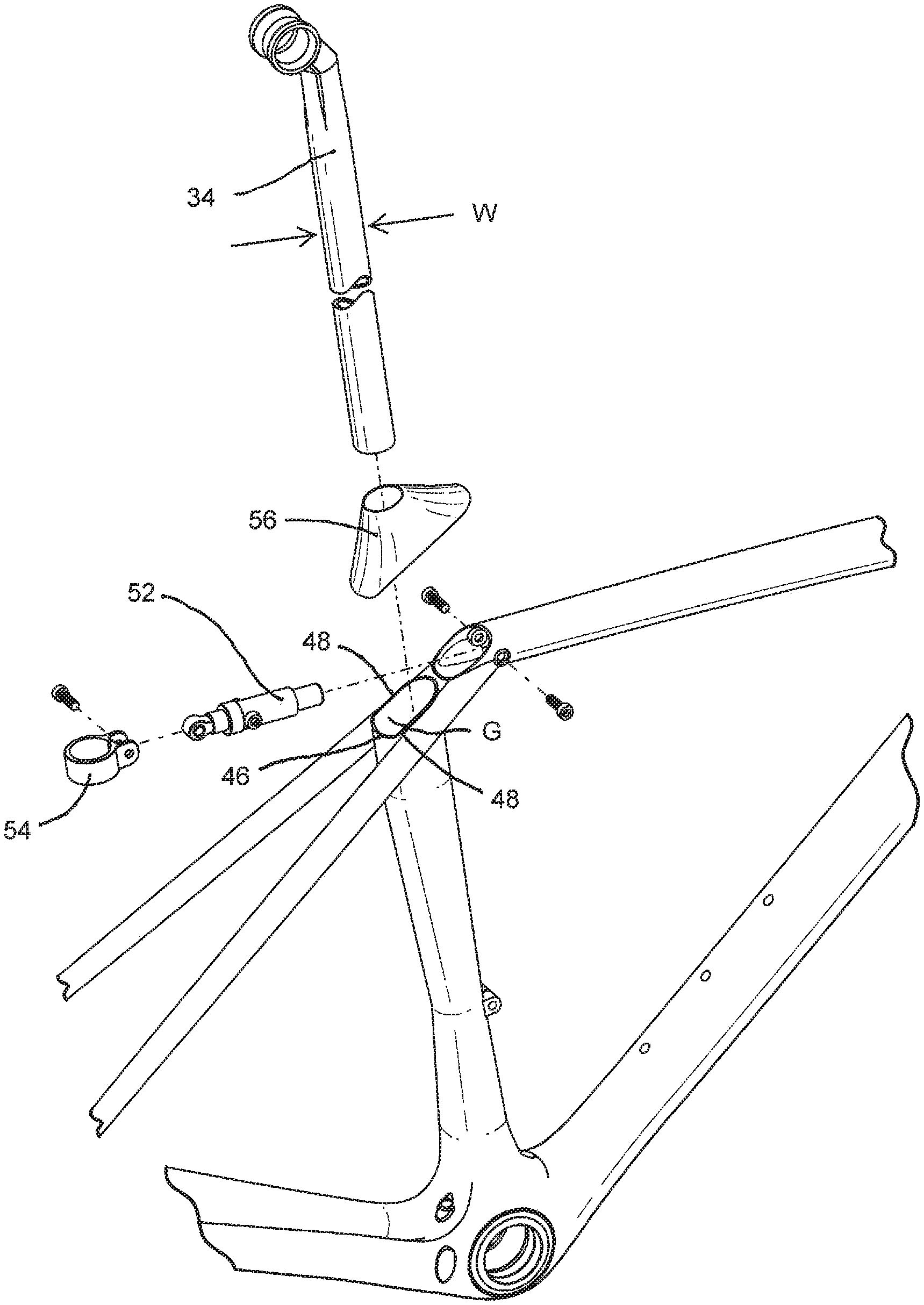

A bicycle comprises front and rear wheels, a frame, a seat post, and a damping member. An upper portion of the seat post is movable relative to the frame between a first position and a second position. The damping member couples the seat post to the frame to dampen movement of the upper portion of the seat post. The damping member can be positioned at least partially in a top tube of the frame. Preferably, the seat post flexes when the upper portion of the seat post moves. The frame further includes a securing location for securing the seat post, and the securing location is a distance from the upper end of the seat tube that is at least 30% of a length of a seat tube. The seat post has a front-to-rear width, and the seat tube has a rear wall spaced from the seat post by a gap that is at least 25% of a front-to-rear width of the seat post.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2018 Application Filing Year
- B62J Class
- 447 Applications Filed
- 335 Patents Issued To-Date
- 74.95 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- B62J Class
- 45.03 % this patent is cited more than
- 4 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 16, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 16, 2032 |
