System and method for recompressing round bales into square bales
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 9, 2021
Grant Date -
Apr 4, 2019
app pub date -
Sep 20, 2018
filing date -
Oct 2, 2017
priority date (Note) -
In Force
status (Latency Note)
Importance

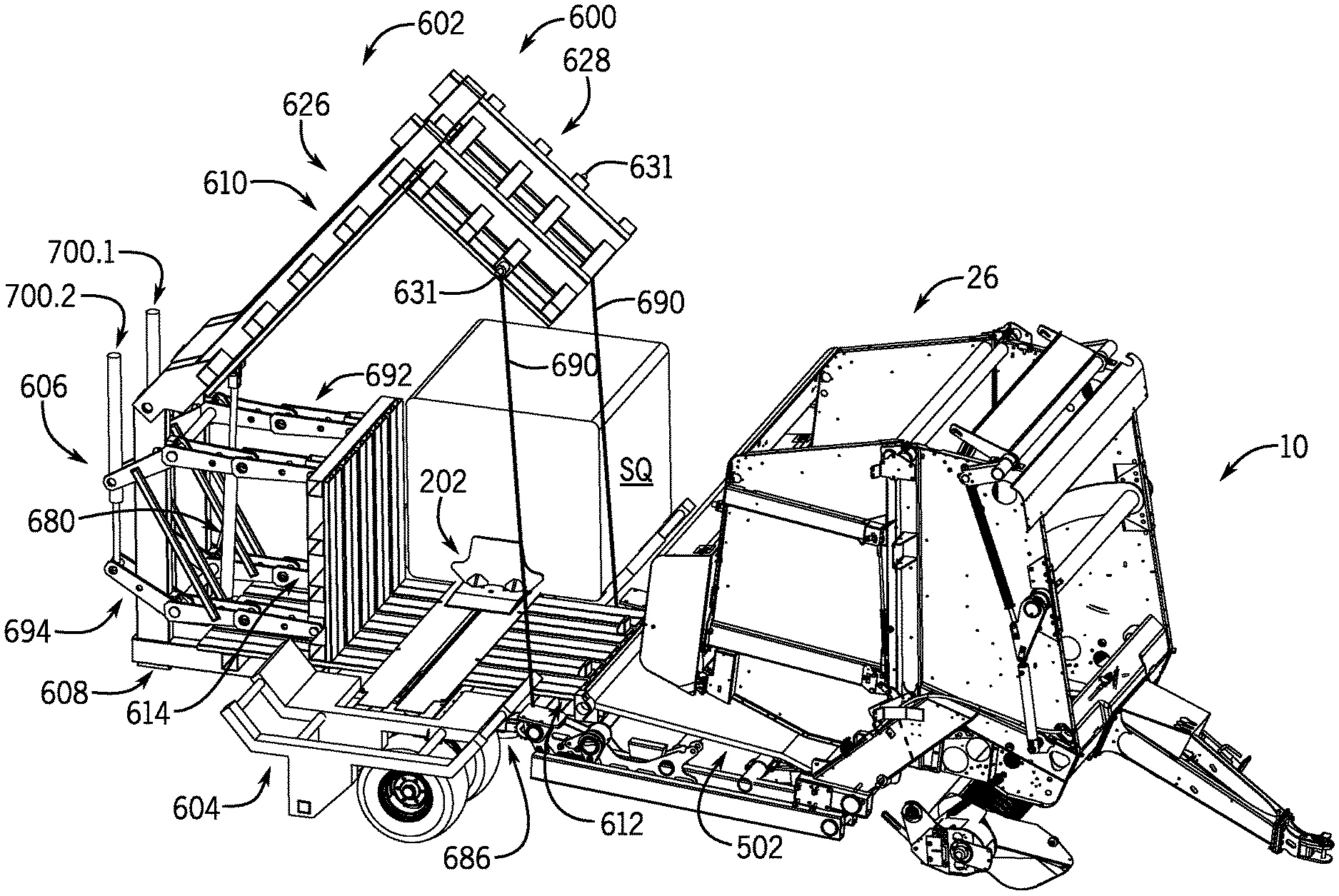

Abstract
An actuation system for moving a movable platen of a bale recompression system includes one or more actuators, a first scissors linkage, a second scissors linkage and a cross-member. The first scissors linkage has a first link end coupled to a frame of the bale recompression system and has a second link end coupled to the movable platen. The second scissors linkage has a third link end coupled to the frame and has a fourth link end coupled to the movable platen. The cross-member interconnects the first scissors linkage and the second scissors linkage. Actuation of the one or more actuator pivots the first link end of the first scissors linkage and the third link end of the second scissors linkage relative to the frame and translates the movable platen from a first position to a second position. The first scissors linkage and the second scissors linkage are configured to maintain a fixed orientation of the movable platen in the first position and in the second position.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F16C Class
- 0 % this patent is cited more than
- 4 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 9, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 9, 2032 |
