High performance induction plasma torch
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 12, 2021
Grant Date -
Nov 3, 2016
app pub date -
Jun 9, 2016
filing date -
Feb 3, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

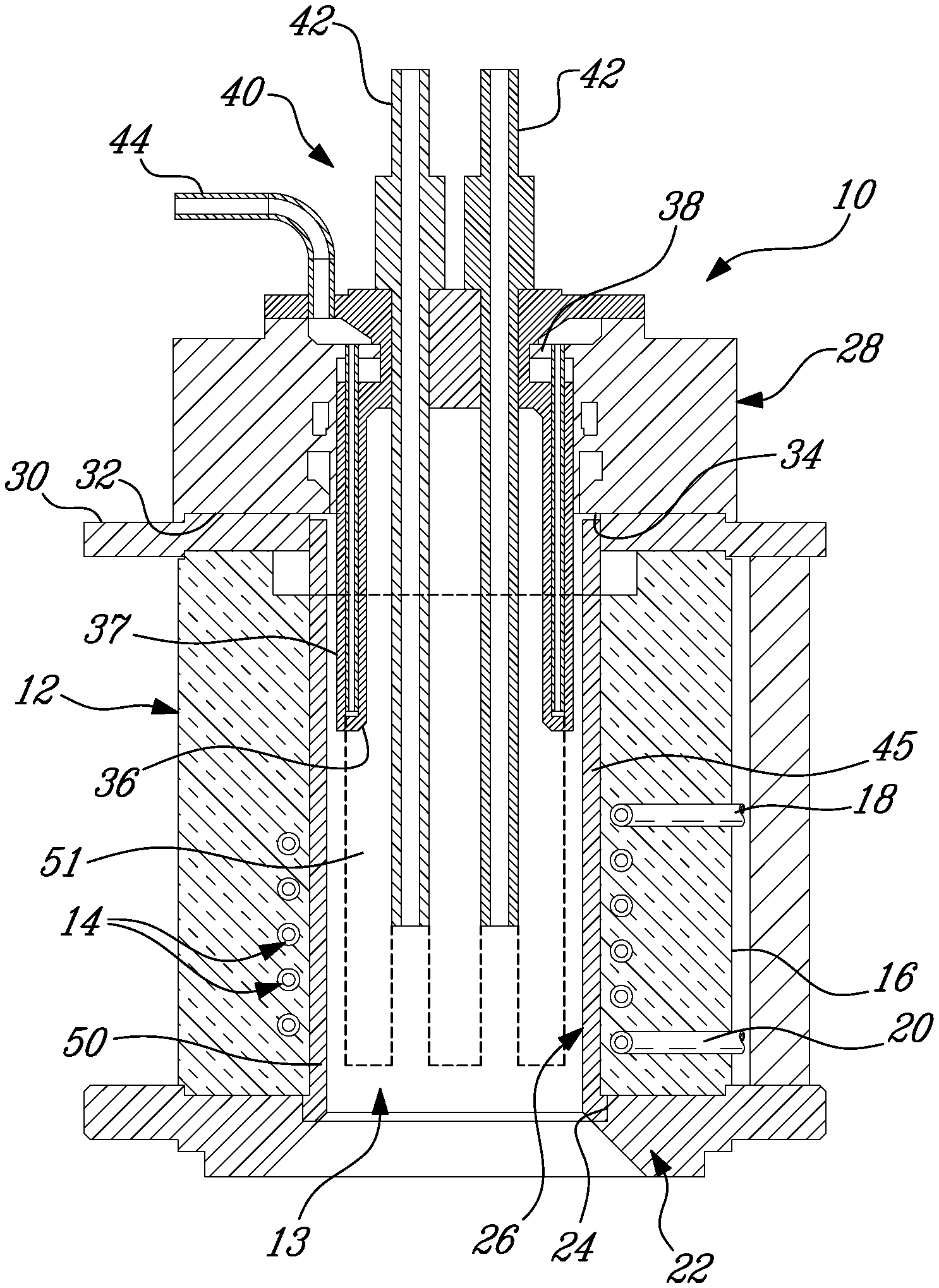

An induction plasma torch comprises a tubular torch body, a plasma confinement tube disposed in the tubular torch body coaxial therewith, a gas distributor head disposed at one end of the plasma confinement tube and structured to supply at least one gaseous substance into the plasma confinement tube; an inductive coupling member embedded within the tubular torch body for applying energy to the gaseous substance to produce and sustain plasma in the plasma confinement tube, and an electrically conductive capacitive shield on an inner surface of the tubular torch body. The capacitive shield is segmented into axial strips interconnected at one end. Axial grooves are machined in the inner surface of the tubular torch body, the axial grooves being interposed between the axial strips.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- H05H Class
- 321 Applications Filed
- 229 Patents Issued To-Date
- 71.34 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H05H Class
- 0 % this patent is cited more than
- 4 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 12, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 12, 2032 |
