Sewing machine
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 29, 2020
Grant Date -
Dec 20, 2018
app pub date -
May 1, 2018
filing date -
Jun 16, 2017
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

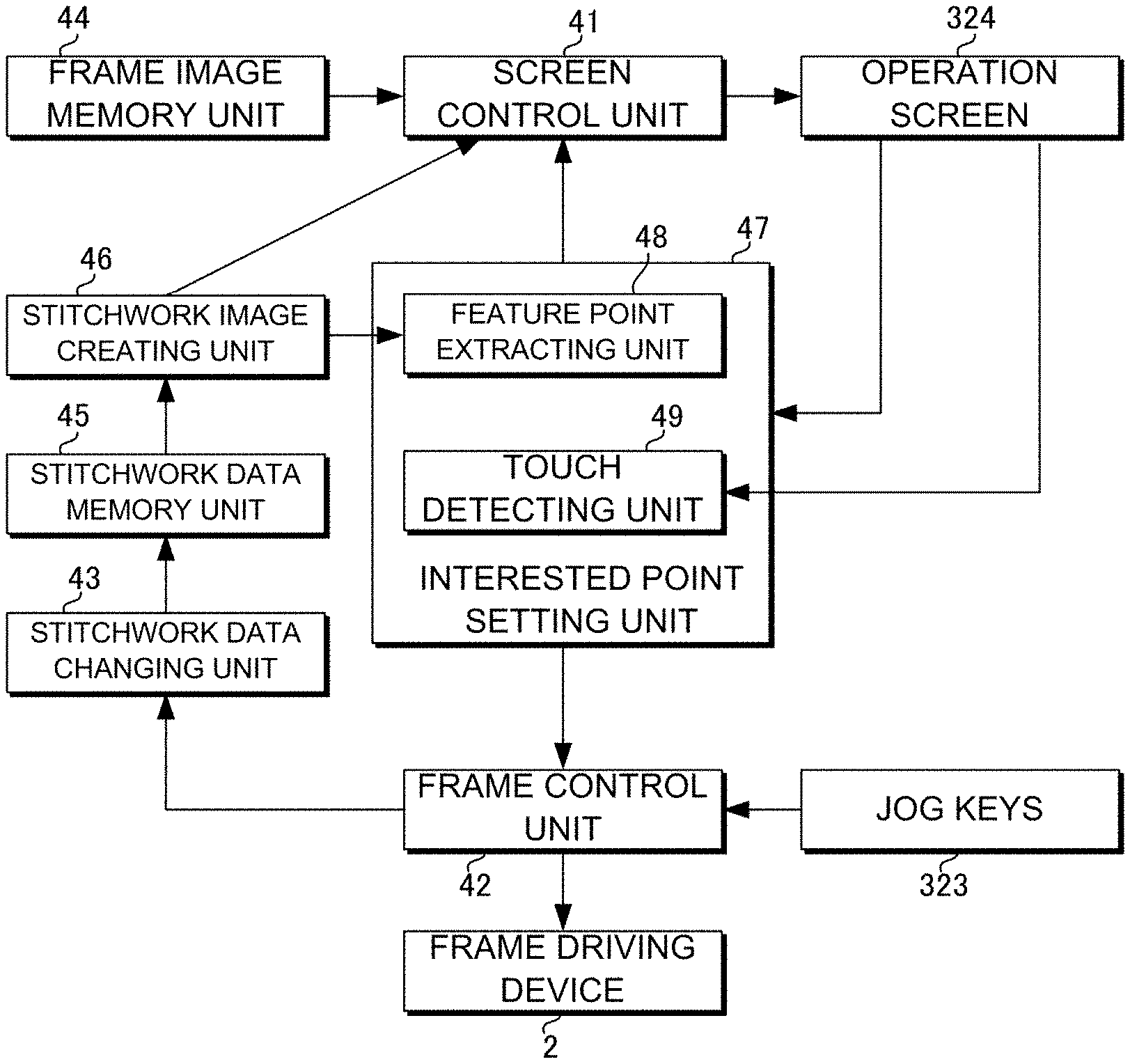

A sewing machine that sews an embroidery pattern on a sewing object includes an embroidery frame horizontally moving along a direction which a frame surface extends, a needle bar supporting a needle for inserting a thread, and reciprocally moving toward an internal space of the embroidery frame, a memory unit storing image data of the embroidery frame, and embroidery data of the embroidery pattern, and a display unit displaying an image of the embroidery frame, an image of the embroidery pattern within the image of the embroidery frame, and a feature point with a positional relation between the embroidery pattern, and the embroidery frame when actually sewn in accordance with the embroidery data.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2018 Application Filing Year
- D05C Class
- 76 Applications Filed
- 51 Patents Issued To-Date
- 67.11 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- D05C Class
- 53.52 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 29, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 29, 2032 |
