Vapor cells having one or more optical windows bonded to a dielectric body
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 8, 2020
Grant Date -
N/A
app pub date -
Oct 21, 2019
filing date -
Oct 21, 2019
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

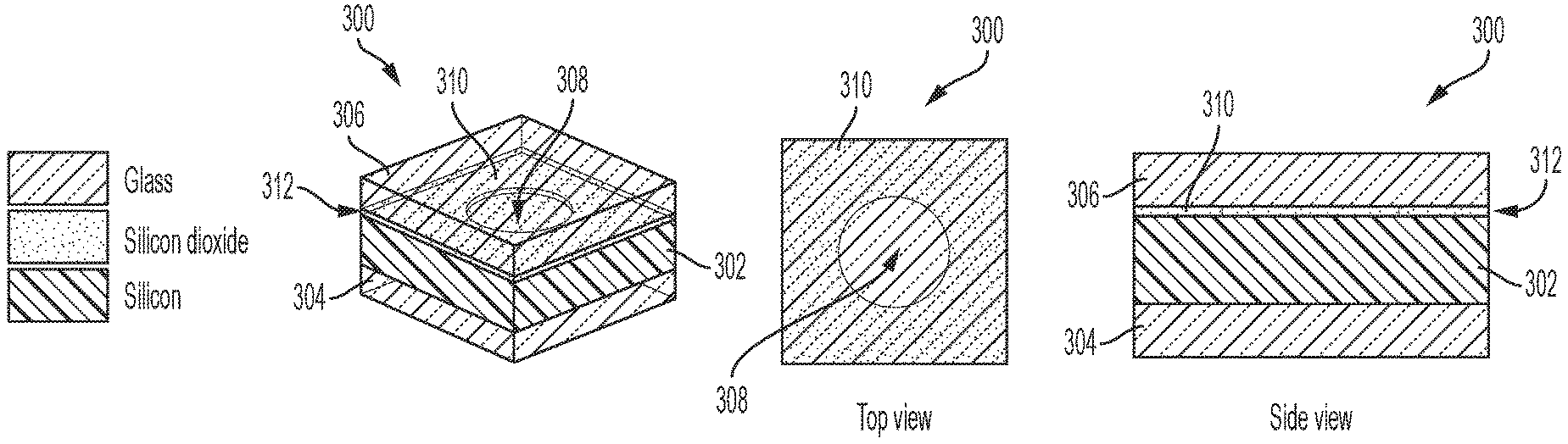

In a general aspect, a vapor cell is presented that includes a dielectric body. The dielectric body has a surface that defines an opening to a cavity in the dielectric body. The vapor cell also includes a vapor or a source of the vapor in the cavity of the dielectric body. An optical window covers the opening of the cavity and has a surface bonded to the surface of the dielectric body to form a seal around the opening. The seal includes metal-oxygen bonds formed by reacting a first plurality of hydroxyl ligands on the surface of the dielectric body with a second plurality of hydroxyl ligands on the surface of the optical window.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
- 2019 Application Filing Year
- C03C Class
- 943 Applications Filed
- 575 Patents Issued To-Date
- 60.98 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 24 Citation Count
- C03C Class
- 99.28 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 8, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 8, 2032 |
