Core sampler with impregnation windows and method for stabilization of unconsolidated sediment in core samples
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 8, 2020
Grant Date -
Jul 11, 2019
app pub date -
Jan 10, 2018
filing date -
Jan 10, 2018
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

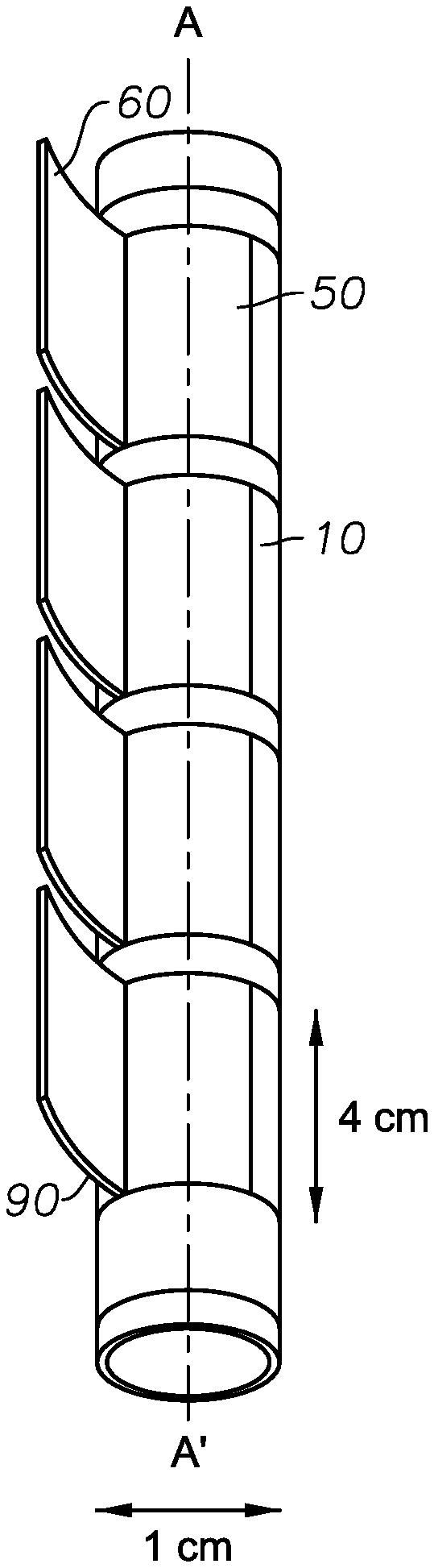

A core sampling apparatus includes an inner tube configured to collect a core sample by means of a core catcher attached to one end of the core sampling apparatus, and an outer tube co-axially disposed on the outside of the inner tube, wherein the inner tube includes a plurality of impregnation windows configured to allow resin to flow into the core sample, each window including a window opening and a window cover configured to cover the window opening. A method for sampling a core includes extracting a core sample using a core sampler, transporting the inner tube containing the core sample to the surface, impregnating the core sample with a resin by allowing the resin to flow into the core sample through a plurality of impregnation windows formed on the inner tube, and allowing for the resin to cure, thereby stabilizing unconsolidated sediment in the core sample.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2018 Application Filing Year
- E02D Class
- 424 Applications Filed
- 306 Patents Issued To-Date
- 72.17 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- E02D Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 8, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 8, 2032 |
