Anaerobic reactor
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 10, 2020
Grant Date -
Aug 29, 2019
app pub date -
Jun 13, 2017
filing date -
Jun 13, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

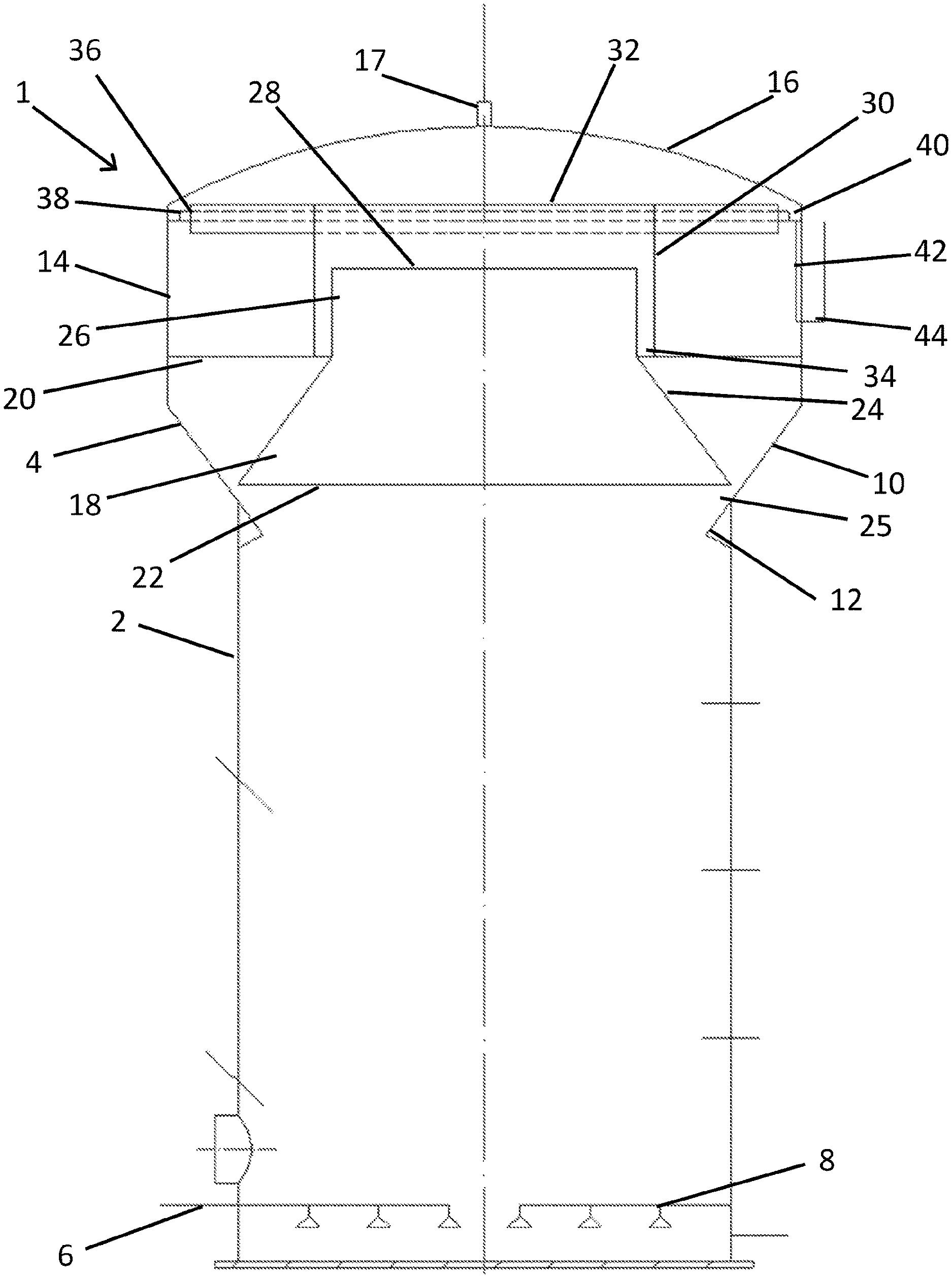

An anaerobic reactor (1) for treating waste water includes a reaction vessel (2) and a three phase separator (4) above the reaction vessel and arranged to receive effluent from the reaction vessel. The three phase separator includes an outer wall (10, 14) connected at its bottom to the top of the reaction vessel and a liquid outlet (42), a lid (16) closing the top of the outer wall. The lid has a gas outlet (17) above the level of the liquid outlet. The three phase separator also includes a funnel (18) arranged above the reaction vessel, a guide wall (30) spaced from and arranged radially outward of the funnel so to surround an upper aperture of the funnel and a baffle wall (36) spaced from and arranged between the guide wall and the liquid outlet.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- C12M Class
- 1027 Applications Filed
- 610 Patents Issued To-Date
- 59.40 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- C12M Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 10, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 10, 2032 |
