Safety device for tackers
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 27, 2020
Grant Date -
Sep 28, 2017
app pub date -
Mar 22, 2016
filing date -
Mar 22, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

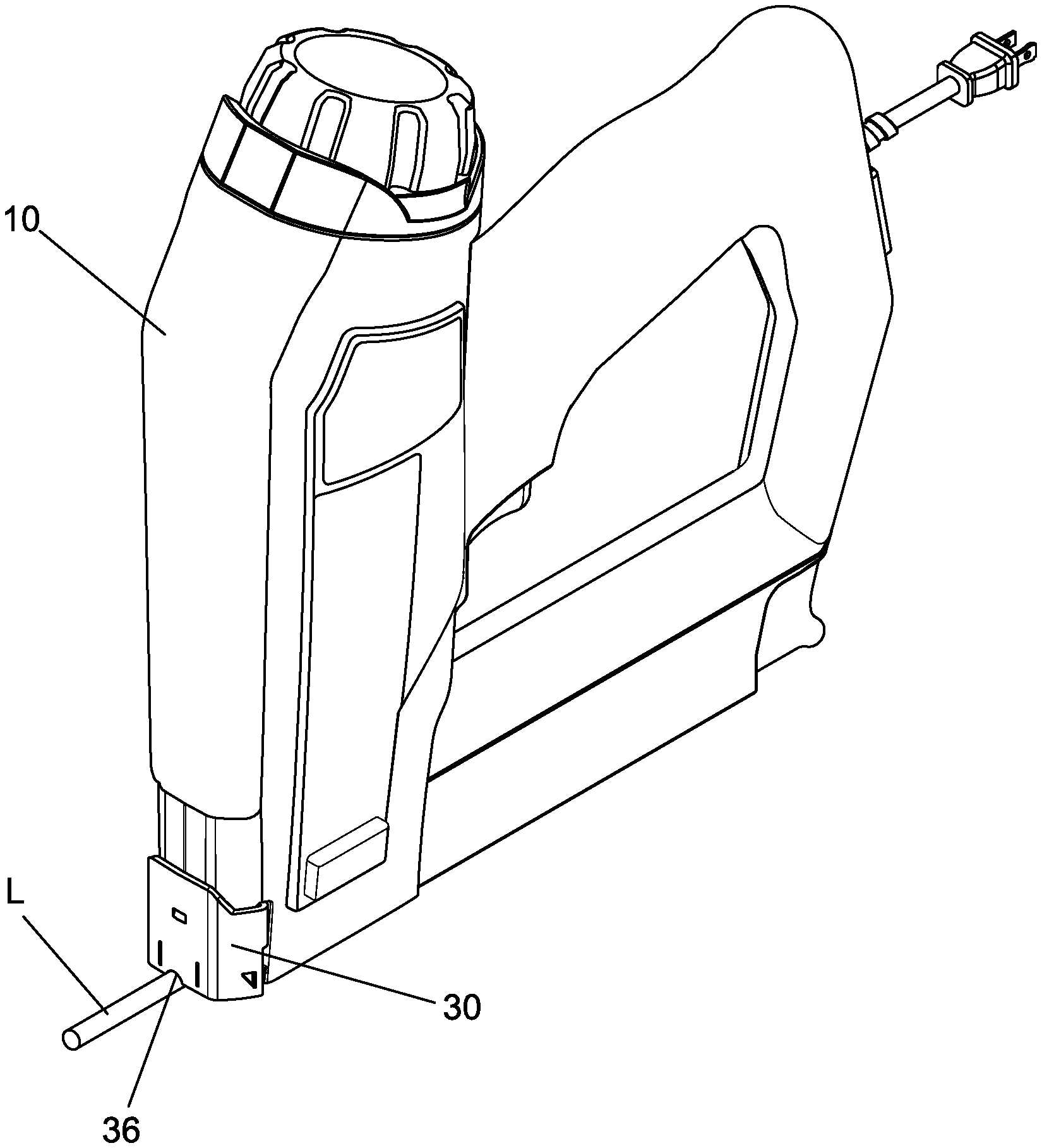

A safety device for tackers includes a safety slide slidably connected to the outlet of the tacker and the safety slide has a stop protruding from the inside thereof. The rod has one end contacts the stop and the other end of the rod has a plastic tip connected thereto. An ignition spring is connected between the plastic tip and a safety switch. A recovery spring is connected to another position of the rod to position the rod. The safety slide is slidably connected to grooves of the tacker. When the safety slide contacts against an object to be stapled, the rod is pushed by the stop and activates the ignition spring to activate the safety switch so as to reduce the impact of the rod and the safety switch.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
- 2016 Application Filing Year
- B25C Class
- 126 Applications Filed
- 92 Patents Issued To-Date
- 73.02 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B25C Class
- 38.97 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 27, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 27, 2032 |
