Automatic processing device including printing device for printing on carbon fiber tube
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 29, 2020
Grant Date -
Nov 1, 2018
app pub date -
Apr 2, 2018
filing date -
Apr 27, 2017
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

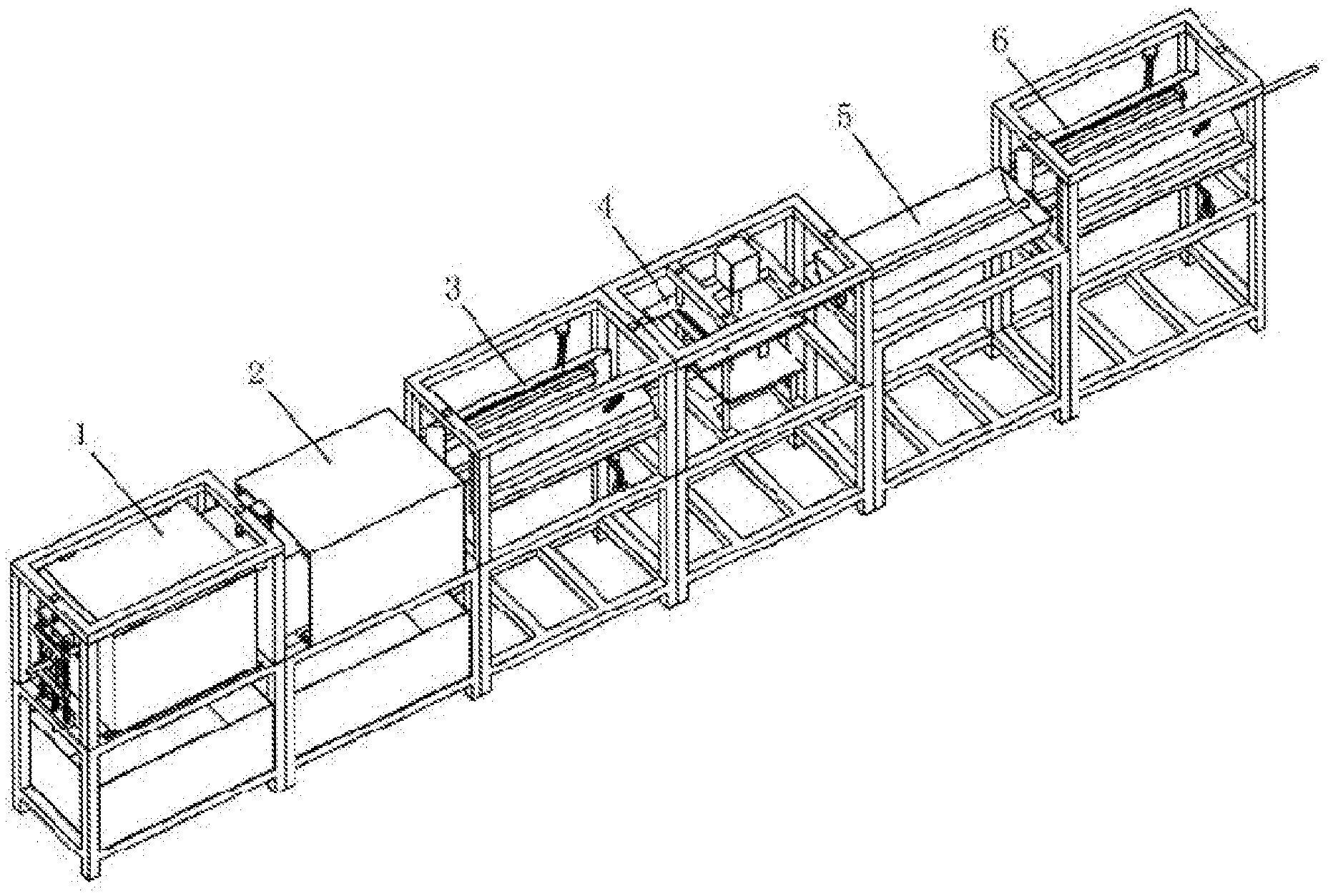

An automatic processing device of a carbon fiber tube includes a polishing device, a washing device, a first drying device, a printing device, a painting device and a second drying device centrally disposed along an identical axis in sequence to form an automatic production line. The polishing device includes feeding mechanisms disposed on two sides of a frame respectively and a positioning-polishing mechanism disposed between the feeding mechanisms. The printing device includes a supporting mechanism and a rolling-printing mechanism mounted on the frame. The disclosure aims at providing an automatic processing device of a carbon fiber tube and a processing method thereof, combining the polishing device, the printing device and the painting device as a whole. Separate processes such as polishing, printing and painting of the conventional carbon fiber tube are integrated to achieve the automatic production in the production line, which can significantly speed up the schedule.
First Claim
Other Claims data not available
Family
International Classification(s)
- B24B:MACHINES, DEVICES, OR PROCESSES FOR GRINDING OR PO....
- B41M:PRINTING, DUPLICATING, MARKING, OR COPYING PROCESS....
- B05C:APPARATUS FOR APPLYING LIQUIDS OR OTHER FLUENT MAT....
- B05D:PROCESSES FOR APPLYING LIQUIDS OR OTHER FLUENT MAT....
- C04B:LIME; MAGNESIA; SLAG; CEMENTS; COMPOSITIONS THEREO....
- B29D:PRODUCING PARTICULAR ARTICLES FROM PLASTICS OR FRO....
- B41F:PRINTING MACHINES OR PRESSES
- 2018 Application Filing Year
- B24B Class
- 755 Applications Filed
- 524 Patents Issued To-Date
- 69.41 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B24B Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 29, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 29, 2032 |
