Woodworking vice
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 22, 2020
Grant Date -
Apr 4, 2019
app pub date -
Sep 30, 2018
filing date -
May 26, 2017
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

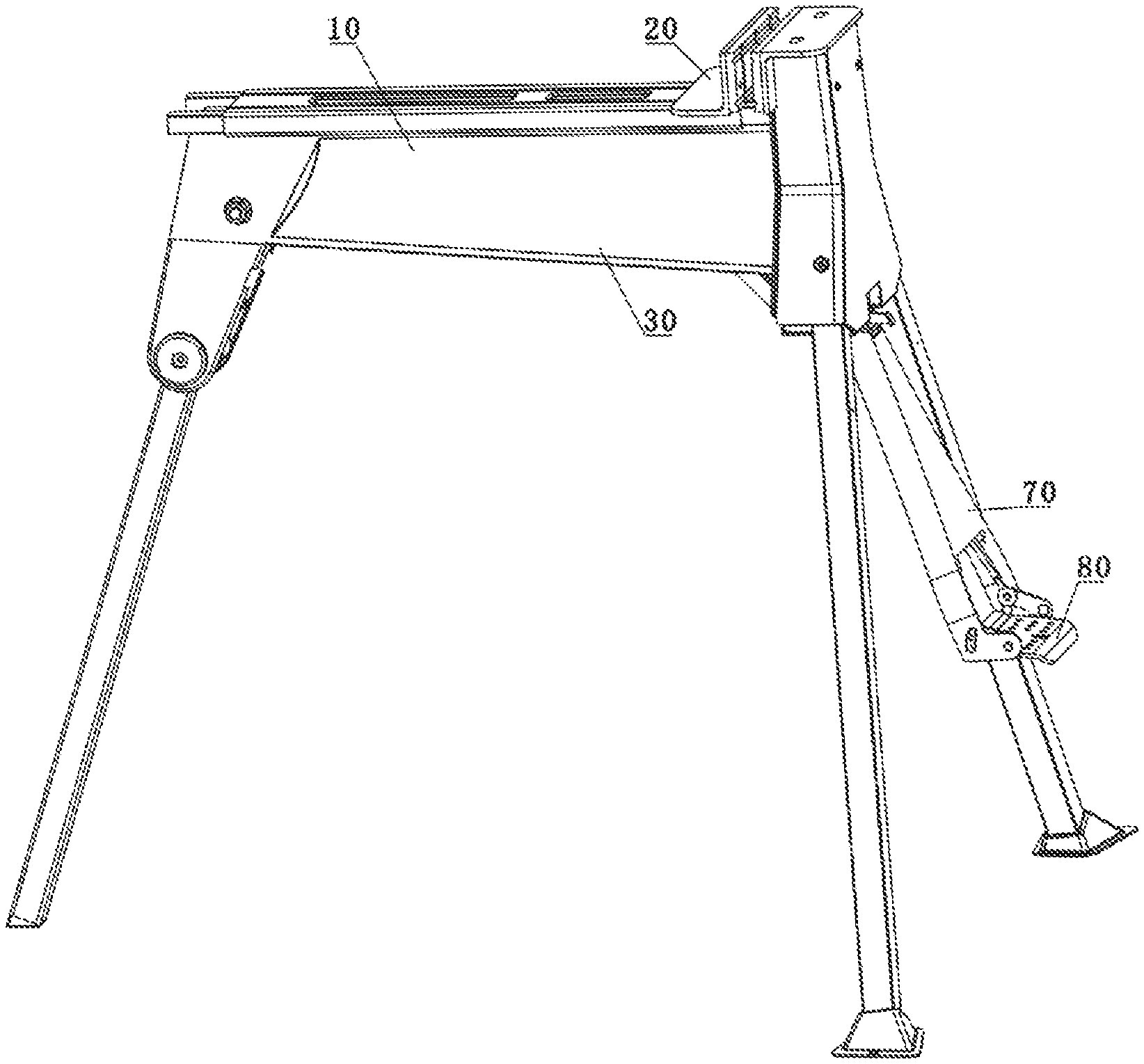

A woodworking vice including a frame, the frame has a clamp assembly and a connection rod matching with the assembly, and a front end of the rod is hinged to the frame. A rear end of the rod is provided with an extending frame extending upwardly, a front end of a locking member is hinged to an upper end of the extending frame, and a middle portion of a rocker is hinged to the upper end of the extending frame and is located below the locking member. The locking member is provided with a cooperation hole, and the locking member is equipped with a torsion spring making the locking member have a tendency of rotating clockwise. A rear portion of the frame is provided with a locking rod extending downwardly, the rod passes through the cooperation hole, and a rear end of the rocker is matched with the locking member.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2018 Application Filing Year
- B25B Class
- 867 Applications Filed
- 621 Patents Issued To-Date
- 71.63 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B25B Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 22, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 22, 2032 |
