Bell and a method of designing a bell
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 15, 2020
Grant Date -
Apr 23, 2020
app pub date -
Oct 23, 2019
filing date -
Oct 23, 2018
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

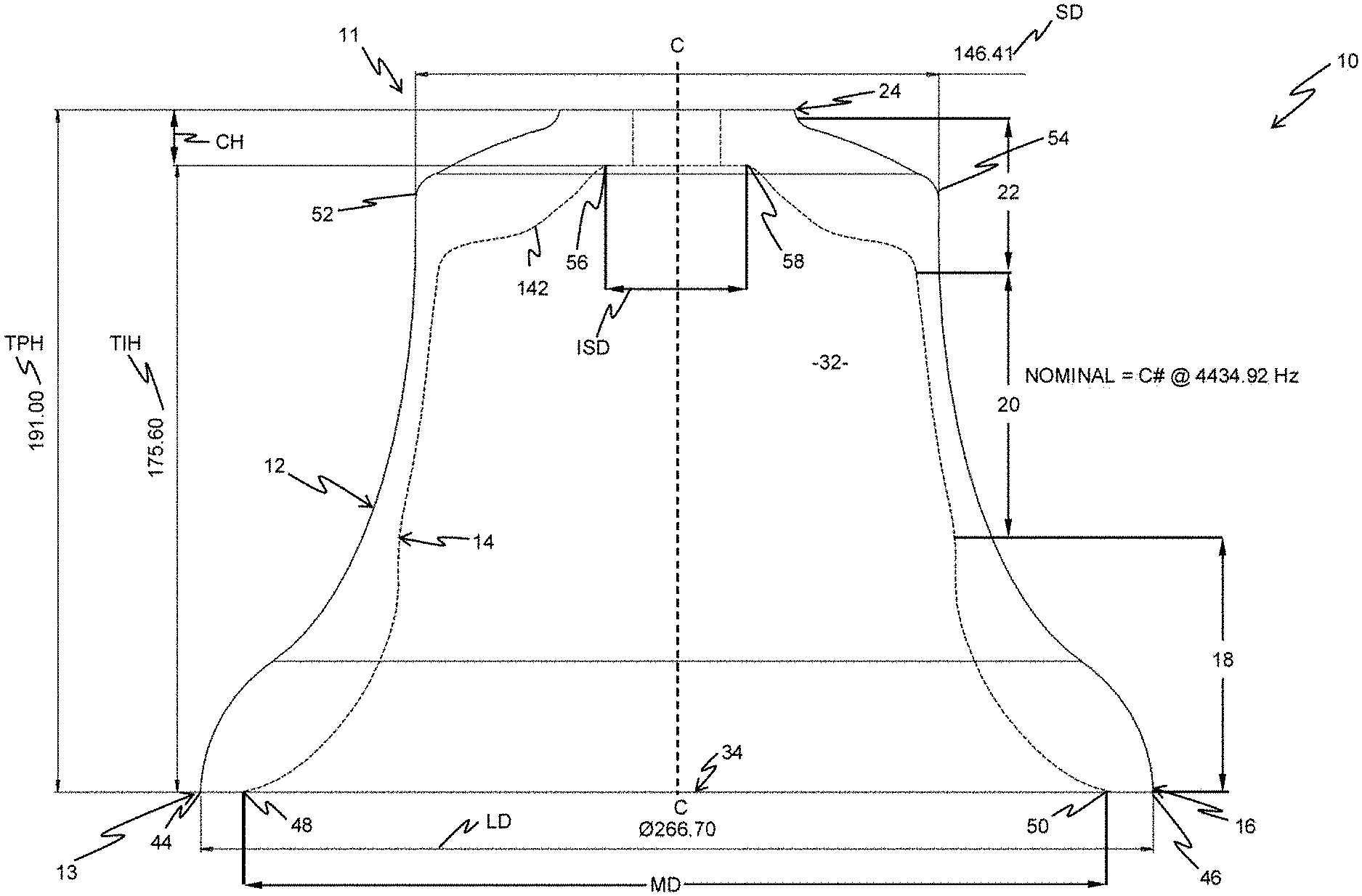

A bell including an outside surface, inside surface, lip at the bottom of the bell, sound bow above the lip, waist above the sound bow; above the waist a shoulder having a diameter equal to: 0.55*LD ±5%, and crown at the top of the bell above the shoulder; wherein a portion of the inside surface generally adjacent the shoulder has a first end at or near the crown; a second end at or near the waist and a inflection point generally in-between the first and second ends; as the inside surface portion extends away from the first end towards the point of inflection, the portion extends away from the crown more than it extends towards the outside surface; and as the inside surface portion extends towards the second end from the point of inflection, the portion extends towards the outside surface more than it extends away from the crown.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2019 Application Filing Year
- G10K Class
- 736 Applications Filed
- 481 Patents Issued To-Date
- 65.36 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G10K Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 15, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 15, 2032 |
