Solar heat collection system and operation method thereof
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 15, 2020
Grant Date -
Feb 21, 2019
app pub date -
Nov 4, 2016
filing date -
Nov 4, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

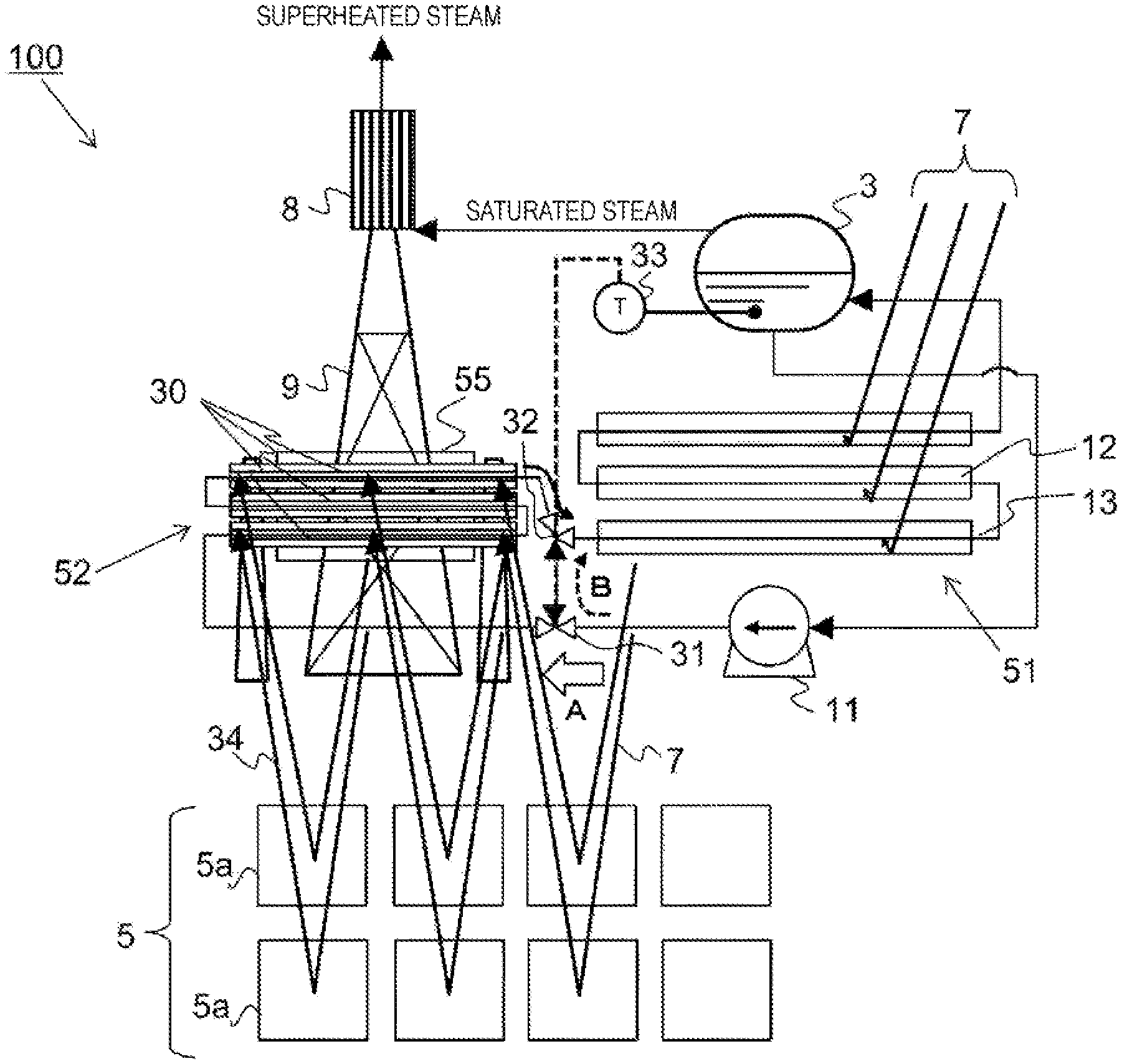

The time for steam generated in a low temperature heating device to reach a saturated steam temperature is reduced a low temperature heating device configured to heat supplied water by using heat of sunlight to generate steam; a steam separation device configured to separate two-phase water-steam fluid generated in the low temperature heating device into water and steam; and a high temperature heating device configured to heat the steam separated in the steam separation device by using heat of sunlight reflected by a plurality of heliostats to generate superheated steam.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
- 2016 Application Filing Year
- F22G Class
- 26 Applications Filed
- 19 Patents Issued To-Date
- 73.08 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F22G Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 15, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 15, 2032 |
