Annular superheating element for firetube boilers
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 15, 2020
Grant Date -
Jun 21, 2018
app pub date -
Dec 16, 2016
filing date -
Dec 16, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

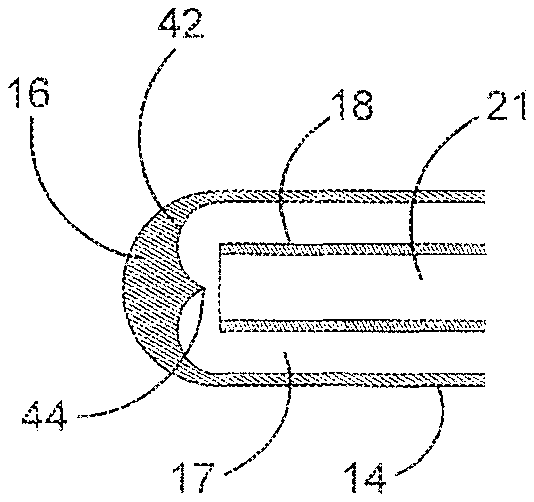

An annular superheater element for superheating steam within firetubes of firetube boilers comprising concentric inner and outer tubes and a specially designed return end cap. Saturated steam introduced into the outer tube of said superheater element is superheated while traveling towards the burner end of the tube, is directed into the inner tube by means of the return end cap, and travels away from the burner side of the element where it is exhausted for use as superheated steam. While traversing the inner tube, the superheated steam gives off heat energy through the wall of the inner tube to the steam traveling in the outer tube towards the burner end of the tube, conserving energy. The improved superheater element produces superheated steam more efficiently, with less fuel, and steam capable of doing more work, than conventional superheater elements and can be used to retrofit existing firetube type boilers.
