Regulators with load-insensitive compensation
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 8, 2020
Grant Date -
Dec 28, 2017
app pub date -
Jun 23, 2016
filing date -
Jun 23, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

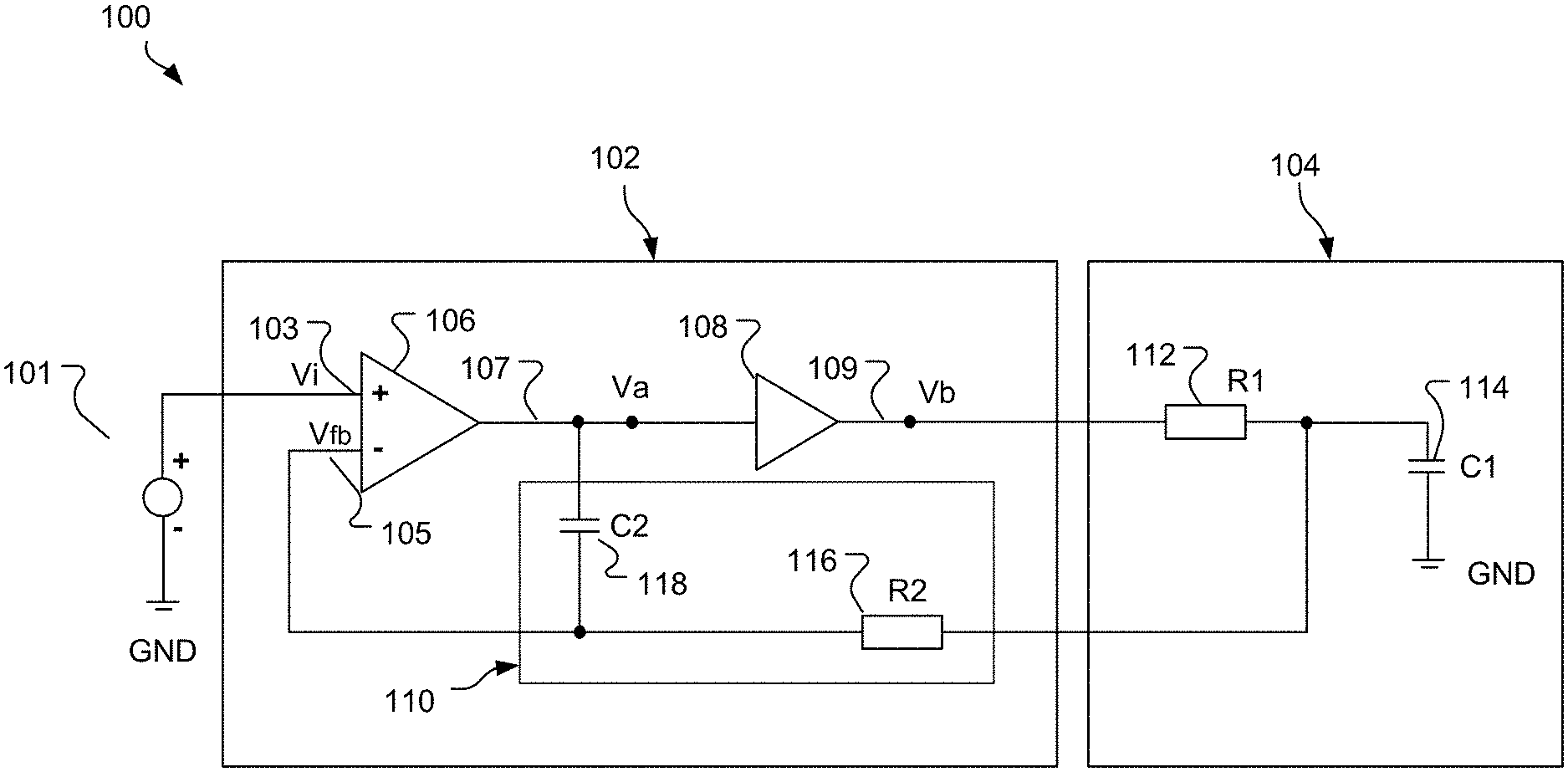

Systems, methods, circuits and computer-readable mediums for regulators, e.g., low-dropout (LDO) regulators, with load-insensitive compensations are provided. An example regulator includes an amplifier operable to receive an input voltage and a feedback voltage, a follower responsive to an output voltage of the amplifier and operable to supply a regulated voltage to a load coupled to the follower, and a feedback circuit coupled to the load and the amplifier and operable to provide the feedback voltage. The amplifier is operable to have a substantially unity gain beyond a resonant frequency of the amplifier.
