Screen control device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 8, 2020
Grant Date -
Apr 11, 2019
app pub date -
Feb 22, 2017
filing date -
Mar 30, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

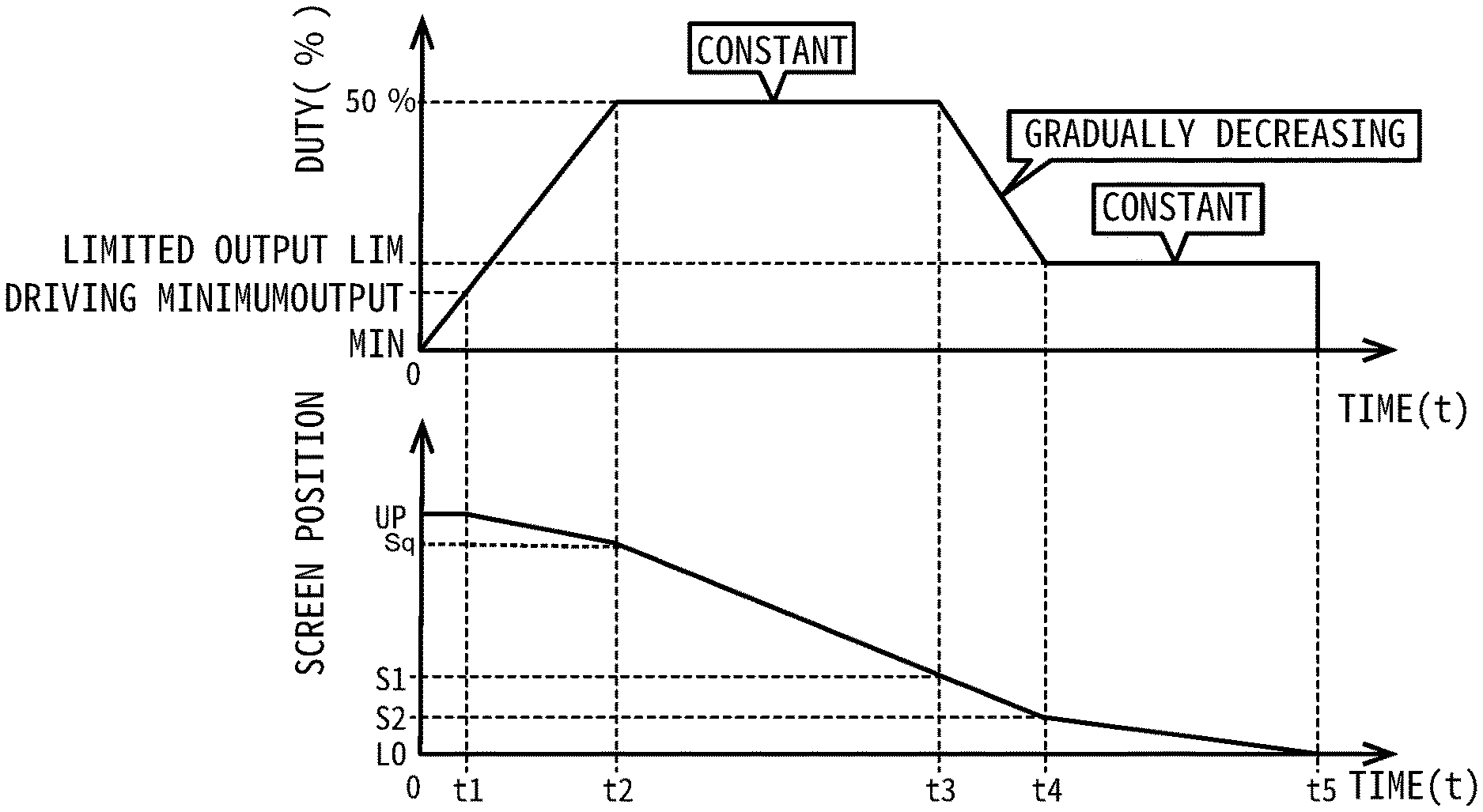

Motor output setting means is provided which changes an output of a motor in accordance with a detection value of position detection means when a screen is driven in a downward direction. The motor output setting means changes the output of the motor in response to the screen reaching a first intermediate position and a second intermediate position between an uppermost position and a lowermost position of the screen. When the screen reaches the second intermediate position, the motor output setting means drives the motor by using a limited output obtained by adding a predetermined addable output to a minimum output for driving required for driving the screen in the downward direction. Such screen control device is aimed at optimization of motor output taking into consideration the catching (clamping) of foreign matter.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B60J Class
- 39.70 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 8, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 8, 2032 |
