Winch tightening mechanism
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 25, 2020
Grant Date -
Aug 8, 2019
app pub date -
Apr 19, 2019
filing date -
Apr 22, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

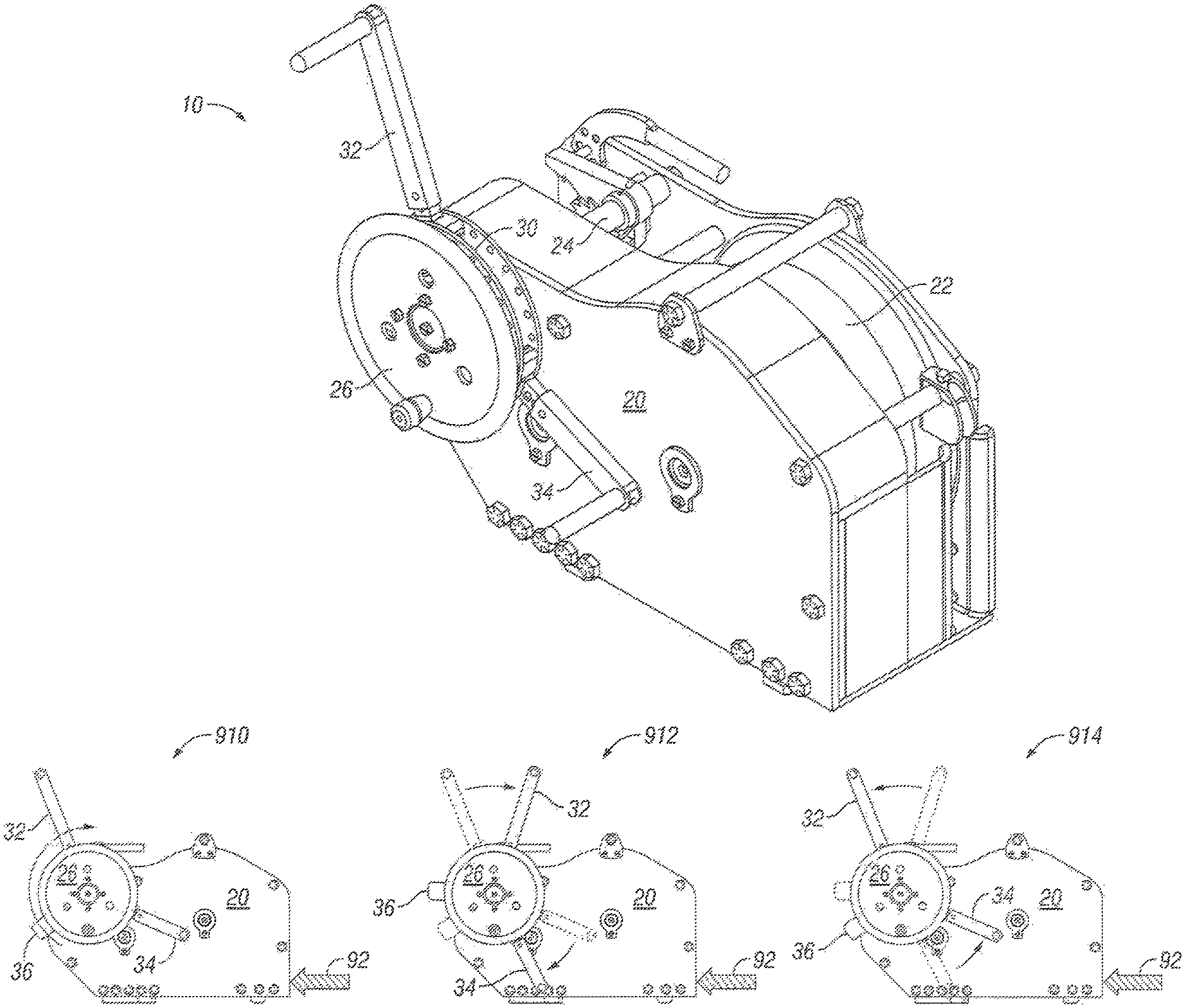

According to some embodiments, a winch tightening apparatus comprises a mounting plate; it first moment arm coupled to the mounting plate and configured to provide leverage for rotating the mounting plate; and a pawl comprising a first end and a second end. The first end is pivotally coupled to the mounting plate such that the second end pivots to engage a ratchet gear when the mounting plate is rotated in a first direction and pivots to disengage the ratchet gear when the mounting plate is rotated in a second direction opposite the first direction. Some embodiments include a second moment arm coupled to the mounting plate and configured to provide leverage for rotating the mounting plate. Some embodiments include a counterweight coupled to the mounting plate and positioned to rotate the mounting plate in the second direction.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2019 Application Filing Year
- B66D Class
- 186 Applications Filed
- 133 Patents Issued To-Date
- 71.51 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B66D Class
- 42.35 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Feb 25, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 25, 2032 |
