Cable anchorage with seal element, prestressing system comprising such anchorage and method for installing and tensioning a sheathed elongated element
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 11, 2020
Grant Date -
Jun 27, 2019
app pub date -
Aug 16, 2017
filing date -
Aug 19, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance

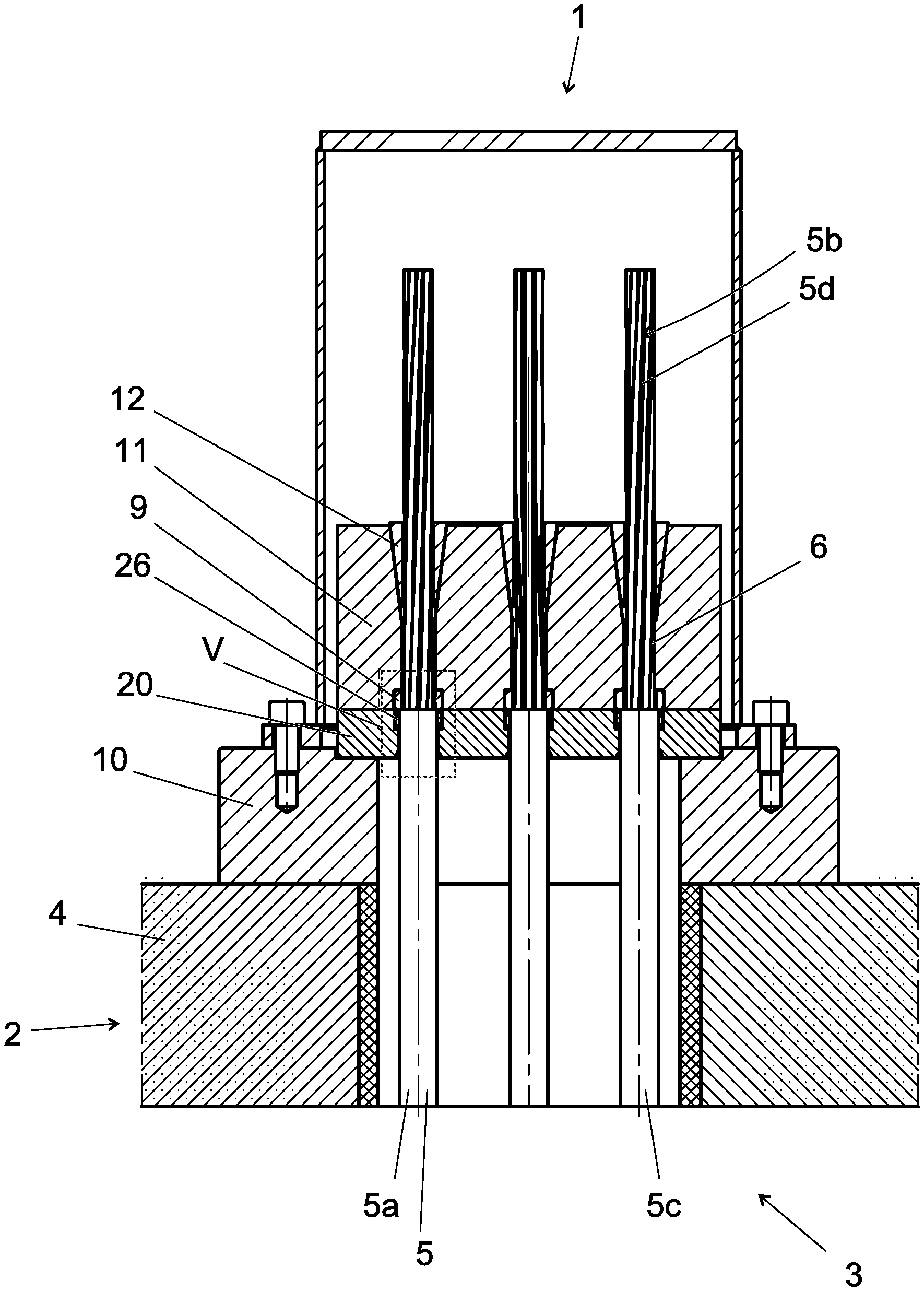

Abstract
The present invention concerns a cable anchorage comprising at least one axial channel for accommodating an elongated element with a sheathed portion and an unsheathed end portion, wherein the channel between a first channel end, proximal to a running part of the elongated element, and a second channel end equipped with immobilising device, a seal element in the channel, a stop element having an end facing said seal element which defines a shoulder, so that an axial displacement of the of the elongated element with respect to the stop element in said channel is possible up to the abutment of the end of the sheathed portion against the shoulder, creating thereby an abutment position of the elongated element in said channel.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- E04B Class
- 52.43 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Feb 11, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 11, 2032 |
