Chip-scale resonant gyrator for passive non-reciprocal devices
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 28, 2020
Grant Date -
Apr 26, 2018
app pub date -
Oct 23, 2017
filing date -
Oct 24, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

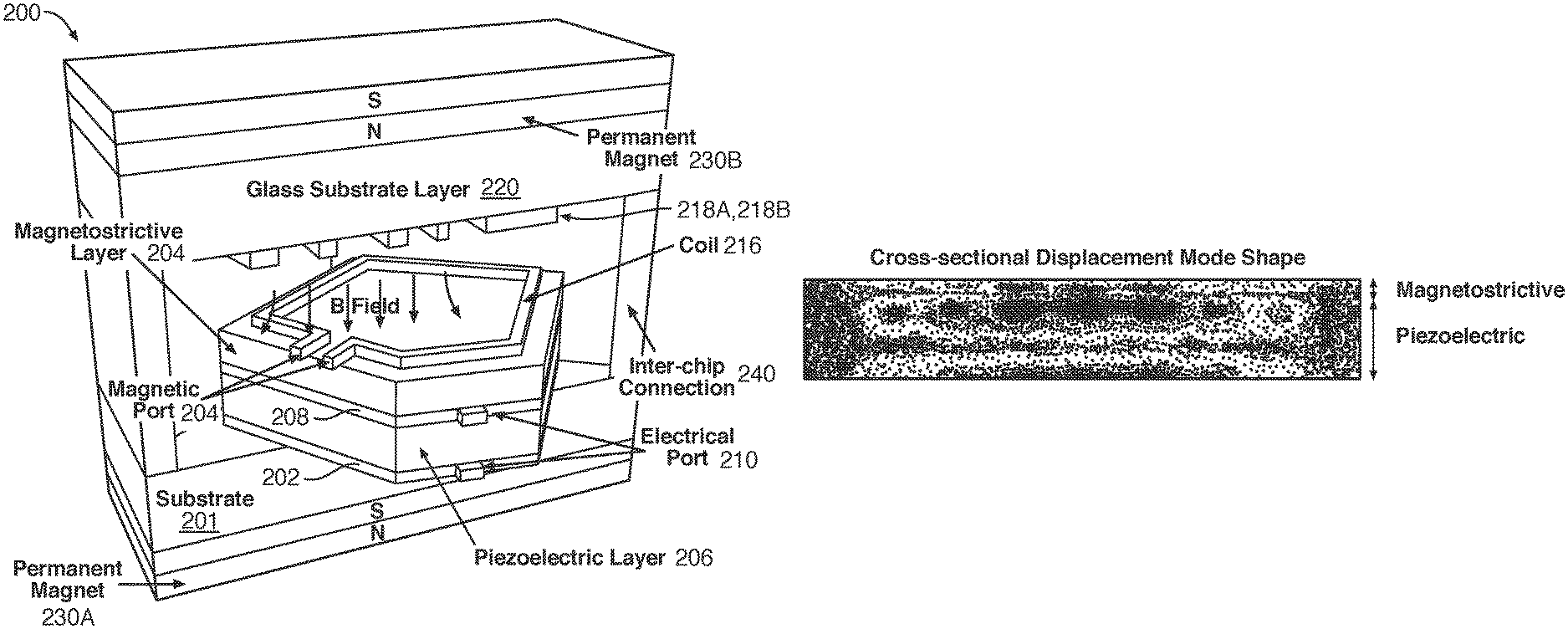

An integrated circuit is a layered device, on a semiconductor substrate, which contains metal electrodes that sandwich a piezoelectric layer, followed by a magnetostrictive layer and a metal coil. The metal electrodes define an electrical port across which to receive an alternating current (AC) voltage, which is applied across the piezoelectric layer to cause a time-varying strain in the piezoelectric layer. The magnetostrictive layer is to translate the time-varying strain, received by way of a vibration mode from interaction with the piezoelectric layer, into a time-varying electromagnetic field. The metal coil, disposed on the magnetostrictive layer, includes a magnetic port at which to induce a current based on exposure to the time-varying electromagnetic field generated by the magnetostrictive layer.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- H01L Class
- 30754 Applications Filed
- 25260 Patents Issued To-Date
- 82.14 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H01L Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 28, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 28, 2032 |
