Atomic oscillator and magnetic field control method of atomic oscillator
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 28, 2020
Grant Date -
Jul 4, 2019
app pub date -
Dec 19, 2018
filing date -
Dec 28, 2017
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

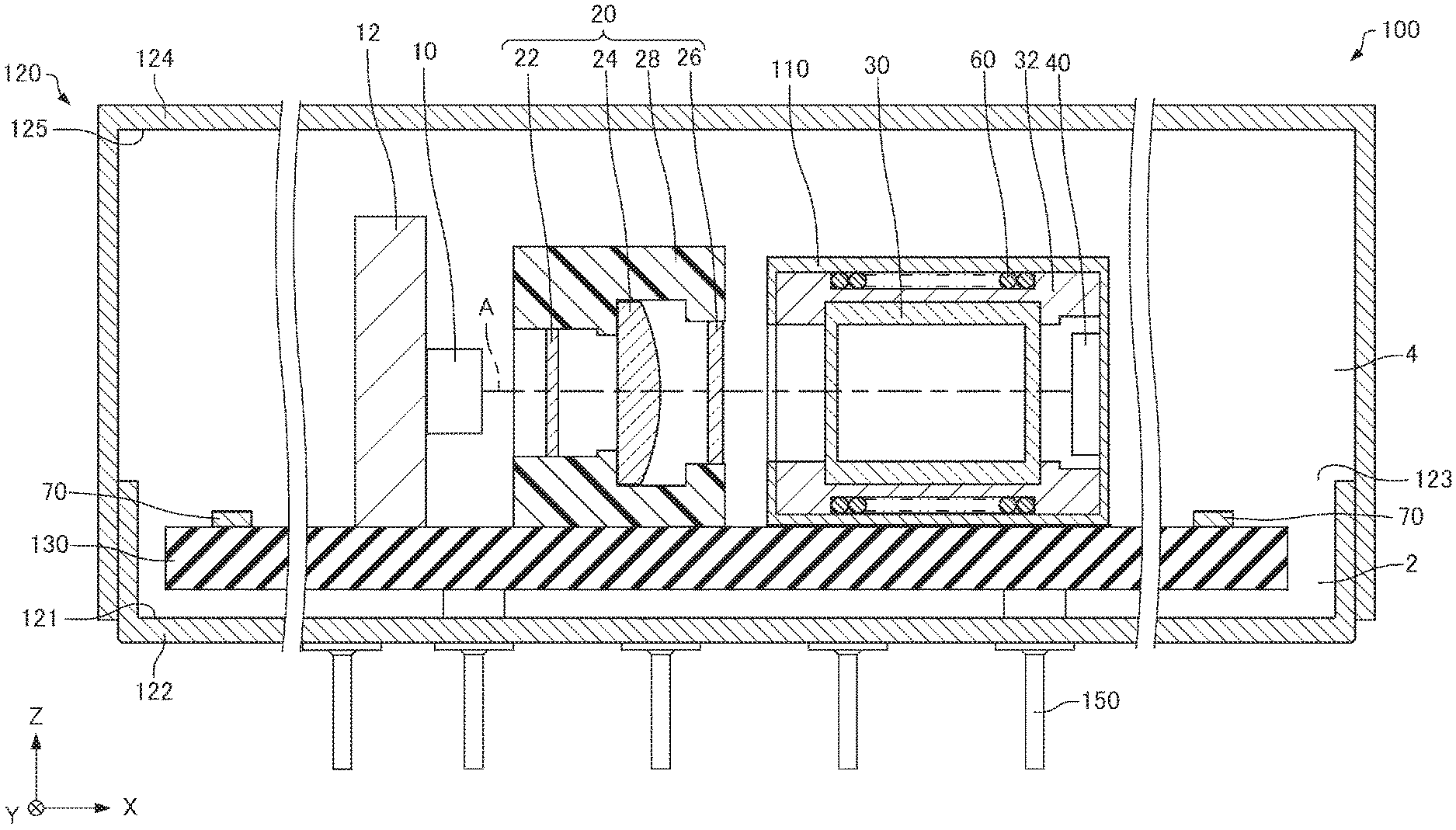

An atomic oscillator includes a light source; an atomic cell in which alkali metal atoms are contained and on which light that is emitted from the light source is incident; a first coil that applies a magnetic field to the atomic cell; a first shield that contains the atomic cell and the first coil and shields a magnetic field; a second shield that includes a first member having a recess and a second member, containing the light source and the first shield in a space which is formed by the first member and the second member, and the second shield shields the magnetic field; and a second coil that generates a magnetic field passing through an opening of the recess.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2018 Application Filing Year
- H03L Class
- 603 Applications Filed
- 510 Patents Issued To-Date
- 84.58 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H03L Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 28, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 28, 2032 |
