Earth working machine whose working apparatus is displaceable out of its operating position using an onboard actuator
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 28, 2020
Grant Date -
Nov 29, 2018
app pub date -
May 16, 2018
filing date -
May 23, 2017
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

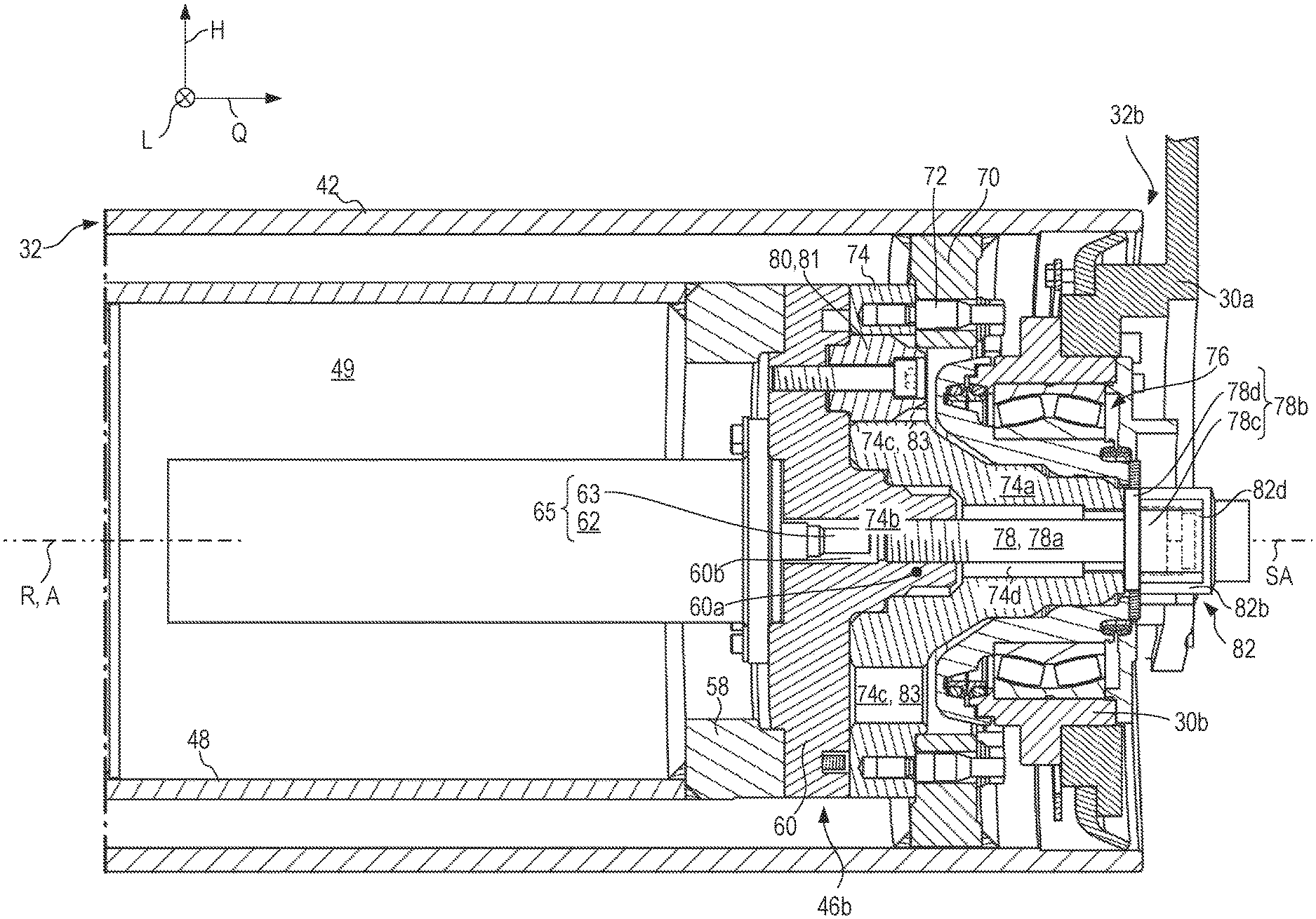

An earth working machine (10) includes a machine body (13) having a machine frame (12) and a drive configuration (46), rotationally drivable relative to the machine frame (12), and to which configuration a working apparatus (32) embodied for earth working is releasably connected in torque-transferring fashion, in an operating position, for rotation together around a drive axis (A), such that when the connection is released, the working apparatus (32) is removable from the operating position in an axial direction relative to the drive configuration (46) for deinstallation from the drive configuration (46) and, for installation on the drive configuration (46), is conveyable into the operating position in an axial direction relative to the drive configuration (46), an actuator (65) being provided which is embodied to move the working apparatus (32) out of the operating position when the connection is released.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2018 Application Filing Year
- B23Q Class
- 722 Applications Filed
- 513 Patents Issued To-Date
- 71.06 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 6 Citation Count
- B23Q Class
- 58.38 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 28, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 28, 2032 |
