Mechanically adjustable vibratory drive system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 21, 2020
Grant Date -
N/A
app pub date -
May 23, 2019
filing date -
May 28, 2018
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

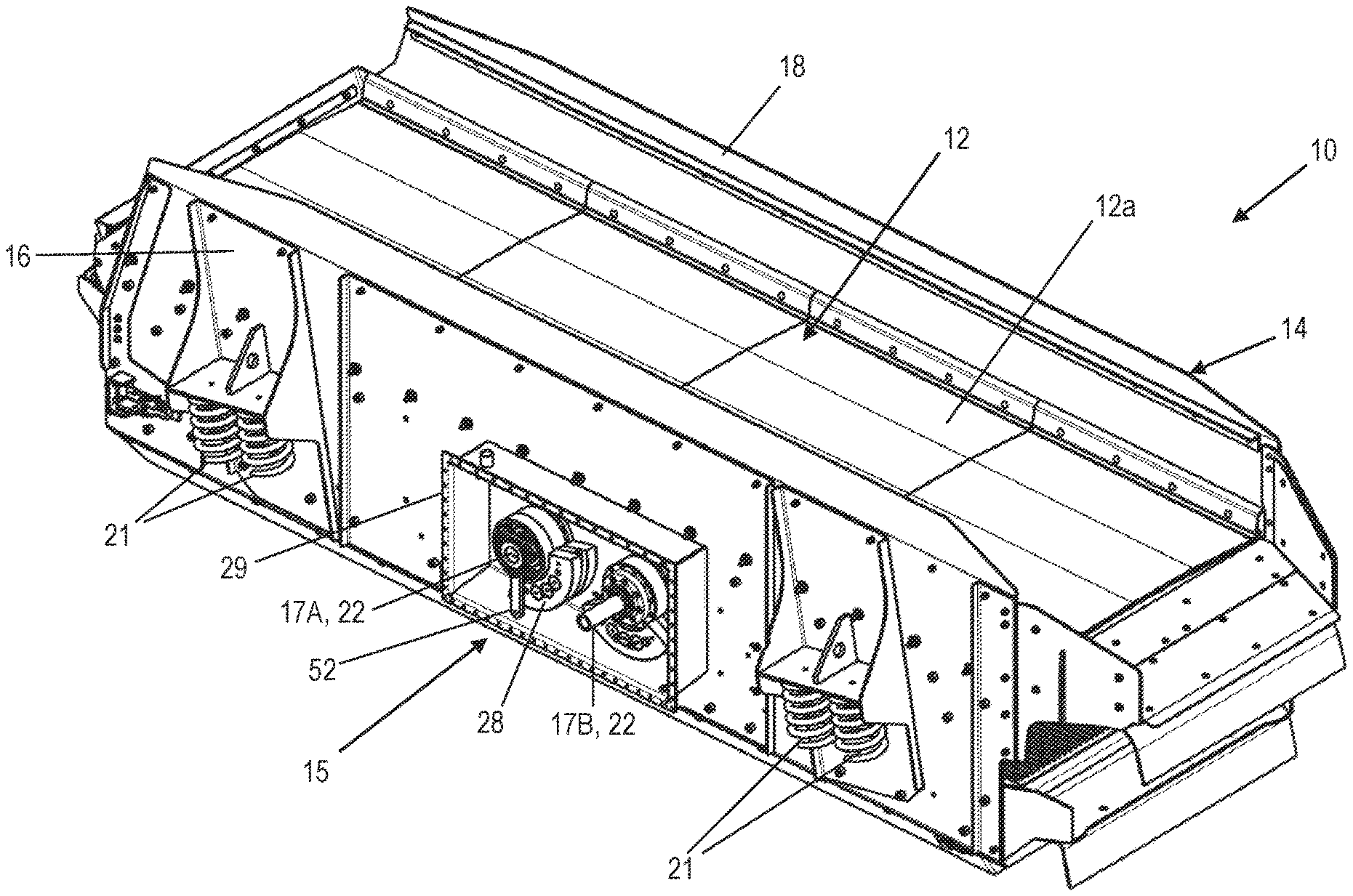

A vibratory drive system comprises a rotatable drive shaft and an out-of-balance wheel that is coaxial with and rotatable relative to the drive shaft. A rotary transmission system couples the drive shaft to the wheel in order to transmit rotational movement of the drive shaft to the wheel. The rotary transmission system comprises a shaft gear, a wheel gear, and intermediate gears coupling the shaft gear to the wheel gear. The intermediate gears are carried by a gear carrier that is rotatable relative to the drive shaft, and are rotatable with respect to the gear carrier. The arrangement allows the phase angle of the out-of-balance wheel to be adjusted with respect to the drive shaft.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2019 Application Filing Year
- B07B Class
- 157 Applications Filed
- 118 Patents Issued To-Date
- 75.16 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B07B Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 21, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 21, 2032 |
