Natural gas temperature and pressure regulating system based on recovering pressure energy and absorbing heat from ultralow temperature ambient environment
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 7, 2020
Grant Date -
N/A
app pub date -
Dec 11, 2017
filing date -
Nov 9, 2017
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

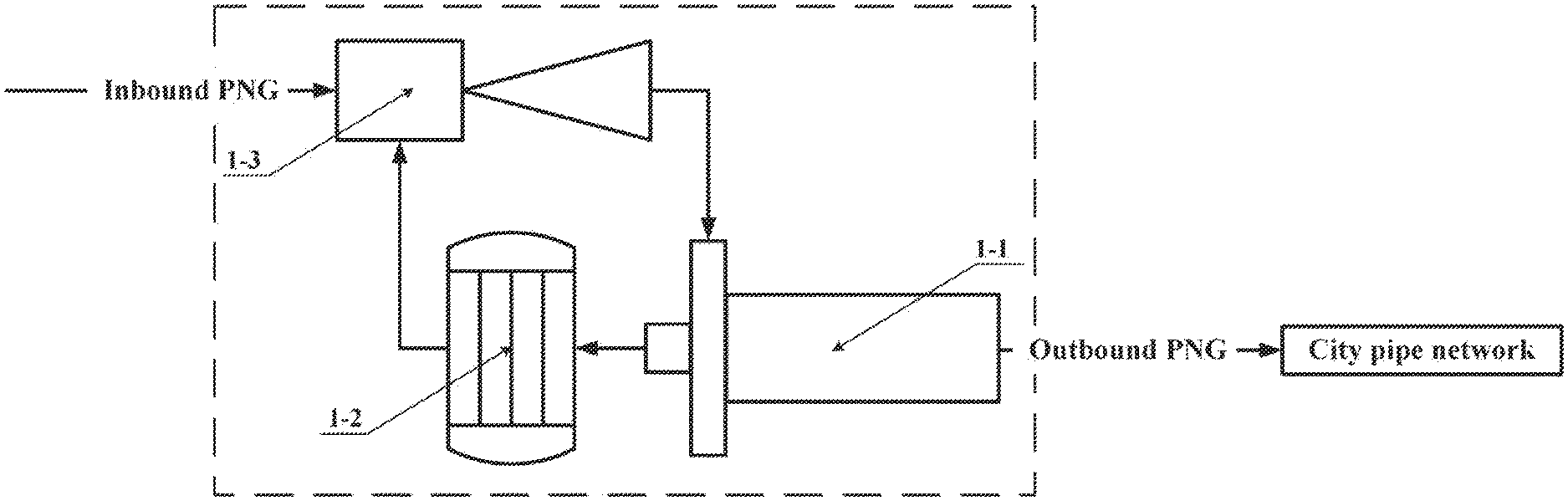

The natural gas temperature and pressure regulating system based on recovering pressure energy and absorbing heat from ultralow temperature ambient environment. A pressure driven heating system of pipeline natural gas pressure regulation or liquid natural gas regasification process. This system adopts vortex tube, ambient air heat exchanger and ejector that constitute the pressure driven heating unit to replace the existing heater. The two kinds of pressure driving devices of an ejector and a vortex tube are adopted, transmit the low temperature NG at the cold end of the vortex tube into the ambient air heat exchanger to absorb heat from the ambient continuously; at the same time, make temperature of the gas from the hot end of the vortex tube increase to meet the required temperature of pipeline directly, then achieve the purpose of no heater energy consumed.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| CN | B | CN107940235 | Nov 09, 2017 |
| WO | A1 | WO2019090885 | Dec 11, 2017 |
International Classification(s)
- 2017 Application Filing Year
- F17D Class
- 154 Applications Filed
- 111 Patents Issued To-Date
- 72.08 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- F17D Class
- 75.34 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 7, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 7, 2032 |
