Remote power supply, position sensor and wireless communication device for an extendable door handle
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 23, 2020
Grant Date -
N/A
app pub date -
Jun 7, 2018
filing date -
Jun 13, 2017
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

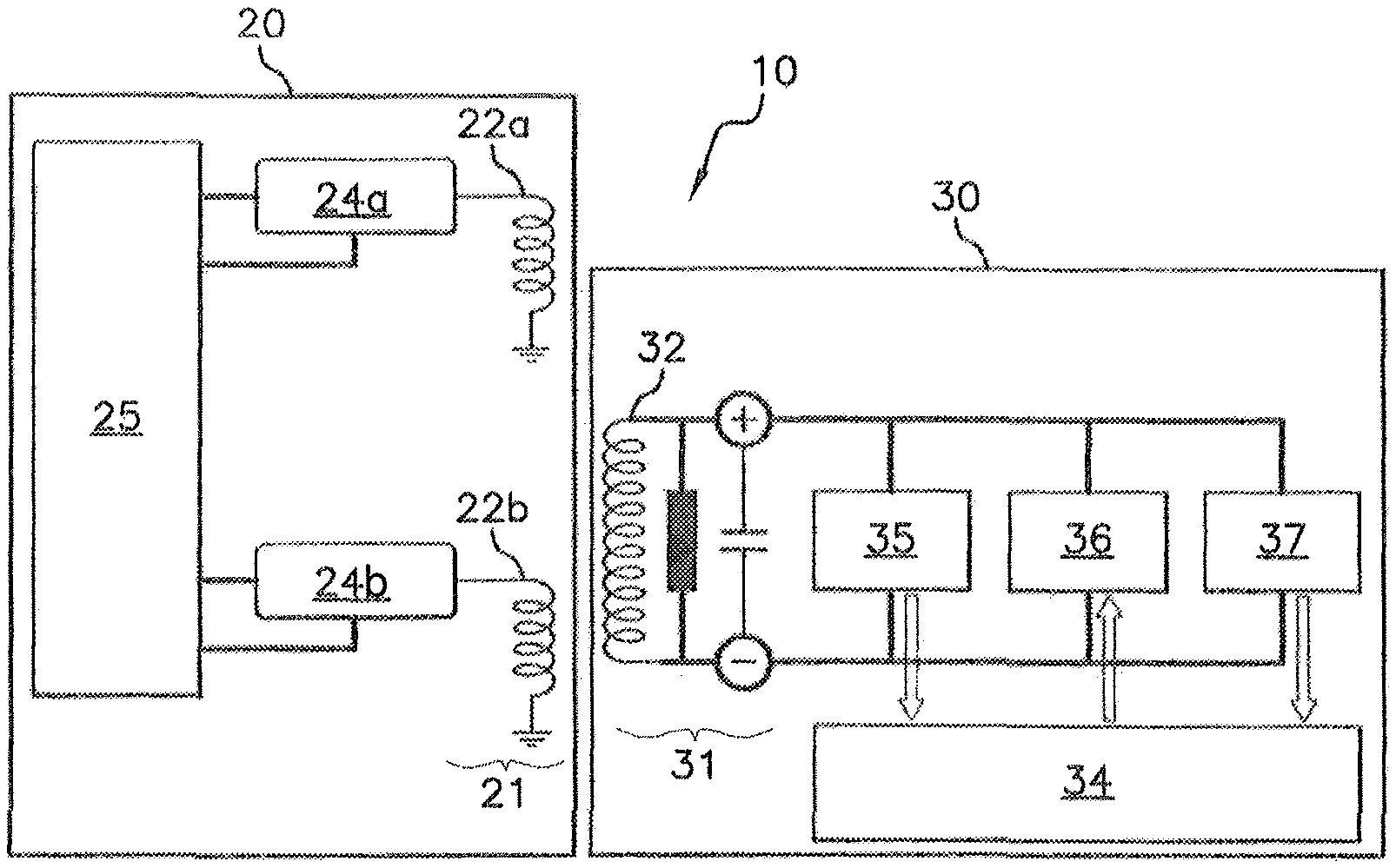

A device for remotely supplying power, through magnetic induction, to a secondary module able to move in relation to a primary module along a predetermined path. An advantageous arrangement of the primary coils of the primary module and of a secondary coil of the secondary module furthermore allows the device to estimate the position of the secondary module. The primary coils are arranged such that: the primary coils form respective magnetic fields oriented in the same direction along their respective axes, during the movement, the inductive coupling between the first primary coil and the secondary coil evolves in the opposite way to the inductive coupling between the second primary coil and the secondary coil, the total inductive coupling existing between the primary coils and the secondary coil is substantially constant regardless of the position of the secondary coil.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2018 Application Filing Year
- H02J Class
- 5209 Applications Filed
- 3791 Patents Issued To-Date
- 72.78 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H02J Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 23, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 23, 2031 |
