Drain cleaning apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 16, 2020
Grant Date -
Mar 8, 2018
app pub date -
Nov 9, 2017
filing date -
Jan 28, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

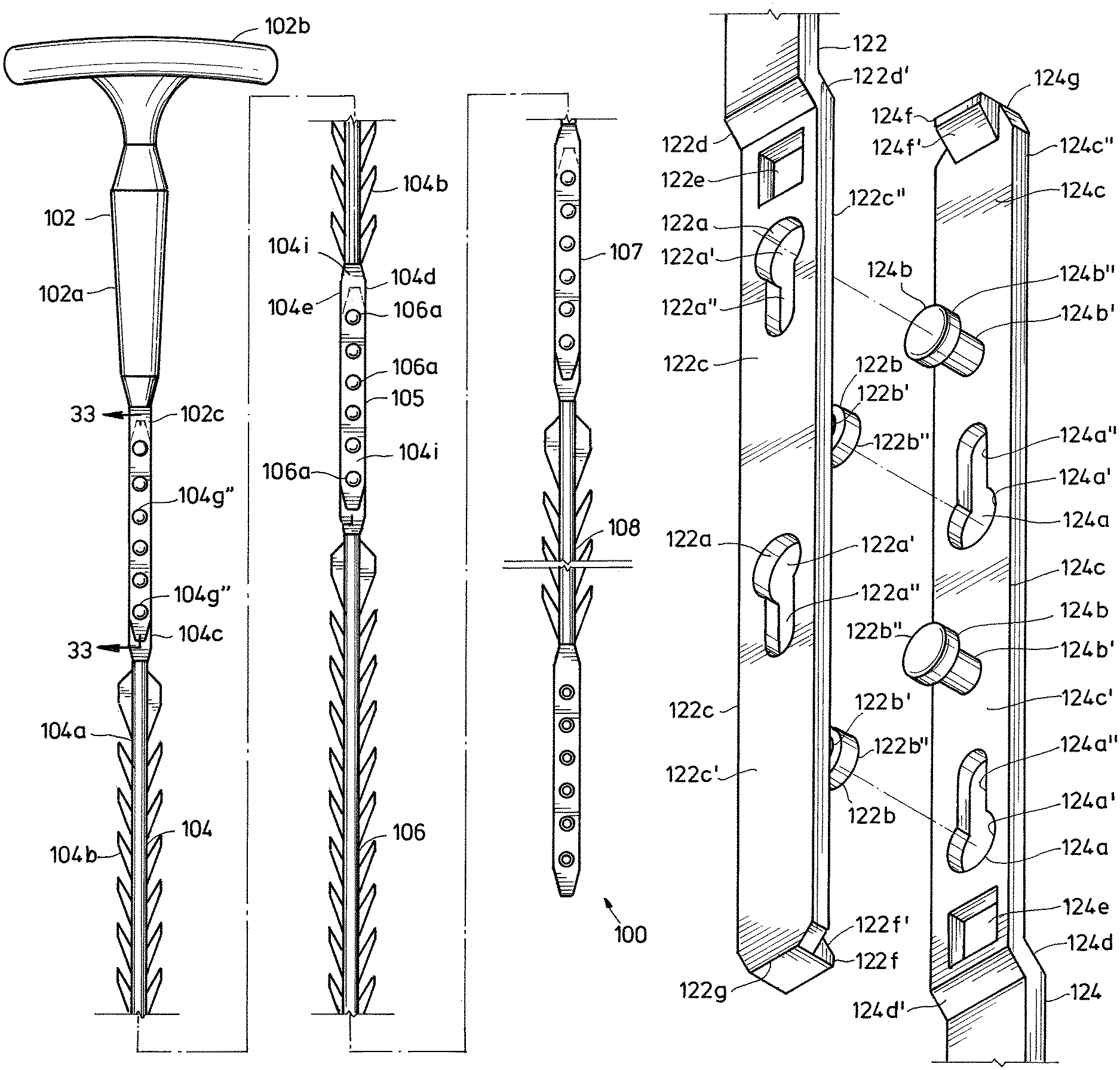

A drain cleaning apparatus includes a handle and a clog-catching member detachably connected to the handle. Wings, barbs or hooks project radially from the clog-catching member. The wings, barbs or hooks provide an angled projection that catches and holds a clump of debris in a drain pipe for pulling the clump out and unclogging the drain. Different end tools can be removably connected to a clog-catching member or to a smooth extension member to provide multifunctionality. The handle, clog-catching members, smooth extension members and tools can be connected together using a quick-connect connector, such as a snap fastener, a keyhole fastener or a side-release buckle, or a threaded connector. In addition to drain cleaning, the apparatus can be fitted with tools such as a magnet, grabber, light, camera and/or video for retrieval of objects and inspection of a space that is difficult to view directly.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- B08B Class
- 1362 Applications Filed
- 875 Patents Issued To-Date
- 64.25 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- B08B Class
- 62.91 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 16, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 16, 2031 |
