Method and device for exposing at least one sectional face inside a light scattering object
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 16, 2020
Grant Date -
Aug 23, 2018
app pub date -
Aug 9, 2016
filing date -
Aug 14, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

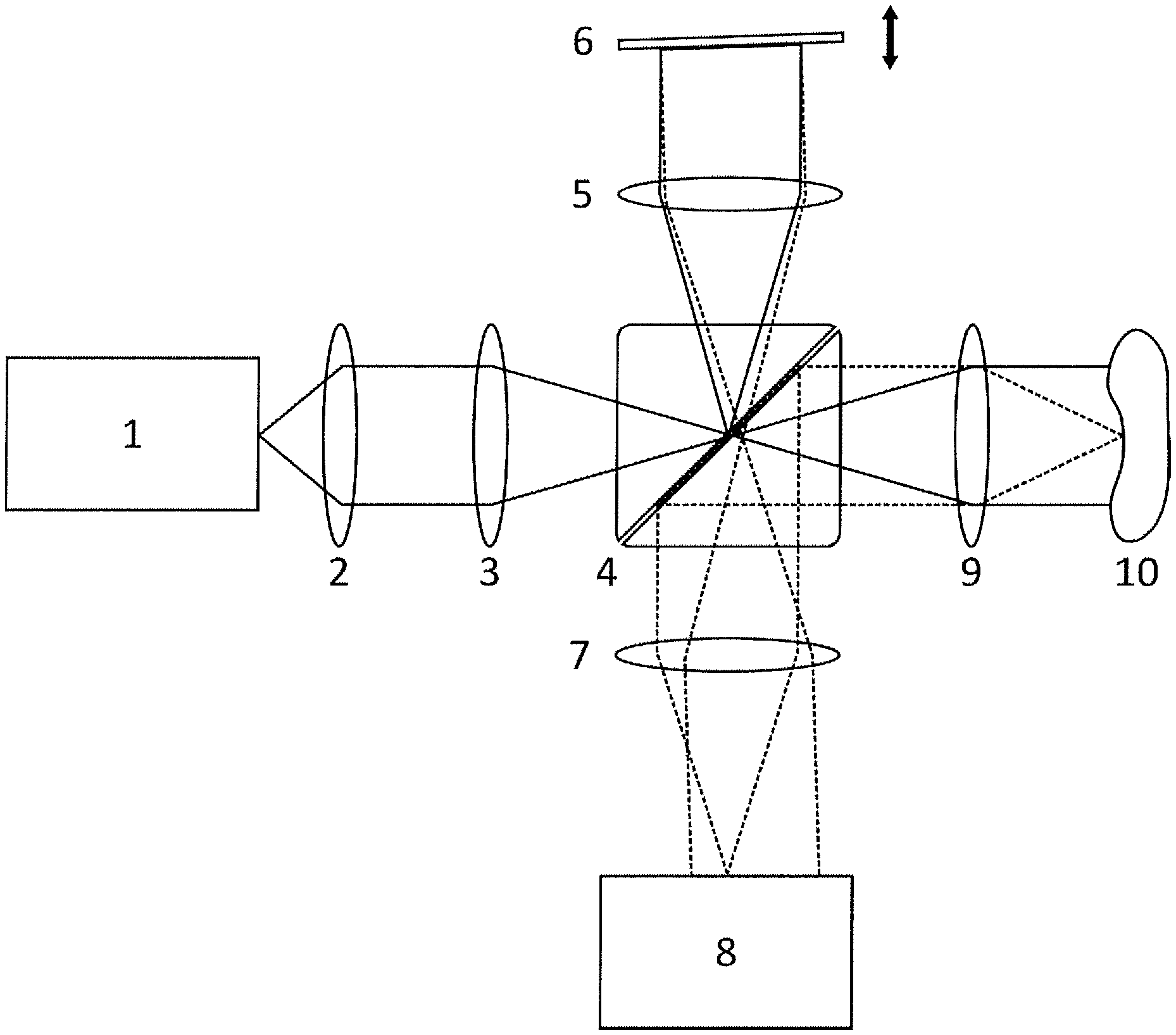

The invention relates to an interferometric method, in which the light scattered by an object is imaged onto an electronic camera, wherein a sample light component is assigned to scattering sites on a sectional face in the interior of the object. This sample light component can be separated from the contributions of the other sample light components by processing of the camera image and leads to a sectional image. A particular advantage of the invention lies in the fact that multiple parallel sectional faces can be exposed sequentially at predetermined intervals from each other in the interior of the object. Such a sequence of sectional images can be used to calculate a solid model of the object.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- G01N Class
- 12375 Applications Filed
- 8515 Patents Issued To-Date
- 68.81 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G01N Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 16, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 16, 2031 |
