Defibrated material manufacturing device, and sheet manufacturing apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 9, 2020
Grant Date -
Jan 31, 2019
app pub date -
Jul 30, 2018
filing date -
Jul 31, 2017
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

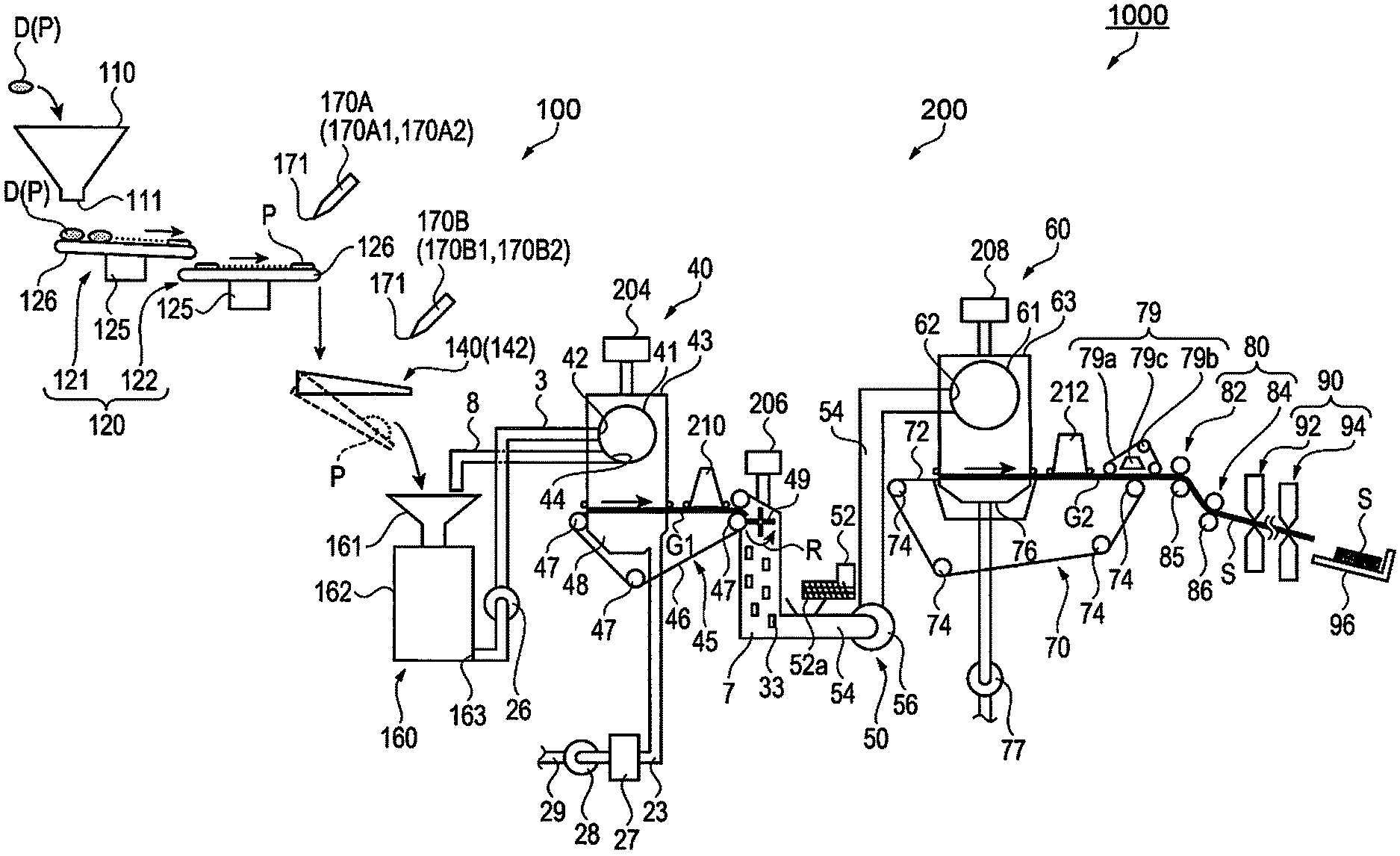

A sheet manufacturing apparatus includes a defibrator configured to produce defibrated material, a feedstock supply unit, a monitoring device, and a cleaning device. The feedstock supply unit includes a conveyance device configured to convey feedstock, a storage device configured to accumulate the feedstock conveyed from the conveyance device and supply the feedstock to the defibrator, and a measuring device configured to measure a state of the feedstock accumulated on the storage device. The monitoring device is configured to predict stopping of conveyance of the feedstock by the feedstock supply unit and activate the cleaning device when a conveyance speed of the feedstock by the feedstock supply unit becomes slower than during normal operation. The cleaning device is configured to execute on at least one of the conveyance device and the storage device a cleaning process that preemptively prevents the stopping of conveyance.
First Claim
Other Claims data not available
Family
International Classification(s)
- D21B:FIBROUS RAW MATERIALS OR THEIR MECHANICAL TREATMEN....
- B27N:MANUFACTURE BY DRY PROCESSES OF ARTICLES, WITH OR ....
- D21G:CALENDERS; ACCESSORIES FOR PAPER-MAKING MACHINES
- D21F:PAPER-MAKING MACHINES; METHODS OF PRODUCING PAPER ....
- D01G:PRELIMINARY TREATMENT OF FIBRES, e.g. FOR SPINNING....
- D21D:TREATMENT OF THE MATERIALS BEFORE PASSING TO THE P....
- D04H:MAKING TEXTILE FABRICS, e.g. FROM FIBRES OR FILAME....
- 2018 Application Filing Year
- D21B Class
- 59 Applications Filed
- 33 Patents Issued To-Date
- 55.94 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- D21B Class
- 66.67 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 9, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 9, 2031 |
