Reinforced composite hybrid wheel construction
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 26, 2020
Grant Date -
Apr 11, 2019
app pub date -
Oct 5, 2017
filing date -
Oct 5, 2017
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

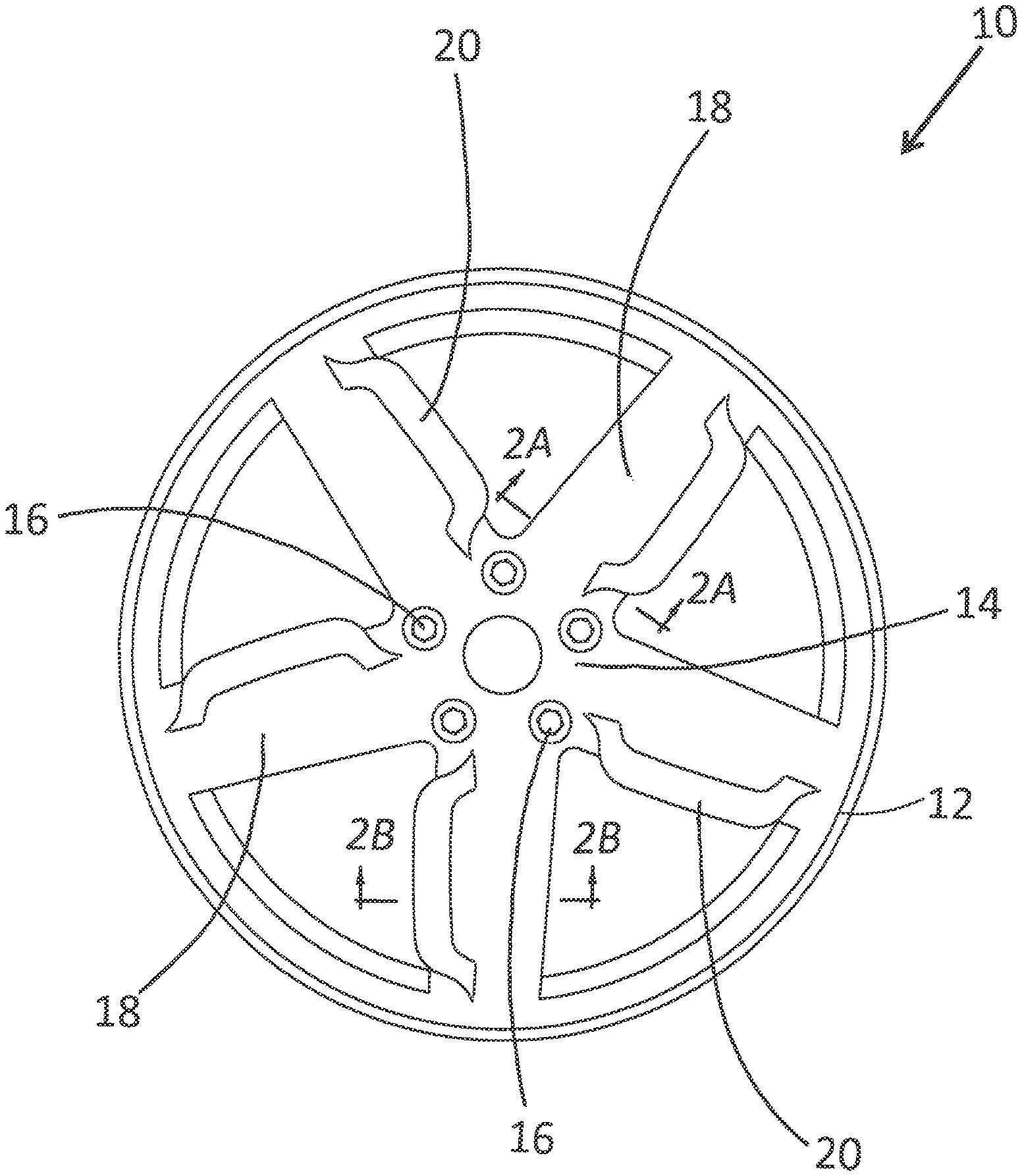

A method and system for improving the strength, functionality and wear-resistance of a composite hybrid wheel is disclosed. Each spoke may define an airfoil shape and have a secondary wing-like extension attached thereto to generate airflow past the vehicle brakes during vehicle operation. Alternatively, the spokes may be shaped in cross-section as either an I-beam or an H-beam configuration. Customer-interchangeable wheel inserts formed from a reinforced polymerized material, such as a long carbon fiber reinforced composite, are strategically attached to one or more of the spokes. The inserts are used to enhance the aesthetic appeal of the wheel, increase its structural integrity and provide easy interchangeability in the event of damage. A faux bead composite lock ring also formed of a reinforced polymerized material such as a long carbon fiber reinforced composite can be attached to the wheel spokes to cover the composite rim flange.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- B60B Class
- 575 Applications Filed
- 431 Patents Issued To-Date
- 74.96 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B60B Class
- 59.77 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 26, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 26, 2031 |
