Flexible polishing apparatus for granulated grains
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Jun 26, 2015
filing date -
Sep 23, 2014
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

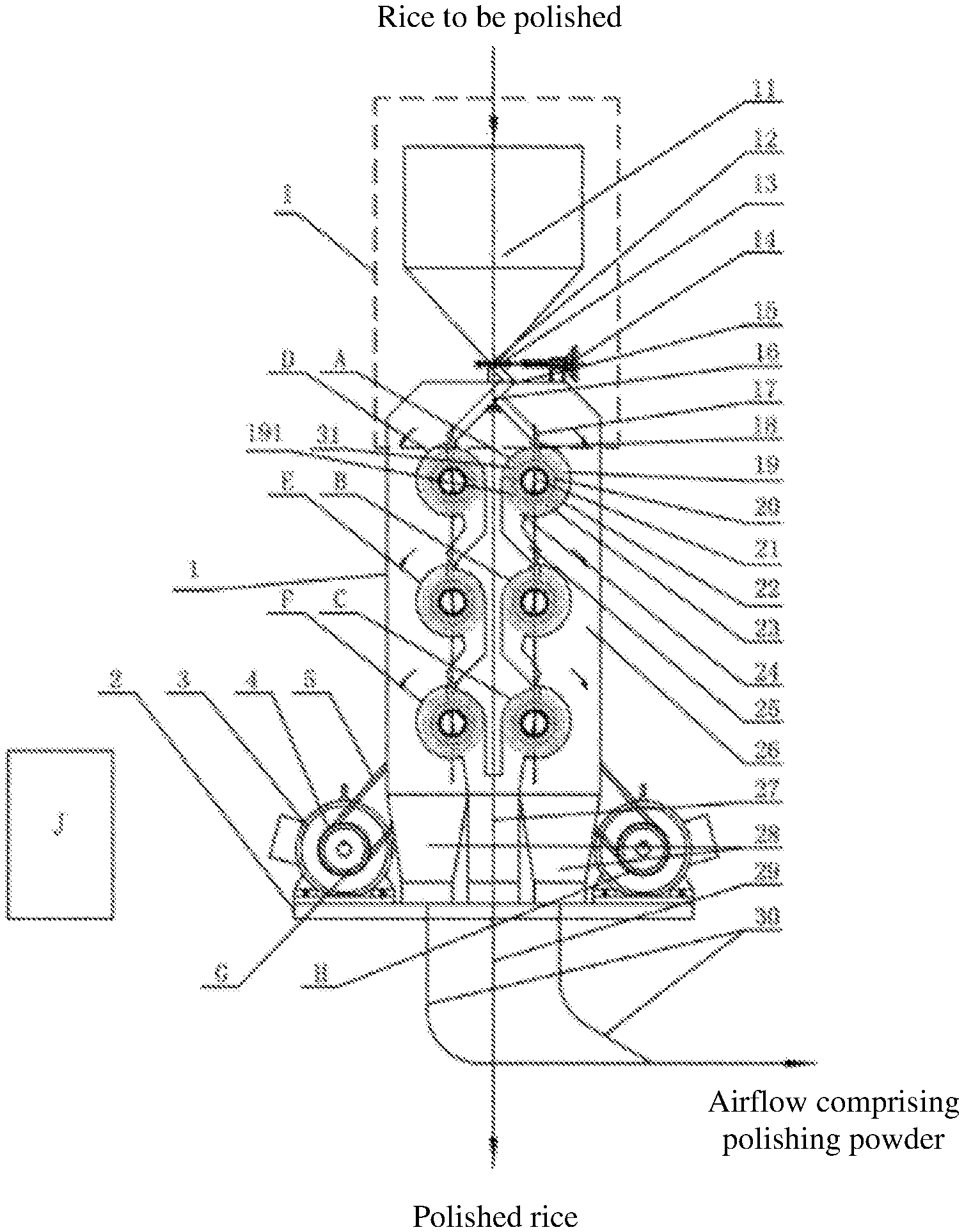

A flexible polishing apparatus for granulated grains is provided. The flexible polishing apparatus includes a housing, a feeding device, at least one flexible polishing unit, a bran discharging device, and a rice outlet. The flexible polishing unit includes a radial gravity self-flow flexible polishing chamber. The feeding device, the flexible polishing chamber and the rice outlet are sequentially arranged from top to bottom along the gravity direction. The flexible polishing apparatus for granulated grains avoids the shear effect of granulated grains in the polishing chamber, improves the flexible friction effect, and greatly reduces the damage to rice in the polishing process while ensuring that rice bran is cleaned and the rice is polished, thereby improving the rate of polished rice and reducing energy consumption.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- B02B Class
- 10 Applications Filed
- 8 Patents Issued To-Date
- 80 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B02B Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 5, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 5, 2031 |
