Aircraft tug with latch and turntable
Number of patents in Portfolio can not be more than 2000
United States of America
Stats
-
N/A
Issued Date -
N/A
app pub date -
Dec 4, 2018
filing date -
Dec 4, 2018
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

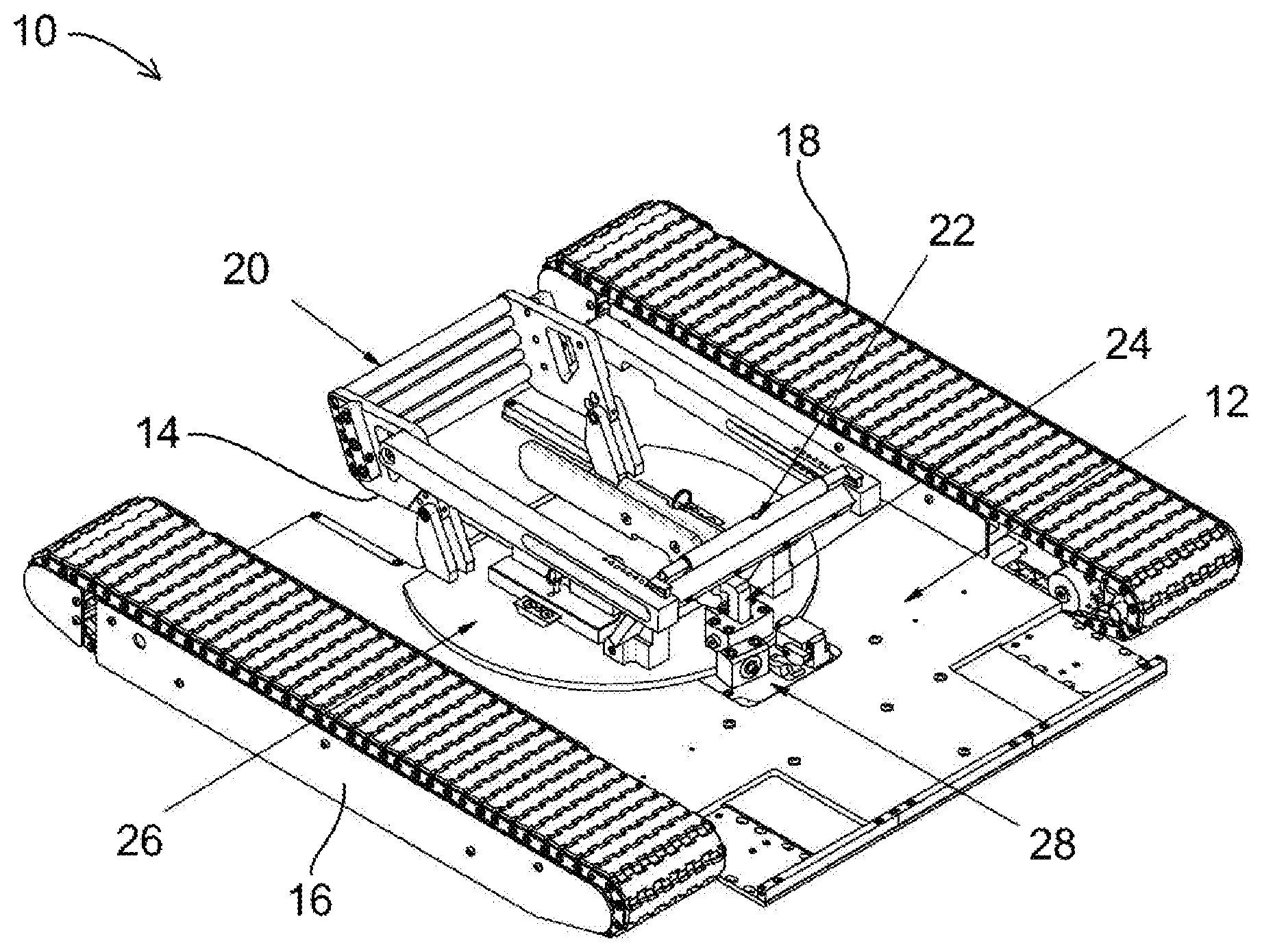

An aircraft tug apparatus for tugging an aircraft by an aircraft tire includes a turntable on a main base portion of the tug, capable of rotational movement relative to the main base portion. A tire cradle assembly on the turntable releasably holds the aircraft tire, and a latch mechanism holds the tire cradle assembly in a position that confines the aircraft tire. A pivoting arm coupled to the main base portion extends under the turntable. The pivoting arm includes a first plunger and a second plunger extending therefrom, with the first plunger coupled to the pivoting arm using a spring assembly allowing it to move up and down relative to the pivoting arm. The spring assembly is configured such that the pivoting arm may move the second plunger to engage the latch mechanism while the first plunger is impinged by the turntable.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
- 2018 Application Filing Year
- B64F Class
- 589 Applications Filed
- 425 Patents Issued To-Date
- 72.16 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B64F Class
- 52.78 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Oct 21, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 21, 2031 |
