Gas generator
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
May 23, 2019
app pub date -
Jul 3, 2017
filing date -
Jul 3, 2017
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

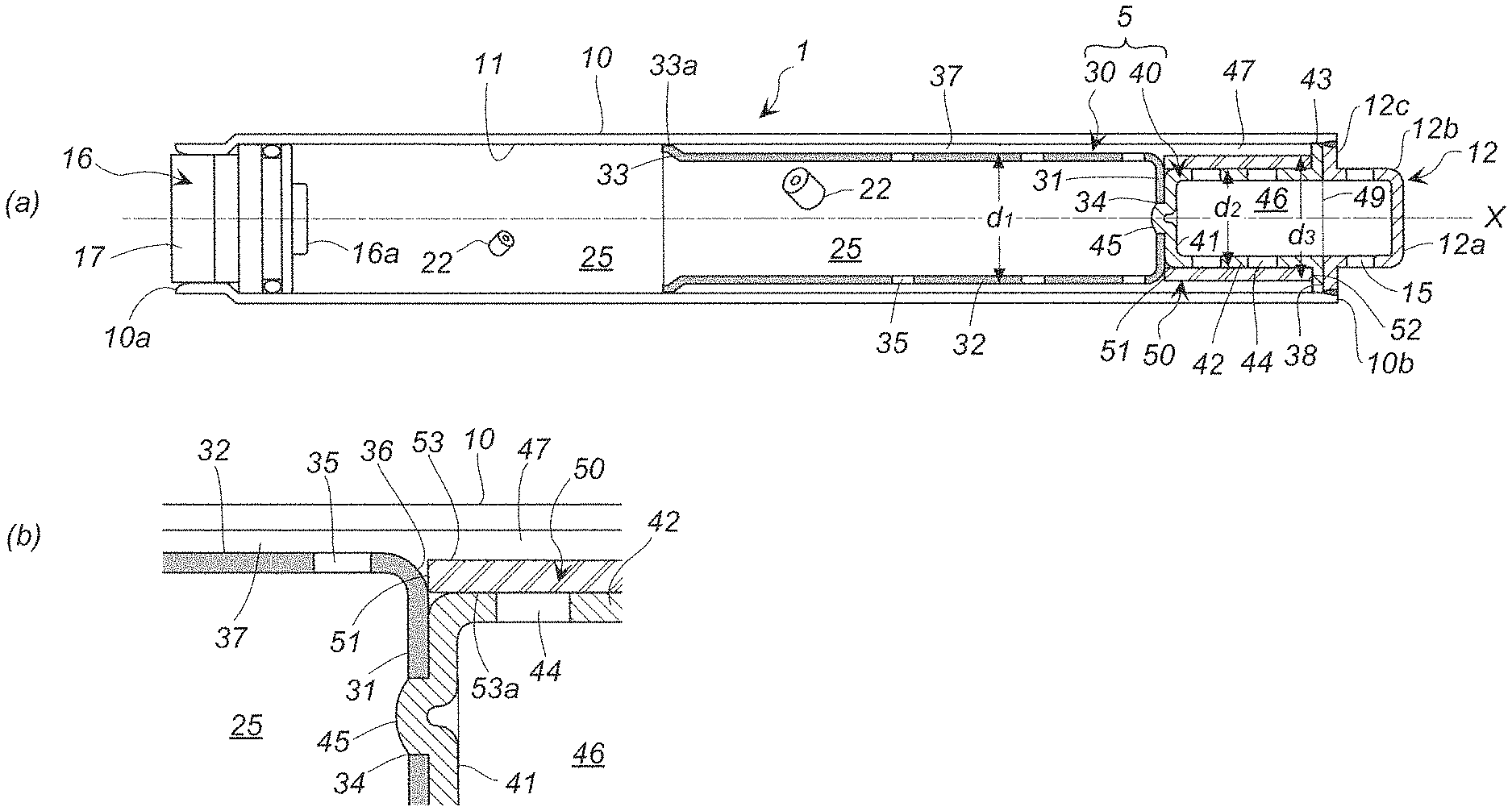

The present invention provides a gas generator, including: a cylindrical housing; an ignition device installed at a first end of the cylindrical housing, and a diffuser portion installed at a second end thereof; a flow channel forming member disposed inside the cylindrical housing and including a partition wall which separates a first chamber from a second chamber; a combustion chamber formed in the first chamber; a discharge passage formed in the second chamber; a first cylindrical space formed on the outside of the first circumferential wall and a first communication hole formed in the first circumferential wall; a second cylindrical space formed on the outside of the second circumferential wall and being in communication with the first cylindrical space, and a second communication hole formed in the second circumferential wall; a cylindrical filter disposed in the second cylindrical space; an outer diameter (d1) of the first circumferential wall, an outer diameter (d2) of the second circumferential wall and an outer diameter (d3) of the cylindrical filter satisfying relationships of d1>d2 and d1≥d3; and between the cylindrical filter and the inner wall surface of the cylindrical housing, the second cylindrical space facing the second communication hole via the cylindrical filter.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- C06D Class
- 21 Applications Filed
- 14 Patents Issued To-Date
- 66.67 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- C06D Class
- 33.33 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Oct 21, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 21, 2031 |
