Camera based headlight control system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 21, 2020
Grant Date -
Aug 30, 2018
app pub date -
Apr 27, 2018
filing date -
Apr 14, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

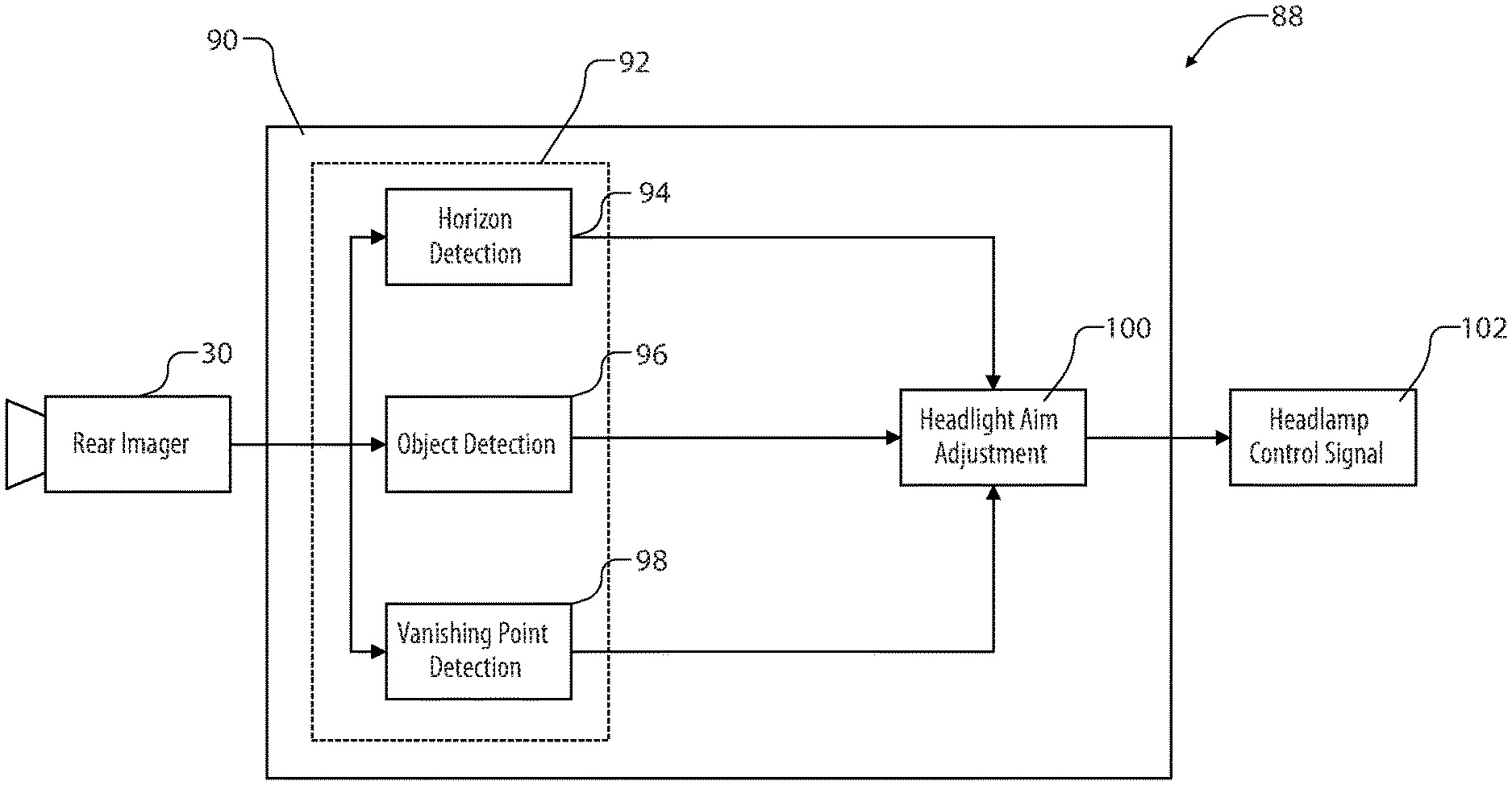

A lighting system for a vehicle is disclosed. The lighting system comprises an imager configured to capture image data in a plurality of image frames in a rearward field of view. The system further comprises at least one headlamp configured to output an emission of light at a plurality of elevations and a controller. The controller is in communication with the imager and the headlamp. The controller is operable to process the image data to identify features in a first frame and a second frame. The controller is further operable to identify a movement of the features from the first frame to the second frame and adjust the elevation of the output emission in response to the movement.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B60Q Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Oct 21, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 21, 2031 |
