Method of warming a mold apparatus
Number of patents in Portfolio can not be more than 2000
United States of America
Stats
-
Mar 31, 2020
Grant Date -
Jan 19, 2017
app pub date -
Sep 29, 2016
filing date -
Sep 29, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

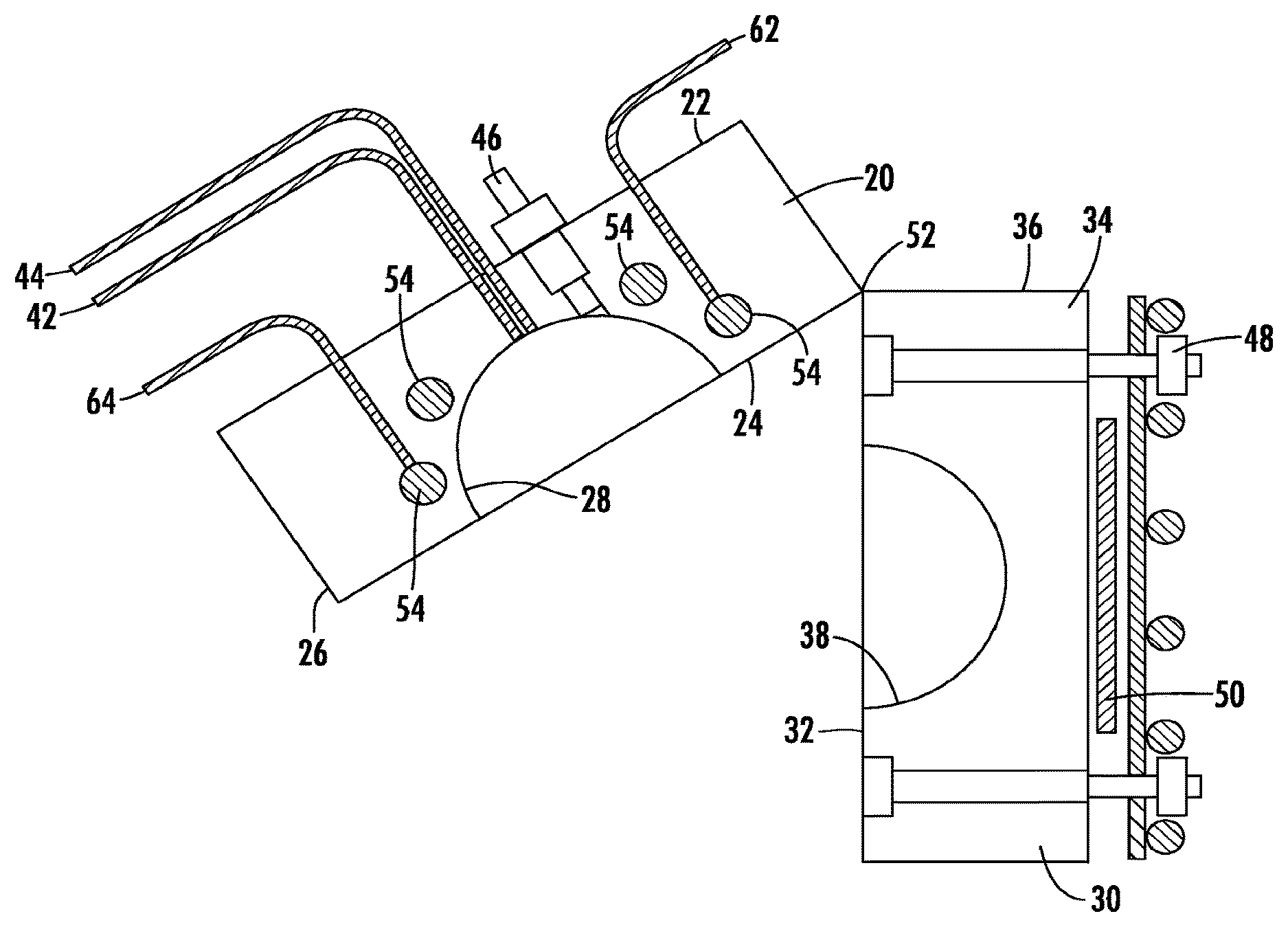

A method of releasing ice from a mold apparatus is disclosed which includes the steps of: providing a mold apparatus having a first mold portion including a concave depression and a liquid circulating manifold and a second mold portion having a concave depression; pivotally coupling to the first mold portion to the second mold portion such that the mold apparatus is operable between an ice forming position and an ice harvesting position; assembling the mold apparatus to the ice forming position such that the concave depressions abut to from a mold cavity; injecting water into the mold cavity; cooling the mold apparatus; forming at least one ice structure within the mold cavity; circulating a warm liquid medium in the liquid circulating manifold to warm the mold apparatus; disassembling the mold apparatus to the ice harvesting position; and releasing the at least one ice structure from the mold apparatus.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- B29C Class
- 6322 Applications Filed
- 4439 Patents Issued To-Date
- 70.22 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- B29C Class
- 59.74 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 30, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 30, 2031 |
