Coating apparatus
Number of patents in Portfolio can not be more than 2000
United States of America
Stats
-
N/A
Issued Date -
N/A
app pub date -
Nov 29, 2016
filing date -
Nov 29, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

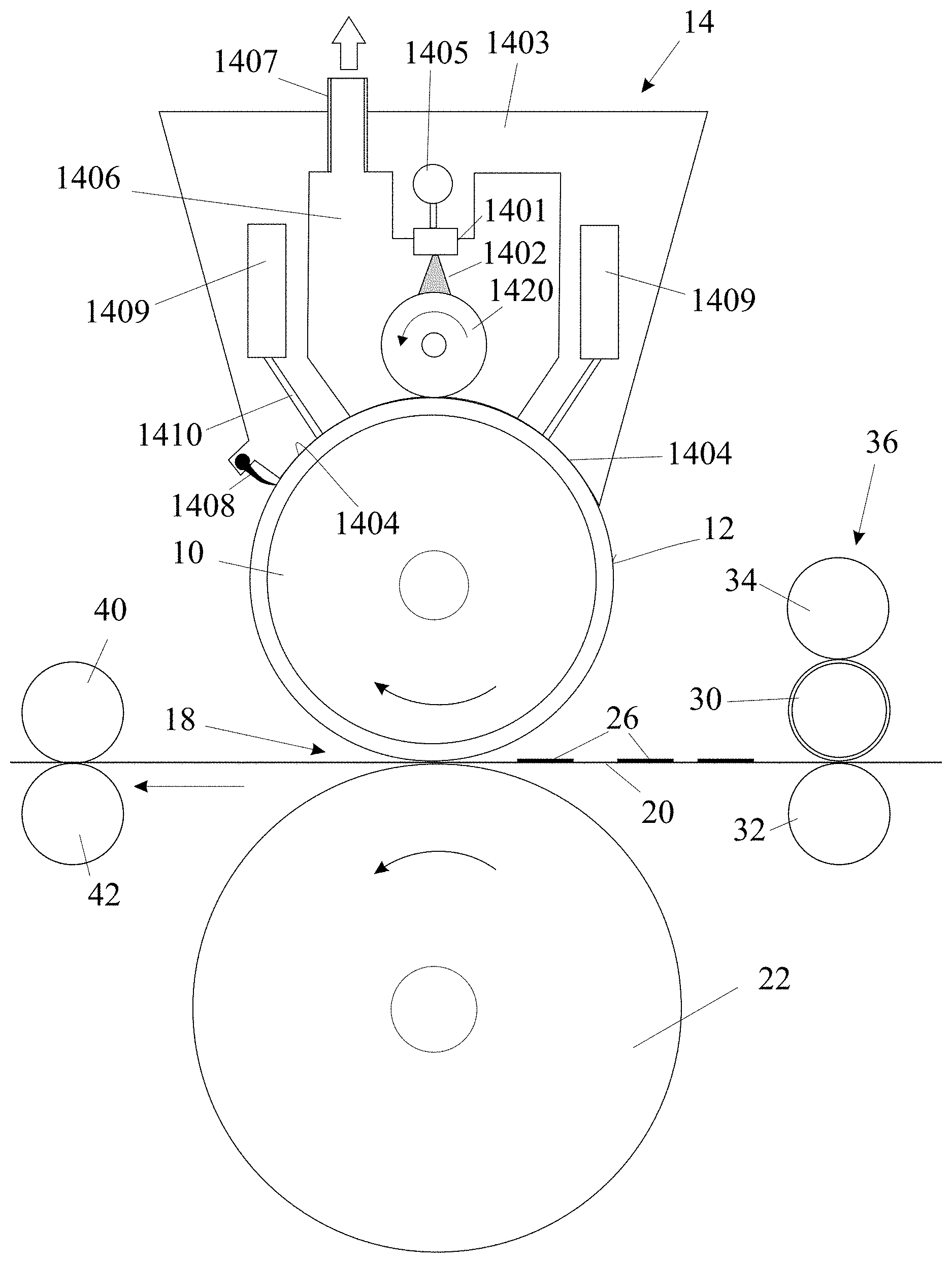

An apparatus for coating a donor surface that is movable relative to the apparatus with a layer of metallic particles or particles having a metal-like appearance and reflectivity, the particles adhering more strongly to the surface than to one another. The apparatus comprises an application device to apply to the donor surface a fluid stream within which the particles are suspended, a housing surrounds the application device forming an interior plenum for confining the fluid stream, the housing prevents egress of particles from a sealing gap defined between the rim of the housing and the surface to be coated, and a suction source connected to the housing to extract from the plenum excess fluid and particles. In operation, the suction source extracts substantially all particles that are not in direct contact with the donor surface, leaving substantially a single particle layer adhering to the donor surface upon exiting the apparatus.
First Claim
Other Claims data not available
Family
International Classification(s)
- B41M:PRINTING, DUPLICATING, MARKING, OR COPYING PROCESS....
- C23C:COATING METALLIC MATERIAL; COATING MATERIAL WITH M....
- B05C:APPARATUS FOR APPLYING LIQUIDS OR OTHER FLUENT MAT....
- B05D:PROCESSES FOR APPLYING LIQUIDS OR OTHER FLUENT MAT....
- B41J:TYPEWRITERS; SELECTIVE PRINTING MECHANISMS, i.e. M....
- B05B:SPRAYING APPARATUS; ATOMISING APPARATUS; NOZZLES
- C09D:COATING COMPOSITIONS, e.g. PAINTS, VARNISHES, LACQ....
- B41F:PRINTING MACHINES OR PRESSES
- B41C:PROCESSES FOR THE MANUFACTURE OR REPRODUCTION OF P....
- B44F:SPECIAL DESIGNS OR PICTURES
- B44C:PRODUCING DECORATIVE EFFECTS
- 2016 Application Filing Year
- B41M Class
- 602 Applications Filed
- 439 Patents Issued To-Date
- 72.93 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 6 Citation Count
- B41M Class
- 61.31 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 10, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 10, 2031 |
