High frequency vibration spindle system
Number of patents in Portfolio can not be more than 2000
United States of America
Stats
-
Feb 25, 2020
Grant Date -
Mar 21, 2019
app pub date -
Feb 18, 2018
filing date -
Feb 18, 2018
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

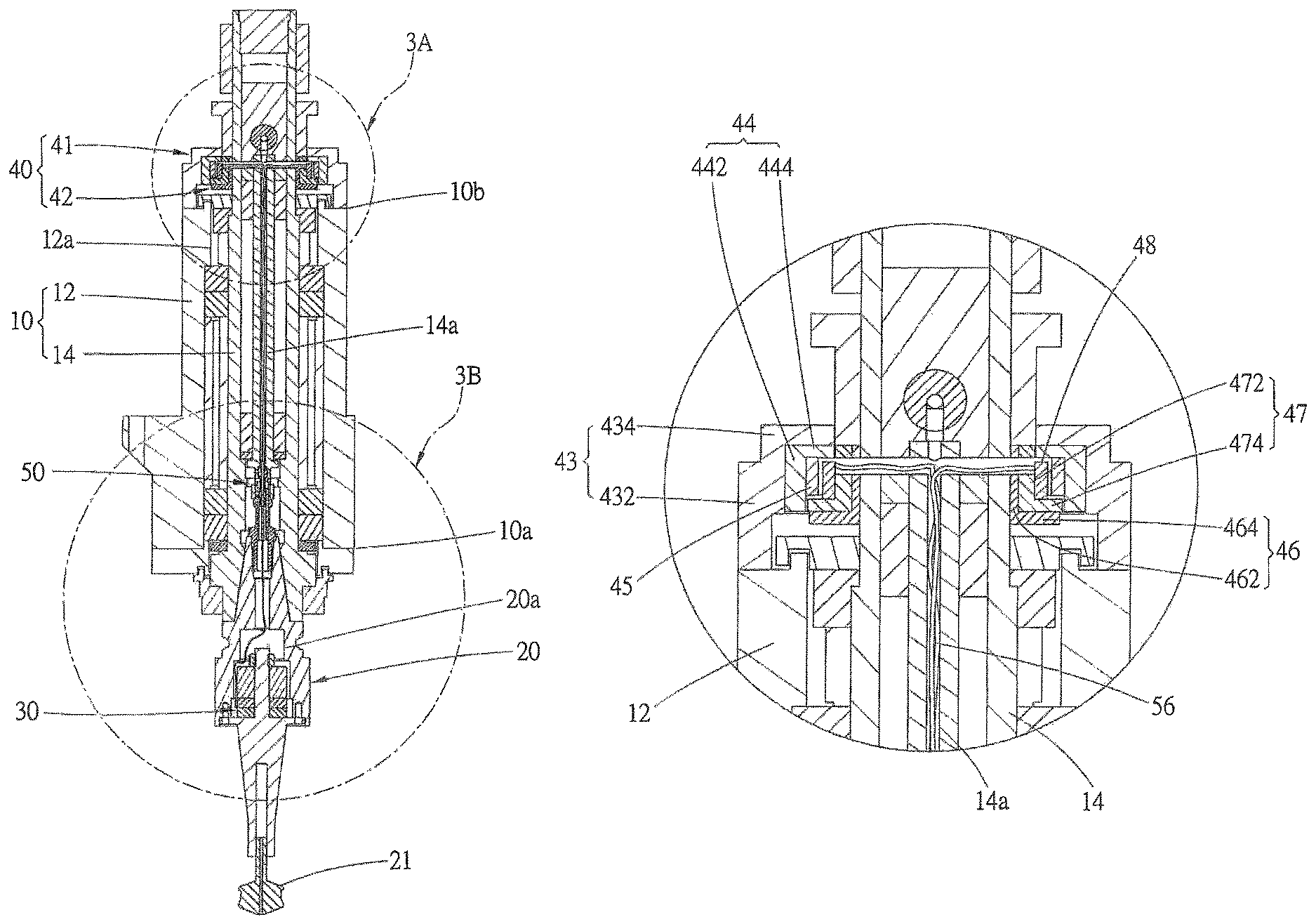

A high frequency vibration spindle system which includes a spindle having a spindle housing and a spindle shaft disposed in the spindle housing; a toolholder, engaged with the spindle and adapted to be engaged with a tool; an electric power transmission device disposed at the front end or a rear end of the spindle, including a first coil and a second coil; the first coil is disposed on the spindle housing, and the second coil is disposed on the spindle shaft to be rotated with the spindle shaft coaxially; the first coil and the second coil are spaced with a gap; the second coil is adapted to receive an electric power from the first coil with a non-contact induction method; and a transducer, adapted to be controlled to vibrate the tool and disposed in the toolholder and electrically connected with the second coil to receive the electric power.
First Claim
Other Claims data not available
Family
International Classification(s)
- B23Q:DETAILS, COMPONENTS, OR ACCESSORIES FOR MACHINE TO....
- B24B:MACHINES, DEVICES, OR PROCESSES FOR GRINDING OR PO....
- B23B:TURNING; BORING
- G01M:TESTING STATIC OR DYNAMIC BALANCE OF MACHINES OR S....
- F16D:COUPLINGS FOR TRANSMITTING ROTATION
- F16F:SPRINGS; SHOCK-ABSORBERS; MEANS FOR DAMPING VIBRAT....
- 2018 Application Filing Year
- B23Q Class
- 722 Applications Filed
- 513 Patents Issued To-Date
- 71.06 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B23Q Class
- 58.38 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 25, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 25, 2031 |
