Matrix power amplifier
Number of patents in Portfolio can not be more than 2000
United States of America
Stats
-
Jan 7, 2020
Grant Date -
Sep 19, 2019
app pub date -
May 31, 2019
filing date -
May 31, 2019
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

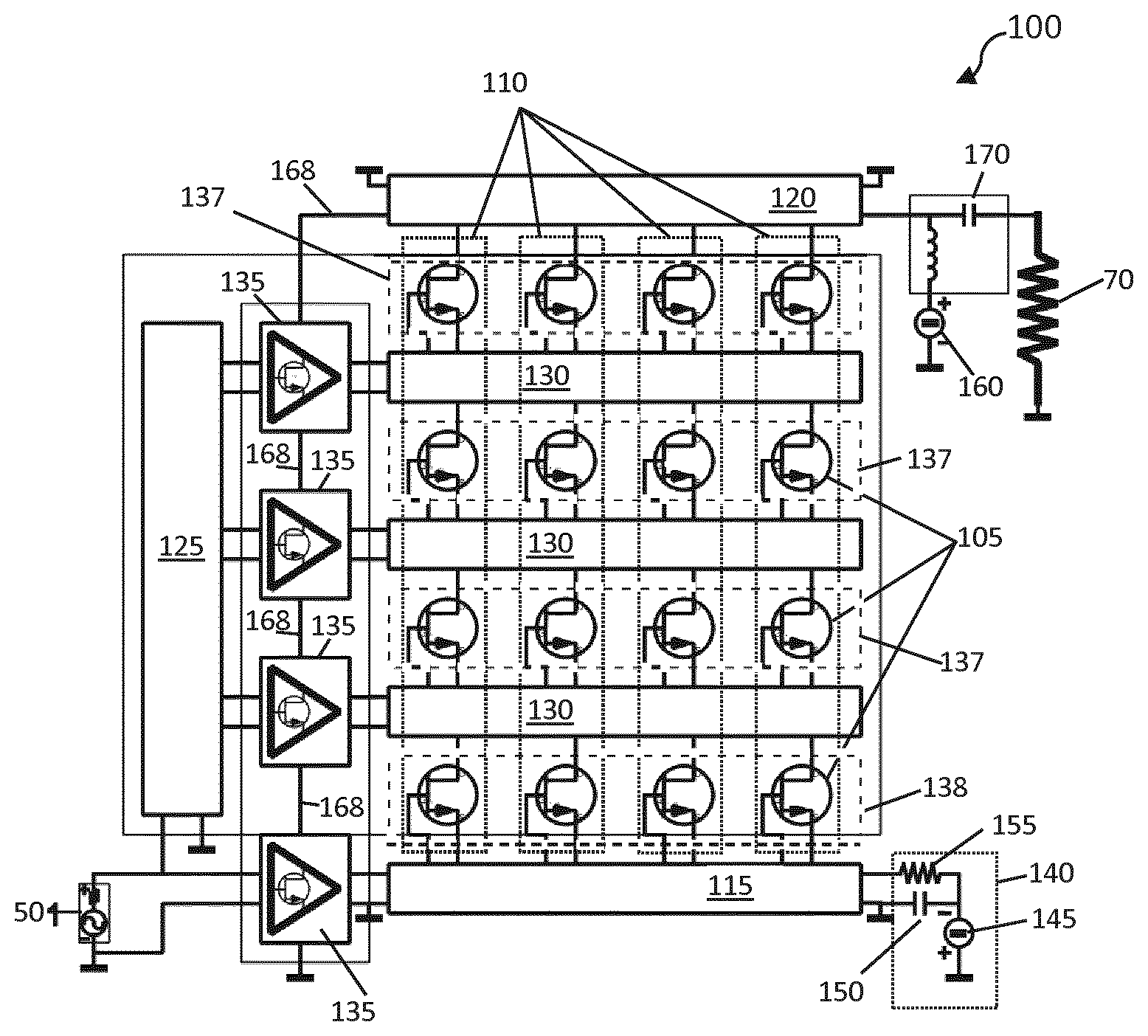

A power amplifier includes a two-dimensional matrix of N×M active cells formed by stacking main terminals of multiple active cells in series. The stacks are coupled in parallel to form the two-dimensional matrix. The power amplifier includes a driver structure to coordinate the driving of the active cells so that the effective output power of the two-dimensional matrix is approximately N×M the output power of each of the active cells.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H01Q Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 7, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 7, 2031 |
