RF generator
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 26, 2019
Grant Date -
Aug 29, 2019
app pub date -
Sep 1, 2017
filing date -
Sep 28, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

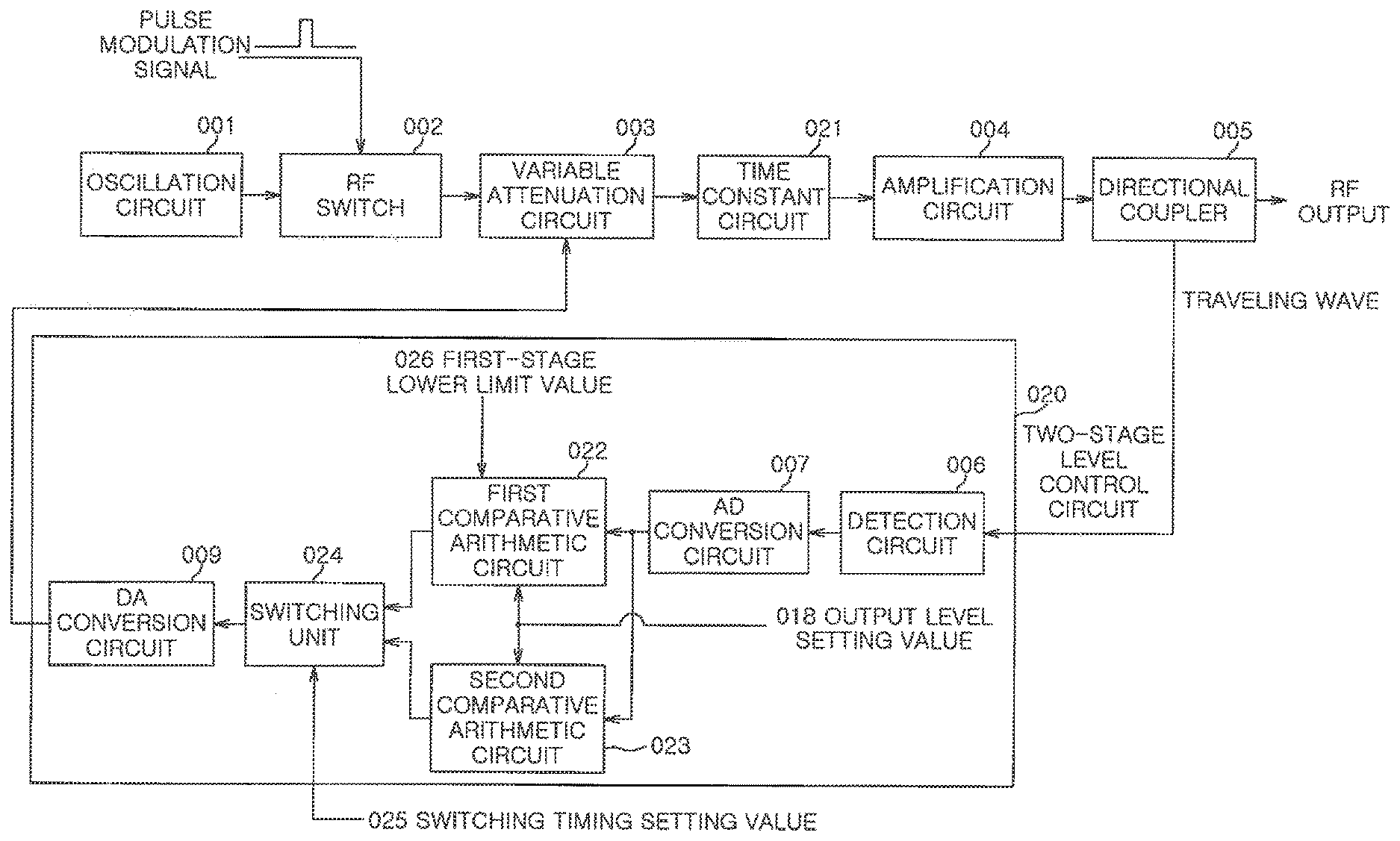

An RF generator includes: a modulation circuit outputting a pulsed RF signal; a variable attenuation circuit adjusting the level of the pulsed RF signal; an output power detecting unit detecting an output power value of the power output from the device; a first comparative arithmetic circuit outputting a first level control signal for controlling the level of the adjusted pulsed RF signal on the basis of a first detected voltage value and a set voltage value set in advance; a second comparative arithmetic circuit outputting a second level control signal for controlling the level of the adjusted pulsed RF signal on the basis of a second detected voltage value and the set voltage value; and a switching circuit switching between the value of the first level control signal and the value of the second level control signal depending on a switching timing setting value.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- H03K Class
- 27.32 % this patent is cited more than
- 6 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 26, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 26, 2031 |
