Method for decorating substrates and decorated substrate
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 19, 2019
Grant Date -
Aug 25, 2016
app pub date -
Oct 1, 2014
filing date -
Oct 15, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

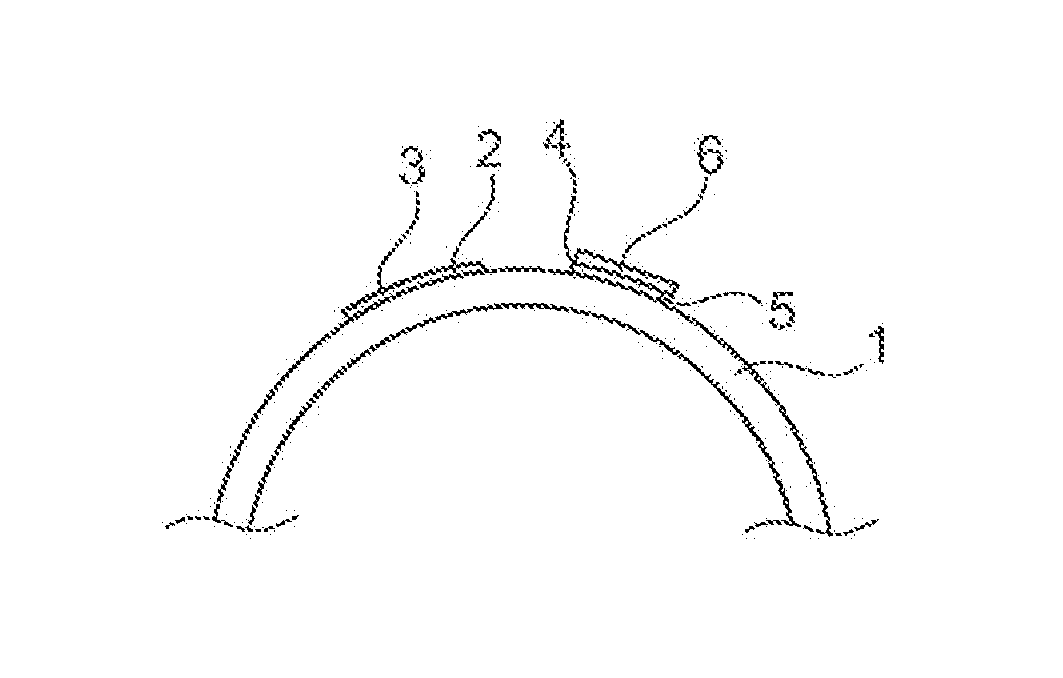

A method for decorating substrates, in particular packaging, comprising the steps: printing at least one first decorative pattern (2) on the substrate using a first radiation-curable, preferably UV-curable, printing ink composition (3); printing at least one second decorative pattern (4), using a second radiation-curable, preferably UV-curable, printing ink composition (5), on at least part of the substrate (1) in a region near to the first pattern (2), chronologically before, after, or during the printing of the first pattern; radiation curing of the first and second printing ink compositions (3, 5), preferably directly after the printing of each pattern, the radiation-cured second printing ink composition having a lower glass transition temperature than the radiation-cured first printing ink composition; application of a decorative coating to the second pattern by means of a hot foil stamping process, a hot stamping foil comprising a decorative coating material being pressed against the printed substrate by means of a stamping tool under the application of heat and pressure such that the decorative coating adheres to the second pattern but not to the first pattern.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- B41M Class
- 375 Applications Filed
- 345 Patents Issued To-Date
- 92 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B41M Class
- 0 % this patent is cited more than
- 6 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 19, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 19, 2031 |
