Triboelectric generation device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 5, 2019
Grant Date -
Jan 11, 2018
app pub date -
Nov 27, 2015
filing date -
Dec 3, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

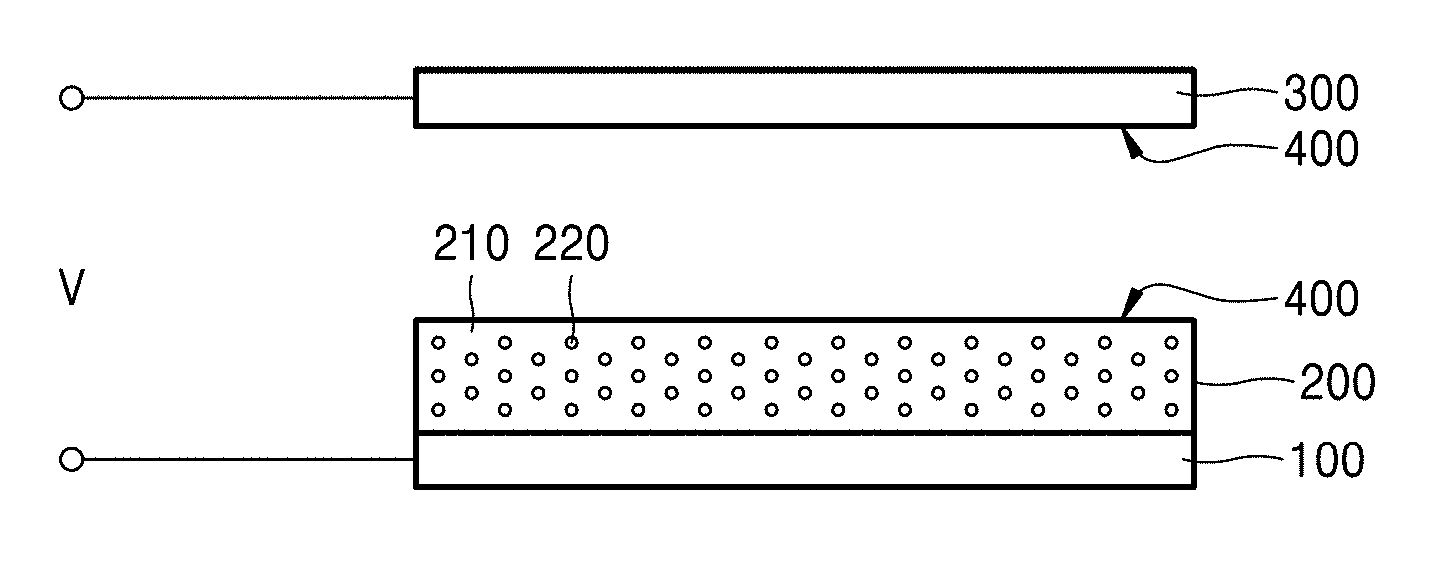

The present disclosure enables materials of a triboelectric charging member to exhibit a characteristic of increased surface charge density, thereby improving output of a triboelectric generating device. Accordingly, the present disclosure provides a triboelectric generating device showing improved output without increasing a size of the triboelectric generating device or without increasing amounts of materials required for the triboelectric generating device. An embodiment of a triboelectric generating device provided according to a first aspect of the present disclosure includes a first electrode; a first charging layer formed on the first electrode; and a second electrode disposed on the first charging layer, wherein the first charging layer and the second electrode are arranged such that an interface between the first charging layer and the second electrode forms a frictional interface, and the first charging layer includes a ferroelectric polymer matrix and ferroelectric inorganic particles dispersed in the ferroelectric polymer matrix.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- H02N Class
- 351 Applications Filed
- 274 Patents Issued To-Date
- 78.07 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- H02N Class
- 26.29 % this patent is cited more than
- 6 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 5, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 5, 2031 |
